Triconex PI3381 Pulse Input Module | 3381 Series High Accuracy Speed I/O

Description

Product Overview

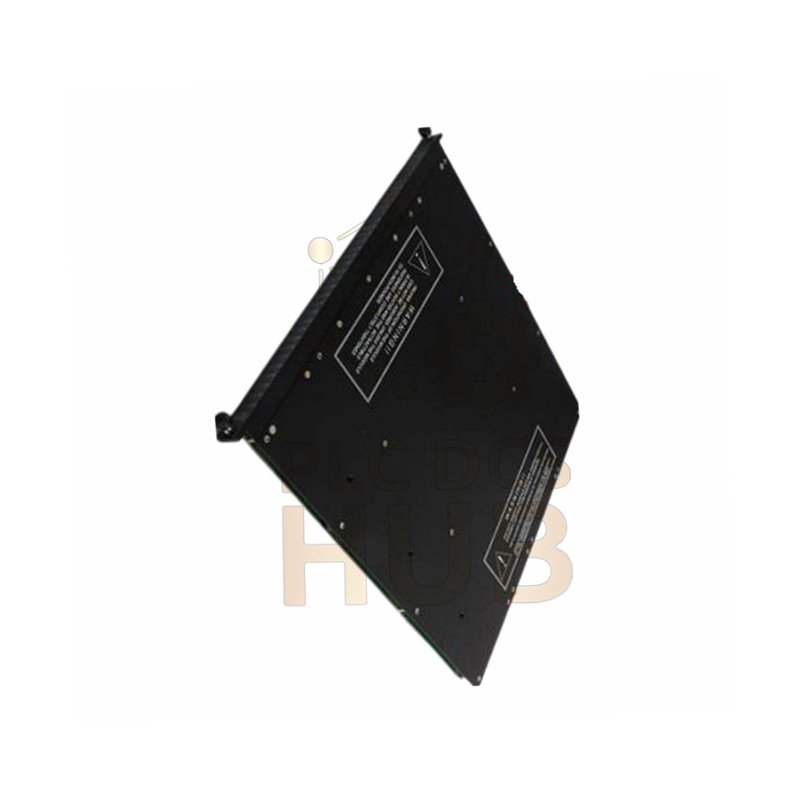

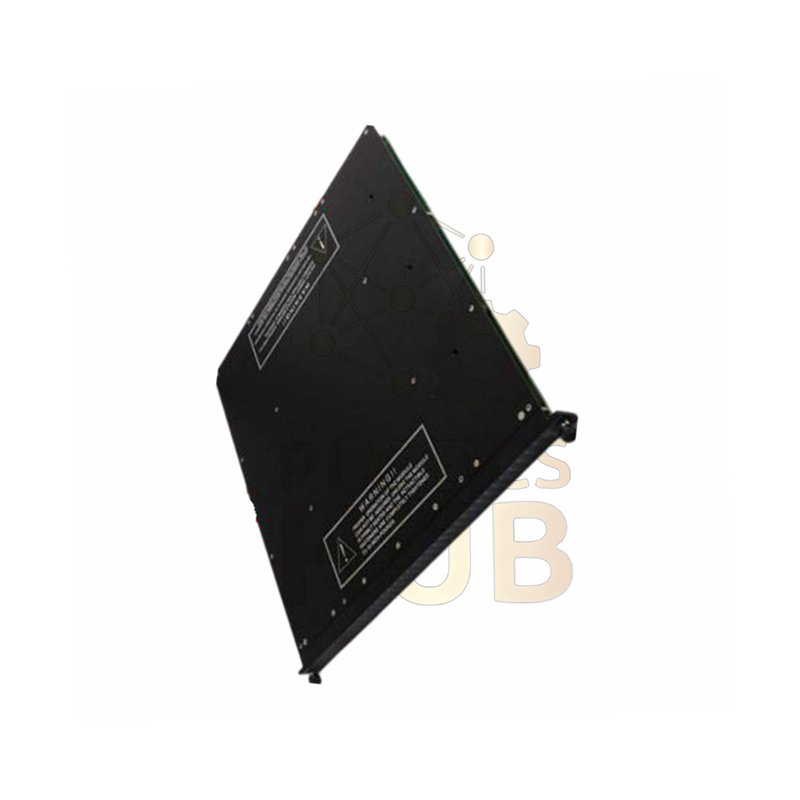

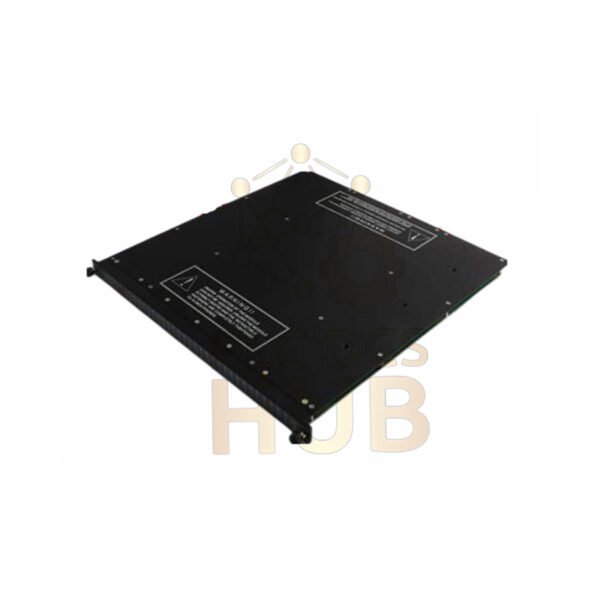

Triconex PI3381 is a precision pulse input module for speed and position measurement.

The module supports high-speed signals with strong noise immunity.

It fits demanding safety and machinery protection systems.

Stable performance ensures accurate motion feedback.

Main Advantages

• Six isolated channels improve signal integrity.
• Differential inputs reduce electrical noise.
• Wide frequency range supports slow and fast shafts.
• High resolution enables precise speed control.
• Advanced diagnostics detect signal faults early.

Core Technical Data

• Brand: Invensys Triconex
• Model: PI3381
• Part number reference: 3381
• Series: Triconex Safety I/O
• Module type: Pulse Input
• Input channels: 6, channel-isolated
• Input mode: Differential
• Ground reference: Commoned ground
• Supported sensors: Magnetic, active, open collector
• Speed range: 0 to 32,000 RPM
• Frequency range: 0.5 Hz to 32 kHz
• Maximum voltage: ±33 VDC
• Resolution: 24-bit measurement
• Duty cycle tolerance: 20% to 80%
• Minimum pulse width: 10 microseconds

Extended Measurement Performance

• Low-speed sensitivity: 0.5 Hz stable tracking
• High-speed accuracy: ±0.01% at high frequency
• Low-frequency accuracy: ±0.1% below 2 kHz
• Gear teeth support: 1 to 255 teeth
• Slew rate handling: 4,000 RPM per second
• Update rate: 20 ms scan refresh

Electrical Isolation and Protection

• Functional to earth isolation: 500 VDC minimum
• Logic to earth isolation: 800 VDC minimum
• Baseplate resistor options improve signal matching.
• Designed for harsh electrical environments.

Diagnostics and Reliability

• Precision reference test verifies accuracy.
• Continuous signal health monitoring.
• Early warning for wiring or sensor issues.
• Supports predictive maintenance strategies.

Installation Notes

• Install into compatible Triconex chassis.
• Configure resistors at the baseplate level.
• Use shielded cables for best performance.
• Verify sensor polarity before power-up.

Typical Industrial Applications

• Turbine speed monitoring systems.
• Compressor overspeed protection.
• Rotating equipment supervision.
• Critical shaft speed measurement.

Package and Logistics

• One Triconex PI3381 module.
• Industrial-grade protective packaging.
• Traceable inspection marking.

Warranty and Delivery

• 12-month warranty from shipment date.
• Fast shipping via FedEx, UPS, DHL.
• Worldwide delivery supported.

Professional FAQ

• Why choose differential inputs for speed signals?
• Differential signals reduce noise in long cable runs.
• How does gear tooth count affect accuracy?
• More teeth improve resolution at low speed.
• What causes unstable readings at low RPM?
• Poor sensor gap or weak signal strength.
• Is the module suitable for high vibration areas?
• Yes, when sensors are firmly mounted.
• How can signal life be extended?
• Use proper grounding and shielded wiring.
