Product Description

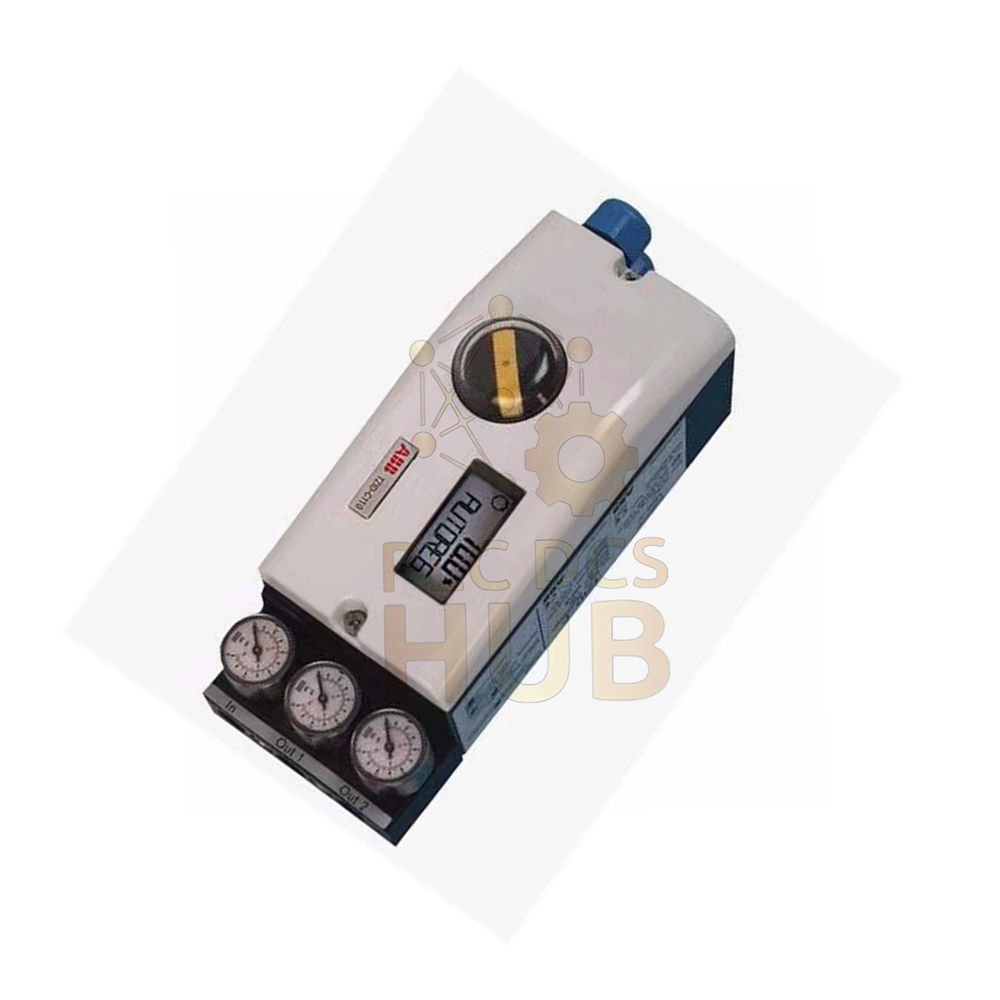

The ABB V18345-1017121001 is a TZIDC electro-pneumatic positioner. It controls valves with high precision. This device uses a 4-20 mA input signal. The positioner works with linear or rotary actuators. Made for harsh industrial environments.
What This Positioner Does
– Converts electrical signal to pneumatic pressure – Positions valve actuators accurately – Works in fail-safe or fail-freeze mode – Consumes very little air (<0.03 kg/h) – Works with supply pressure from 1.4 to 6 bar
Key Features at a Glance
– Intelligent configurable design – Built-in indicator and operator panel – IP65 / NEMA 4X aluminum housing – ATEX Ex ia IIC T6 explosion protection – Single acting with fail freeze on power loss – Two-wire 4-20 mA technology – Very low air consumption
Technical Specifications
– Brand: ABB – Model number: V18345-1017121001 – Series: TZIDC – Product type: Electro-Pneumatic Positioner – Input signal: 4-20 mA (two-wire) – Supply pressure: 1.4 to 6 bar (20 to 90 psi) – Air consumption: Less than 0.03 kg/h (0.015 scfm) – Housing material: Aluminum, varnished – Protection class: IP65 / NEMA 4X – Color: Black RAL 9005 matte, cover Pantone 420 – Pneumatic connections: 1/4-18 NPT or G 1/4 – Cable connection: 1/2-14 NPT thread – Weight: 1.7 kg
Model Number Breakdown
V18345-1017121001 │ │ │ │ │ │ │ │ └─ 1 = Mechanical kit with SJ2-SN proximity switches │ │ │ │ │ │ │ └─── 0 = Optional kit for digital feedback │ │ │ │ │ │ └───── 0 = No analog/digital feedback module │ │ │ │ │ └─────── 2 = 1/4-18 NPT air, 1/2-14 NPT cable │ │ │ │ └───────── 1 = Single acting, fail freeze │ │ │ └─────────── 7 = ATEX Ex ia IIC T6 │ │ └───────────── 1 = 4-20 mA with LKS adapter plug │ └─────────────── 0 = Alu case, IP65, for linear/rotary └────────────────────── V18345 = TZIDC series
Housing and Mounting
– Case made of aluminum with electrostatic varnish – Epoxy resin, stove-hardened finish – IP65 protection against dust and water jets – Mounts to linear actuators (DIN/IEC 534 / NAMUR) – Mounts to rotary actuators (VDI/VDE 3845) – Ready for integral mounting
Explosion Protection
– ATEX certification: Ex II 2 G – Protection type: EEx ia IIC T6 – Safe for hazardous gas environments – Intrinsically safe design
Fail Safe Behavior (Power Failure)
– Single acting output – Fail freeze mode – holds last position – No air supply needed to maintain position
Digital Input Specifications
– Logical state “0”: 0 to 5 V DC – Logical state “1”: 11 to 30 V DC – Use for external control signals
Digital Output (NAMUR per DIN 19234)
– Supply voltage: 5 to 11 V DC – Compatible with standard NAMUR sensors – Use for position feedback
Optional Position Feedback
– Mechanical kit for digital feedback included – Uses proximity switches SJ2-SN (NC or logical 1) – No analog feedback module on this version
Installation Guide
– Mount on linear or rotary actuator first – Connect air supply (1.4 to 6 bar clean air) – Wire 4-20 mA input signal to terminals – Connect optional digital I/O as needed – Set fail freeze behavior during config – Keep cable bend radius generous – Use 1/2-14 NPT fitting for cable entry
Debugging & Maintenance
– Use built-in operator panel for setup – Check indicator for real-time position – Low air consumption means less maintenance – No tools needed for configuration – Monitor digital output for position confirmation
Compatibility
– Works with linear actuators (DIN/IEC 534 / NAMUR) – Works with rotary actuators (VDI/VDE 3845) – Accepts 4-20 mA from any standard controller – Use with ABB or third-party valves
What’s in the Box
– 1 x V18345 TZIDC positioner – 1 x Mechanical kit with SJ2-SN switches – No mounting bracket included – No air fittings included – Manual available online
Warranty & Shipping
– 12 months warranty from purchase date – Covers manufacturing defects only – Shipping methods: FedEx, UPS, DHL – Fast worldwide delivery available
Typical Applications
– Chemical plant valve control – Oil and gas pipelines – Power plant steam valves – Hazardous area installations (ATEX Zone 1, 2) – Food and beverage processing
Diagnostic Capabilities
– Built-in position indicator – Digital output confirms valve position – Operator panel shows configuration status – Monitor input signal for loop health
FAQ – Frequently Asked Questions
Q1: What does “fail freeze” mean on power loss?
A: Fail freeze holds the valve in its last position. The valve will not move until power returns.
Q2: Can I use this positioner with 24V DC digital inputs?
A: Yes. 24V DC is within the “logical 1” range of 11-30V DC. It works perfectly.
Q3: From experience, what causes most calibration issues?
A: Dirty air supply. Oil or water in the air line blocks internal passages. Install a good air filter before the positioner.
Q4: Why does my positioner show wrong position on the indicator?
A: You need to run auto-calibration. Use the operator panel to start the auto-calibrate routine. It takes 2 minutes.
Q5: Is this positioner safe for Zone 0 hazardous areas?
A: No. ATEX Ex ia IIC T6 covers Zone 1 and Zone 2 only. For Zone 0, choose a different protection type.
Q6: Does the 12 month warranty cover water damage?
A: No. IP65 means it resists water jets. Submersion or pressure washing voids the warranty.
Q7: Which shipping method is fastest for emergency replacements?
A: DHL Express Worldwide for international. FedEx Priority for North America. UPS Next Day for Europe.
Q8: Can I convert this from single acting to double acting?
A: No. This V18345-1017121001 is fixed as single acting. Order a different model for double acting.
Selection Guide
– Step 1: Check your actuator type (linear or rotary) – Step 2: Verify supply pressure (needs 1.4 to 6 bar) – Step 3: Confirm fail behavior required (fail freeze vs fail close) – Step 4: Check hazardous area classification (ATEX Zone 1 or 2) – Step 5: Decide if you need analog position feedback (this has none) – Pro tip: Buy an LKS adapter for easy configuration. It connects to your laptop and speeds up setup by 10x.
Need help selecting the right positioner? Contact our team.
