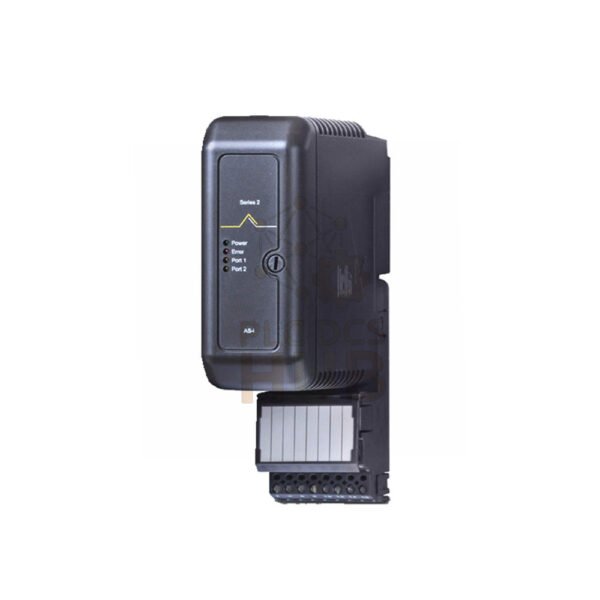

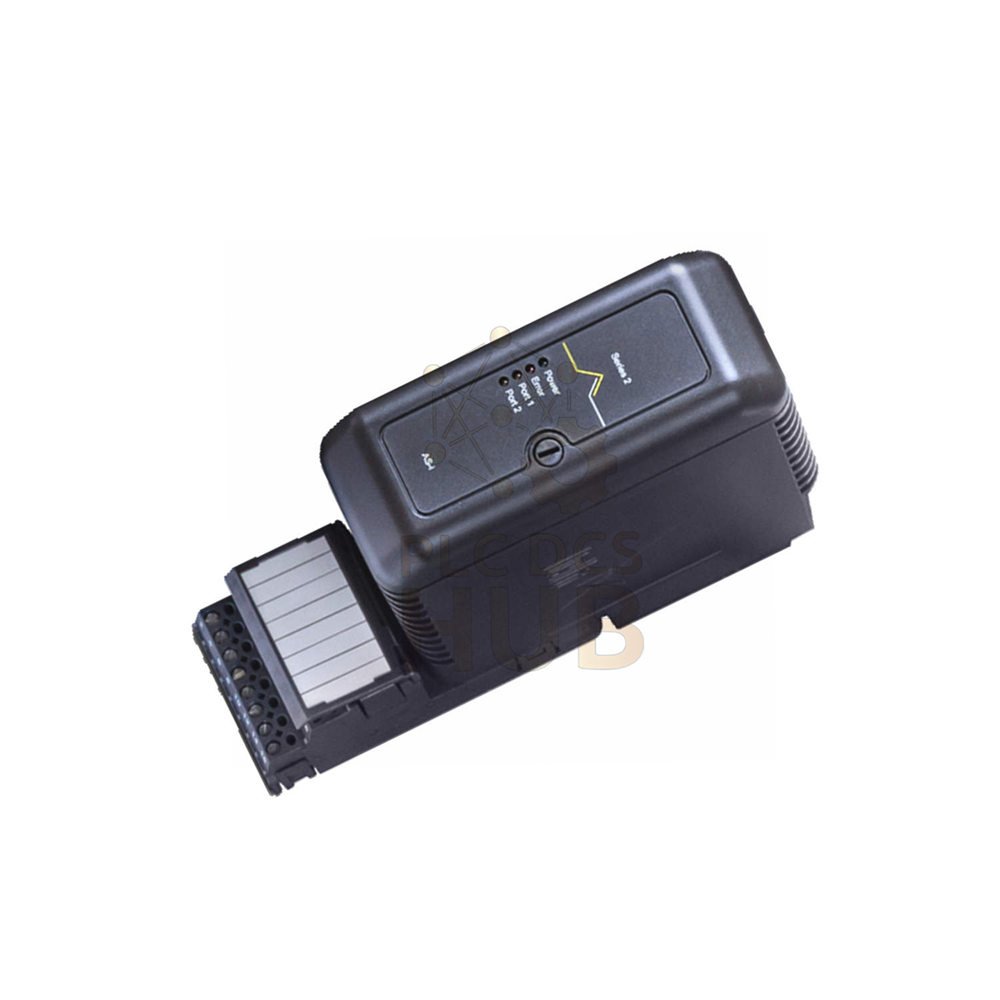

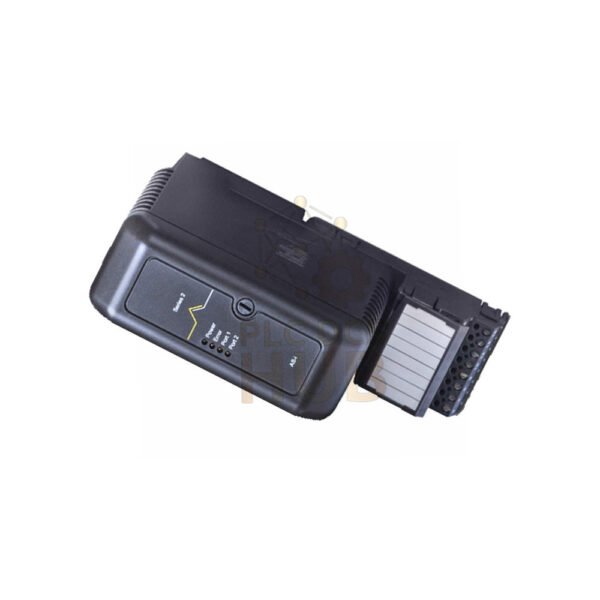

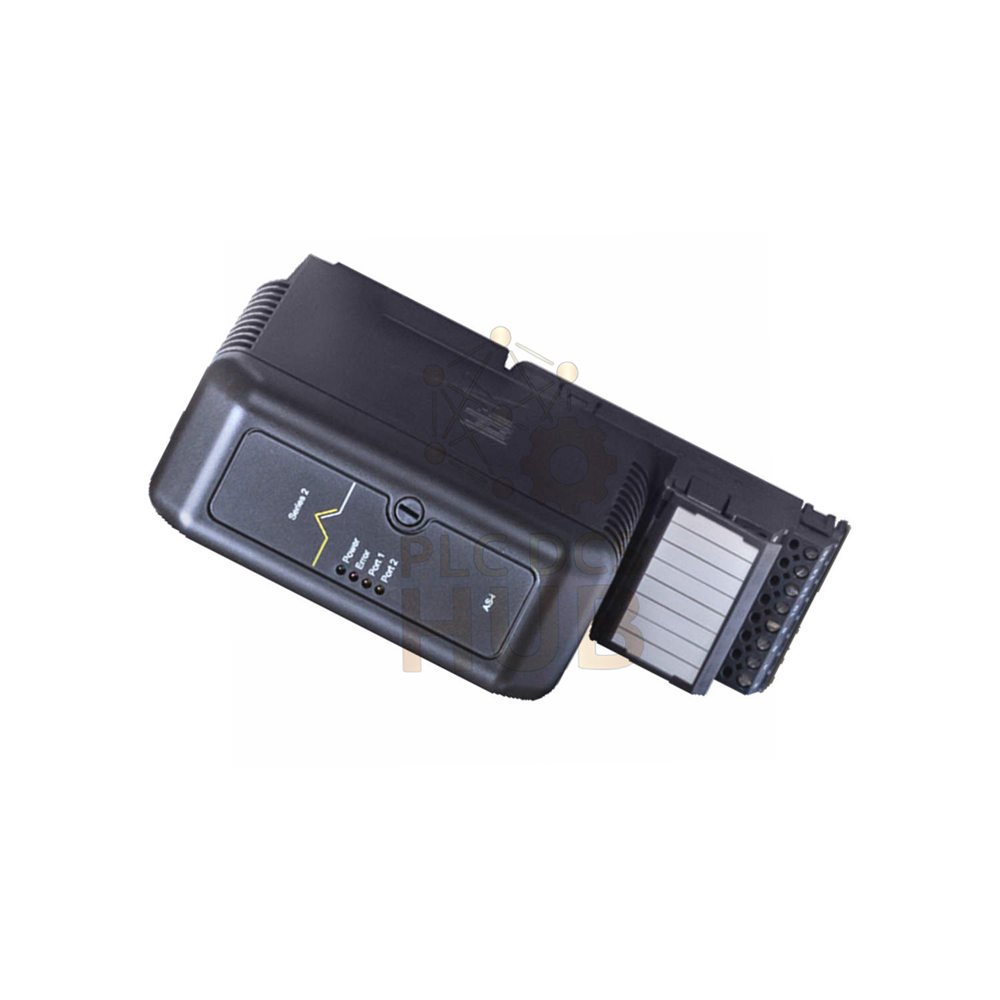

VE4036P2 Emerson DeltaV M-Series Serial Interface Card

Description

Product Introduction

• VE4036P2 KJ3241X1-BA1+KJ3241X1-EA1 is a redundant serial communication module from Emerson.
• Designed for the DeltaV M-Series automation platform.
• Provides stable communication between controllers and field devices.
• Supports several serial protocols and flexible configuration.
• Built for industrial networks that require stable data transfer.
• Redundant design improves system reliability and uptime.

Main Product Highlights

• Dual serial ports increase device connectivity.
• Redundant interface architecture improves system safety.
• Wide baud rate range supports many industrial protocols.
• Electrical isolation protects the control system.
• Strong resistance to vibration and electrical noise.
• Fast configuration inside DeltaV engineering tools.
• Stable communication for long-term industrial operation.

Core Hardware Structure

• Module Identification
  • Brand: Emerson
  • Series: DeltaV M-Series
  • Primary Model: VE4036P2
  • Interface Card: KJ3241X1-BA1
  • Redundancy Adapter: KJ3241X1-EA1
• Port Architecture
  • Total serial ports: 2
  • Data sets supported: 32
  • Data sets per port: 16
• Serial Interface Types
  • RS232 communication
  • RS422 / RS485 half duplex
  • RS422 / RS485 full duplex
• Isolation Design
  • Each port electrically isolated
  • Isolation between ports
  • External grounding recommended

Communication Configuration Tree

• Communication Parameters
  • Baud Rate Options
    • 300
    • 1200
    • 2400
    • 4800
    • 9600
    • 19200
    • 38400
    • 57600
    • 115200
  • Parity Mode
    • Even
    • Odd
    • None
  • Data Format
    • 7 or 8 data bits
    • 1 or 2 stop bits
  • Error Handling
    • Retry count adjustable: 0–255
    • Message timeout: 100–25500 ms
    • Transmit delay: 0–25500 ms
  • Startup Behavior
    • Optional output transmission during initialization
    • Configured through DeltaV Explorer

Environmental Performance

• Operating Temperature
  • -40°C to 70°C
• Storage Temperature
  • -40°C to 85°C
• Humidity Range
  • 5% to 95% non-condensing
• Protection Rating
  • IP20 enclosure protection
• Shock Resistance
  • 10 g half-sine wave
  • Duration 11 ms
• Vibration Resistance
  • 3 mm peak-to-peak from 5–13 Hz
  • 0.5 g from 13–150 Hz
• Air Contaminant Standard
  • ISA-S71.04-1985 Class G3

Additional Technical Characteristics

• High stability communication interface.
• Industrial grade circuit protection.
• Designed for continuous 24/7 plant operation.
• Optimized signal processing reduces data loss.
• Supports long distance serial communication networks.

Typical Application Areas

• Oil and gas control systems
• Power generation plants
• Chemical production automation
• Industrial manufacturing lines
• Process monitoring systems

Shipping Methods

• FedEx international priority shipping
• UPS global express delivery
• DHL worldwide logistics service
• Professional industrial packaging included

Warranty Policy

• 12-month warranty after delivery.
• Covers manufacturing defects.
• Technical assistance available during warranty.

Professional FAQ

• What devices can connect to this serial interface card?
• PLC systems, analyzers, meters, and other serial devices can connect.
• How many field devices can be configured?
• Up to thirty-two communication data sets can be configured.
• What is the benefit of redundant interface design?
• Redundancy improves system availability and prevents communication failure.
• What should engineers check before installation?
• Confirm protocol type, baud rate, and cable wiring.
• How to select the correct serial interface module?
• Check controller platform, port type, and required communication protocol.
