Woodward 5464-545 Power Control Unit | 15kW 85-265V AC Industrial Drive

Description

Product Overview

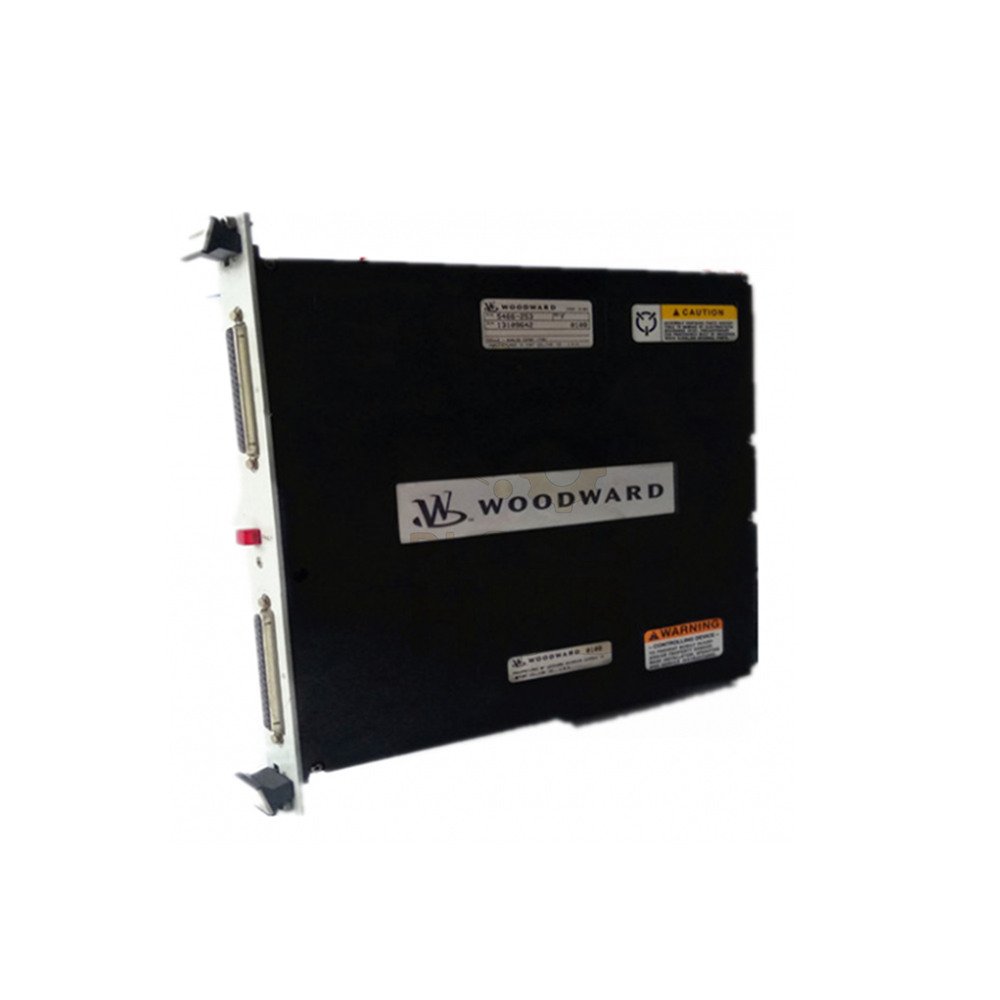

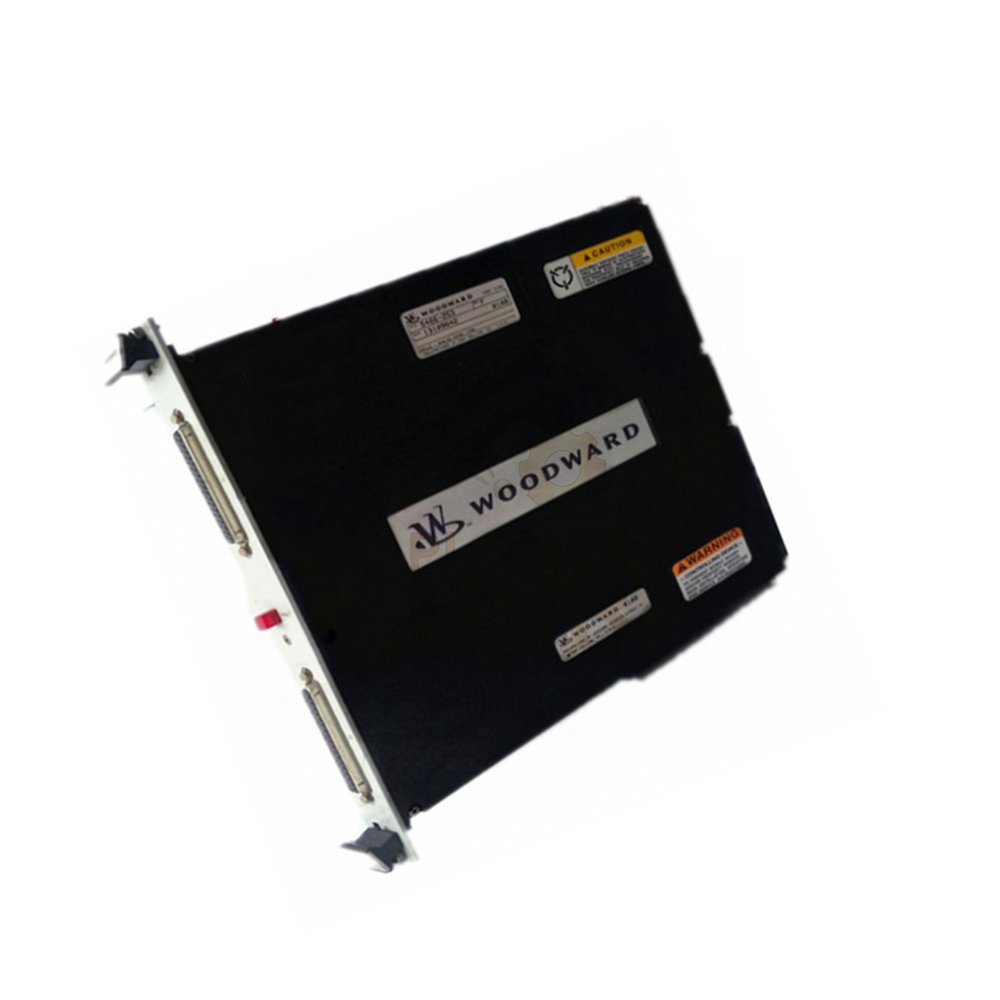

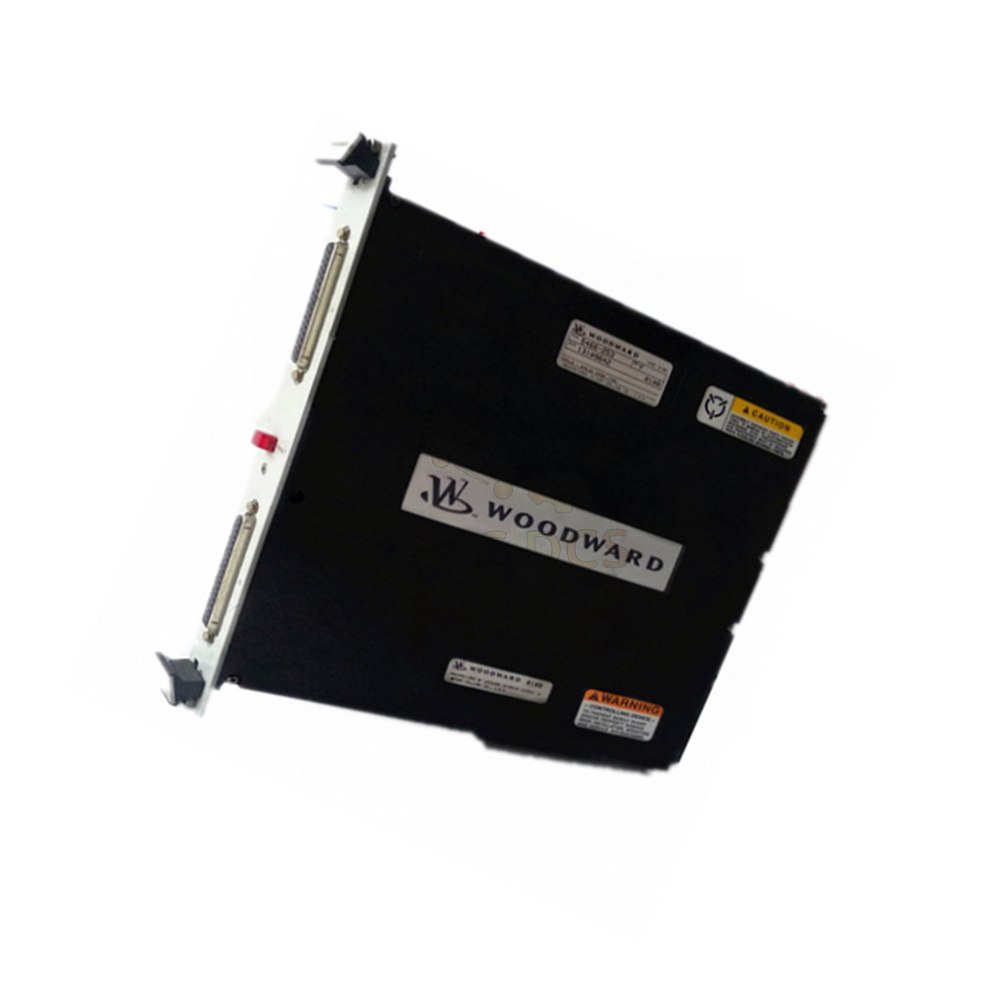

• The Woodward 5464-545 is a high-performance power control unit for industrial applications.
• Input voltage range: 85V to 265V AC – works anywhere in the world.
• Frequency range: 45Hz to 65Hz – tolerates grid variations easily.
• Delivers up to 15 kW peak power for heavy machinery.
• Features 14‑bit resolution for ultra‑precise control.
• Operating temperature: -15°C to +70°C – reliable in most environments.

Key Features

• Motor control optimization: Uses field‑oriented control and predictive torque control. Improves efficiency and reduces energy costs.
• Built‑in ports: RS‑485, 1x Ethernet 10/100 Mbps, 1x USB 2.0 AB type. Easy to connect to industrial networks.
• Remote operation: Control equipment, get real‑time status, and run diagnostics from anywhere.
• Protection & diagnostics: Overvoltage, overcurrent, and motor runtime monitoring. Detects early failure signs to avoid downtime.
• Highly programmable: Customize control algorithms, communication protocols, and power output curves.

Technical Specifications – Tree Structure

• Brand & Model: Woodward / 5464-545
  • Product Type: Power Control Unit / Industrial Drive Controller
• Power Input:
  • Input voltage: 85 to 265 V AC
  • Frequency range: 45 to 65 Hz
  • Peak power output: 15 kW
• Control Precision:
  • Resolution: 14‑bit
  • Allows fine adjustment of torque, speed, and voltage
• Temperature Range:
  • Operating: -15°C to +70°C
• Communication Ports:
  • RS‑485
  • 1x Ethernet 10/100 Mbps
  • 1x USB 2.0 AB type
• Protection Features:
  • Overvoltage protection
  • Overcurrent protection
  • Motor runtime diagnostic framework
• Control Methods:
  • Field‑oriented control (FOC)
  • Predictive torque control (PTC)

Installation Guide

• Mount the unit in a well‑ventilated control cabinet.
• Connect AC power (85‑265V) to the input terminals.
• Wire motor leads to the output terminals – follow the manual.
• Connect Ethernet or RS‑485 for remote control and monitoring.
• Use USB port for local configuration with a laptop.
• Keep cables away from high‑voltage lines to avoid noise.

Debug & Maintenance Simplicity

• LED indicators show power, run, and fault status at a glance.
• Diagnostic motor runtime framework helps predict failures early.
• Remote diagnostics via Ethernet – no need to visit the site.
• Log files store fault history for easy troubleshooting.
• Firmware updates over USB or Ethernet.

Compatibility Information

• Works with most AC induction motors and permanent magnet motors.
• Supports Modbus RTU over RS‑485 for PLC integration.
• Compatible with Modicon Quantum PLCs – see Modicon Quantum series.
• Connects to SCADA systems via Ethernet (Modbus TCP).

Certifications & Standards

• CE marked – meets EU safety and EMC requirements.
• UL 508 certified for industrial control equipment.
• RoHS compliant – no hazardous substances.
• Designed for industrial environments (EMC Class A).

Package Contents

• 1x Woodward 5464-545 power control unit
• Quick start guide
• Mounting screws
• Terminal block connectors
• No power cables or motor cables included.

Warranty & Shipping Methods

• 12-month warranty against manufacturing defects.
• Express couriers: FedEx, UPS, DHL worldwide.
• Same‑day dispatch for orders before 2 PM (GMT+8).
• Delivery in 3‑7 business days to most countries.
• Tracking number provided by email.

Typical Application Scenarios

• Factory automation – control robotic arms and conveyor systems.
• Power sector – regulate transformers and capacitor banks in substations.
• Renewable energy – manage inverters in solar and wind farms.
• Water management – drive pumps in treatment plants.
• Industrial gas applications – control compressors and blowers.

Diagnostic Capabilities

• Real‑time monitoring of voltage, current, torque, and speed.
• Built‑in fault log stores last 50 events with timestamps.
• Predictive maintenance alerts – warns before failure occurs.
• Remote access for diagnostics via Ethernet or RS‑485.
• Motor runtime tracking helps plan maintenance schedules.

Frequently Asked Questions (FAQ)

• Q1: Can I use this unit with a single‑phase power supply?
• A1: No. It requires AC input between 85‑265V, but it expects standard single‑phase or three‑phase per model. Check your specific version.
• Q2: What is 14‑bit resolution in simple terms?
• A2: It means the unit can make 16,384 fine adjustments. Very precise control.
• Q3: Can I connect this to my existing PLC?
• A3: Yes. Use RS‑485 with Modbus RTU or Ethernet with Modbus TCP.
• Q4: What happens if temperature exceeds 70°C?
• A4: The unit may overheat and shut down. Install a cooling fan or move to a cooler area.
• Q5: Does this unit work with wind turbine generators?
• A5: Yes. It manages inverters and grid connection for wind and solar systems.

Buying Guide & Selection Tips

• Choose Woodward 5464-545 if you need 15 kW peak power and wide voltage range (85‑265V AC).
• For very hot environments (above 70°C), add external cooling or choose a different model.
• Make sure your motor matches the unit’s output rating – do not exceed 15 kW.
• Buy spare communication cables and fuses for quick field replacement.
• Order from authorized distributors to ensure genuine Woodward products.
• Consider the Ethernet version if you need remote diagnostics and SCADA integration.
