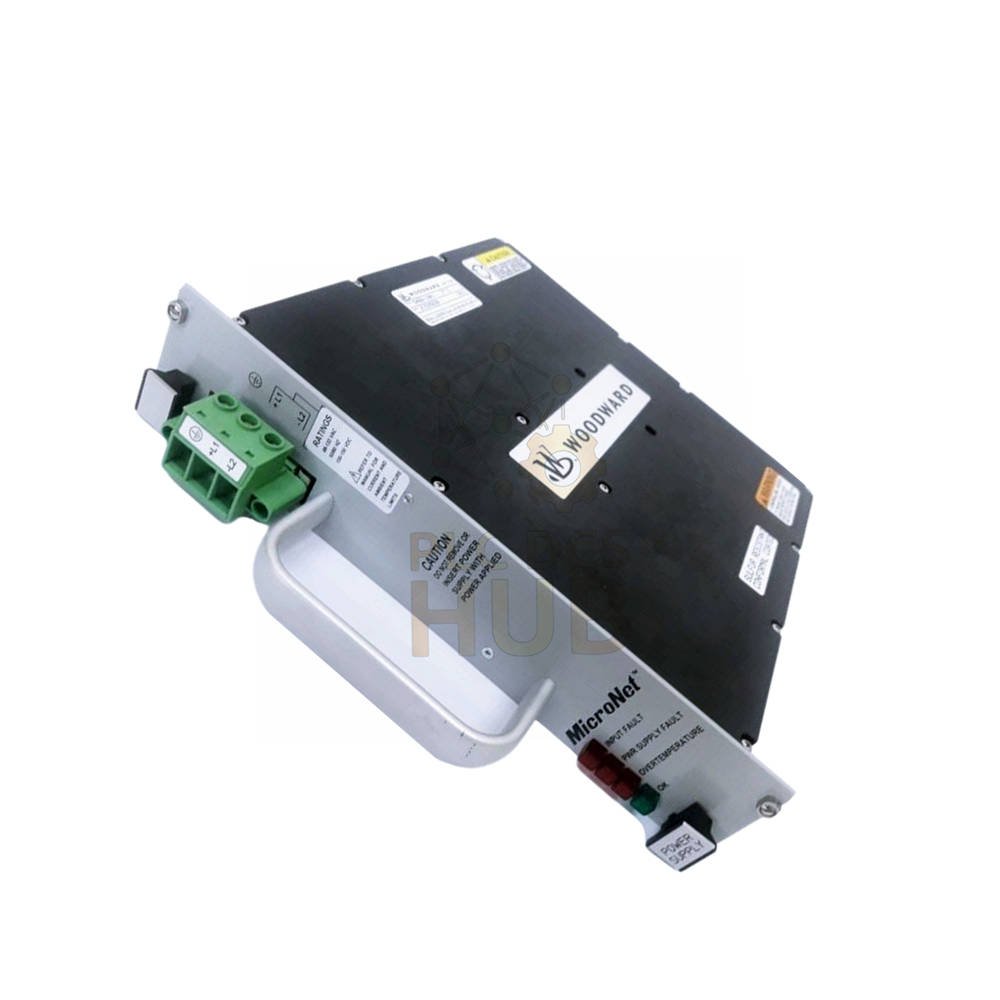

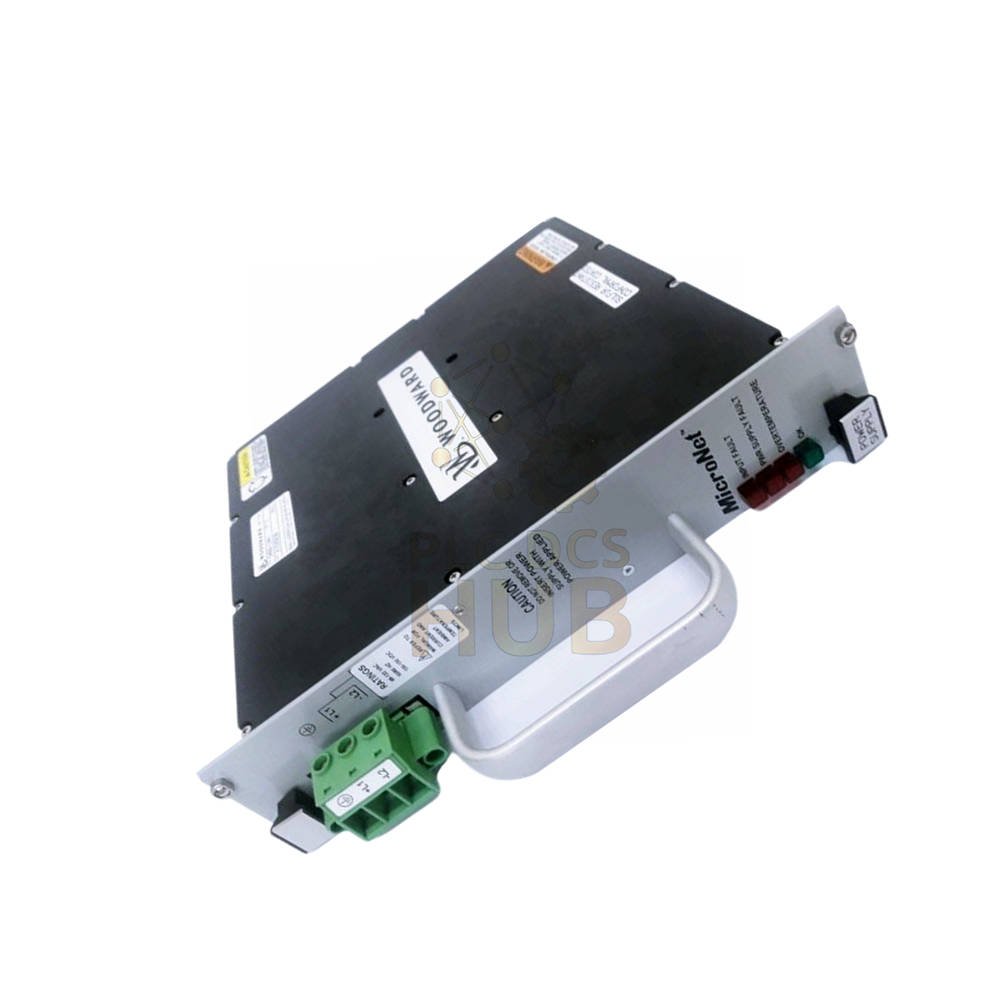

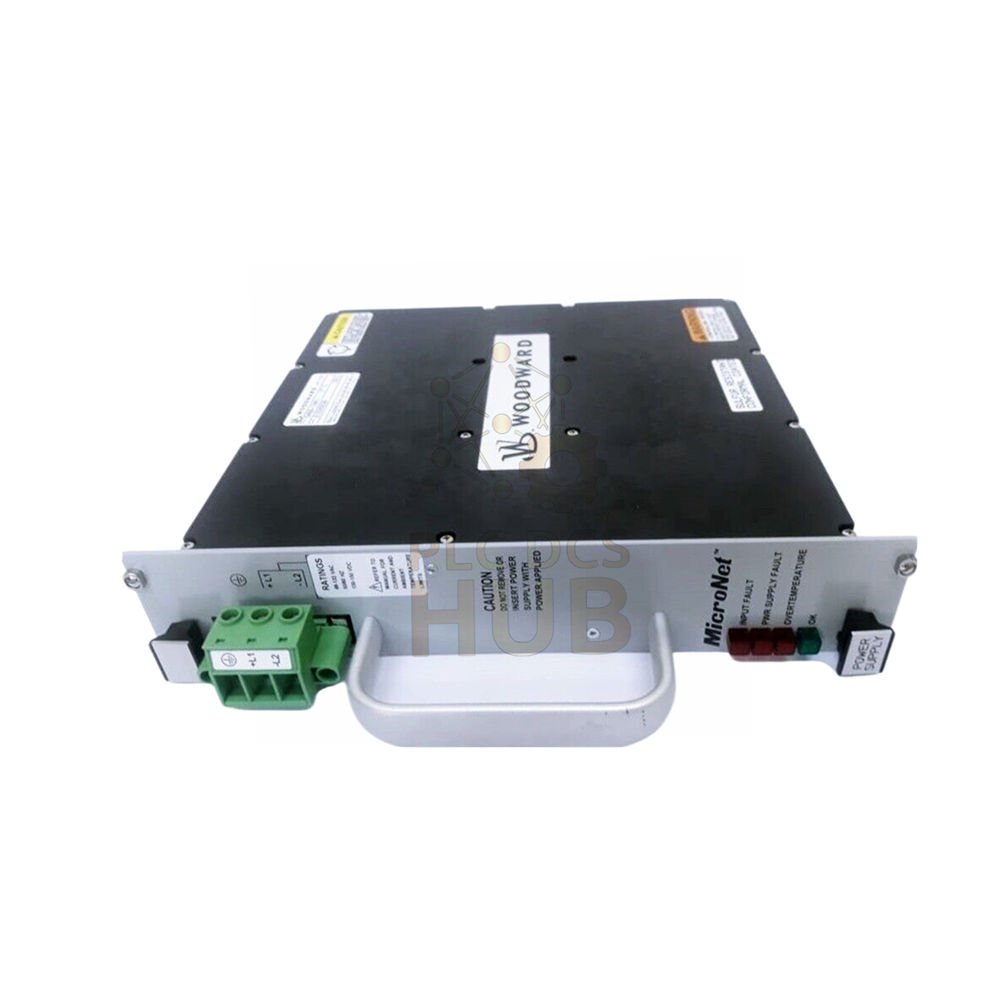

Woodward 5466-1001 Digital Controller Power Supply Module
Product Introduction
The Woodward 5466-1001 is a rugged power supply module. It belongs to the MicroNet Digital Controllers series. This unit delivers stable 24VDC power to critical control systems. It supports hot-swapping for non-stop operation. Ideal for gas, hydro, and steam turbine controls.
Key Features at a Glance
– Redundant design shares load automatically between supplies. – Hot-swap capability allows replacement while the control runs. – Four LED indicators show OK, Input Fault, Overtemperature, and Supply Fault. – Current sharing reduces heat and improves reliability. – Network isolation rated at 1000 Vrms for 0-60 Hz.
Technical Specifications
– Brand: Woodward – Part Number: 5466-1001 – Product Type: Digital Controller Power Supply Module – Output Voltage: 24 VDC – Output Current: 16 A – Power Consumption: 15.0 W max, 13.5 W typical – Speed Sensing Range: 1 to 30 Vac – Maximum Stub Length: 300 mm – Dimensions (H x W x D): 461 mm x 265 mm x 59 mm – Weight in Chassis: 22 kg (48 lbs) – Operating Temperature: 0 to +55°C – Network Isolation: 0-60 Hz at 1000 Vrms – Input Voltage: 24 VDC (LVD and UL compliant)
Measurement & Performance Data
– Voltage measurement range: 1 to 30 Vac for speed sensing. – Frequency response: 0-60 Hz for network isolation. – Sensitivity: Detects 1 Vac signals reliably. – Linearity: Maintains steady output under variable loads. – Resolution: Provides precise 24VDC power regulation. – Temperature tolerance: Works from 0 to +55°C ambient. – Environmental protection: Designed for industrial control rooms. – Noise immunity: 1000 Vrms isolation blocks interference.
Installation Guidelines
– Always disconnect input power before installation. – Align circuit board edges with the chassis slots. – Push slowly until the motherboard connector seats properly. – Tighten all retaining screws after insertion. – Do not connect redundant supplies to a single power source. – Use separate sources for each supply to avoid total failure.
Debugging & Maintenance Convenience
– Front LEDs show fault status without opening the chassis. – Reset the unit by turning off power for one minute. – Check for short circuits on external devices first. – Replace the supply if the red fault LED stays on after reset. – Hot-swap design removes the need for system shutdown.
Compatibility Information
– Works with Woodward MicroNet TMR and MicroNet Plus systems. – Supports simplex and redundant CPU configurations. – Fits any chassis designed for MicroNet main power supplies. – Compatible with SIL-approved safety system kits. – Use with Modicon Quantum controllers via standard 24VDC interfaces.
Certifications & Compliance
– SIL Approved for safety instrumented systems. – UL recognized for 24 VDC input (LVD and UL). – Meets Woodward factory test standards. – Designed for industrial control panel use.
Package Contents
– One Woodward 5466-1001 power supply module. – No mounting hardware included (uses chassis backplane). – No cables included (user supplies 24VDC wiring). – Quick reference guide (full manuals: 26167V1, 26166V2).
Warranty & Shipping
– Warranty: 12 months from date of shipment. – Covers manufacturing defects and component failure. – Does not cover misuse or external short circuits. – Shipping carriers: FedEx, UPS, DHL Express worldwide. – All shipments include tracking and insurance.
Typical Applications
– Gas turbine control systems. – Hydro turbine governors. – Steam turbine protection panels. – Diesel and gas engine management. – Redundant power for safety shutdown systems. – Retrofit of older Woodward power supplies.
Diagnostic Capabilities
– OK LED confirms normal operation. – Input Fault LED warns of low or missing input power. – Overtemperature LED triggers at excessive heat. – Power Supply Fault LED indicates internal converter failure. – Detects short circuits on external 24VDC loads. – Self-resets after fault removal without manual intervention.
FAQ – Frequently Asked Questions
What is the output rating of the 5466-1001?
24 VDC at 16 amps continuous.
Can I replace this unit while the system runs?
Yes. Redundant configuration supports hot-swapping.
Why is the red Power Supply Fault LED on?
A short circuit exists on an external device. Check wiring first.
How do I reset the module after a fault?
Turn off input power for 60 seconds. Then restore power.
What happens if one redundant supply fails?
The other supply handles the full load automatically.
Can I connect both supplies to one breaker?
No. Use separate sources for redundancy to work properly.
Does this module work with the MicroNet Plus?
Yes. It is fully compatible with MicroNet Plus systems.
What is the typical lifespan under normal use?
Over 10 years in a clean, temperature-controlled panel.
Is there a lighter alternative for small systems?
Use 5466-1000 for lower power needs. This model is 22 kg.
Does Woodward still support this part?
Yes. Manuals 26167V1 and 26166V2 are available.
Selection Guide
– Choose 5466-1001 for high current (16A) and redundant systems. – Choose 5466-1000 for lower current (approx 8A) and simplex systems. – Use one supply per chassis for non-critical applications. – Use two supplies per chassis for 24/7 or safety-critical plants. – Verify your chassis has two free slots for installation. – Confirm input source can deliver 24VDC at 20A minimum.
