Woodward 8440-2049 easYgen 3200 – Control 32 Gensets Built-in HMI

Description

Quick Look

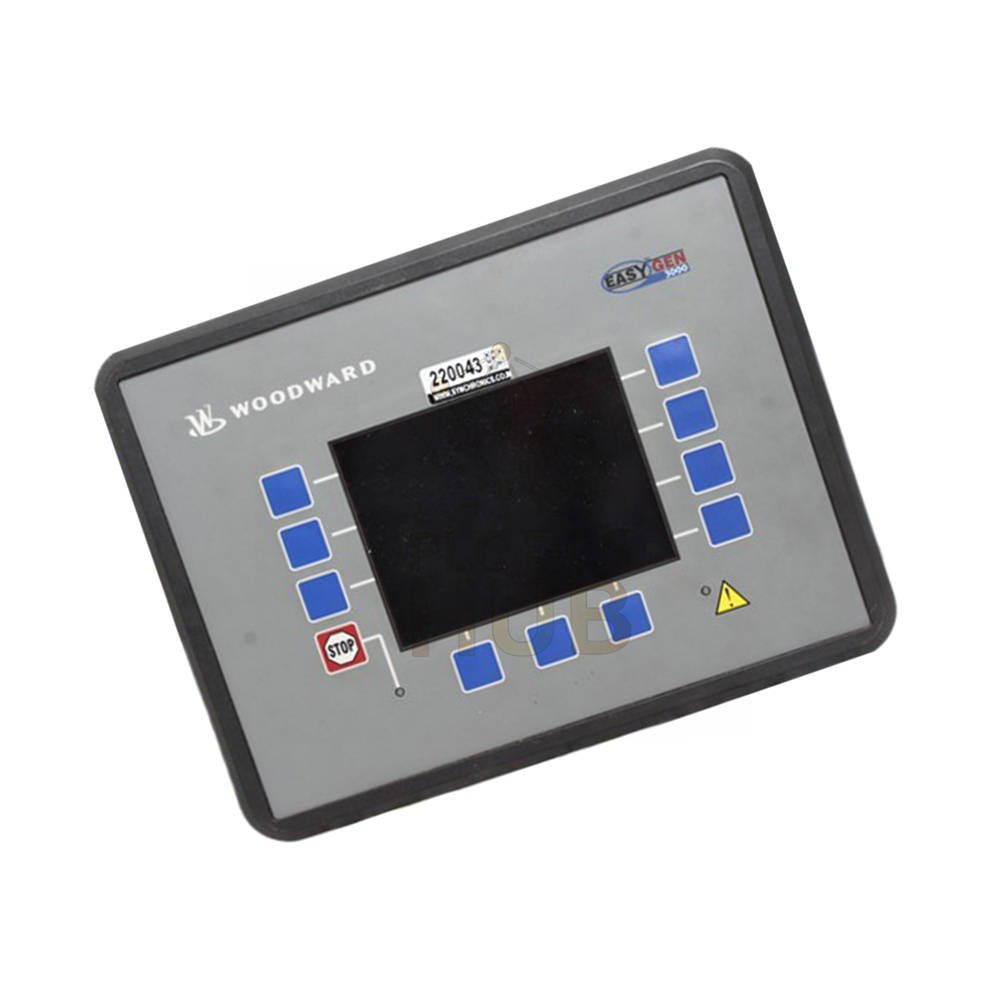

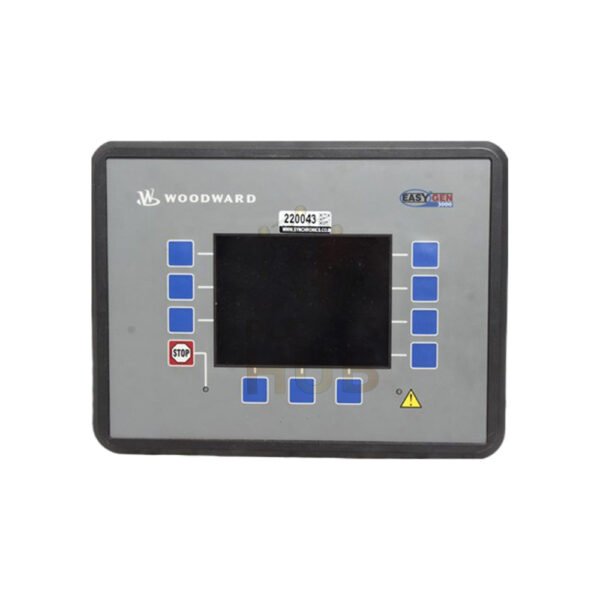

Woodward 8440-2049 is a genset controller from the easYgen 3000 series. It handles up to 32 gensets at once. The built-in screen makes setup easy. Use it for load sharing, mains parallel, or soft loading.

Power: 12/24 V DC | Display: 5.7″ LCD with soft keys | Made by: Woodward (USA)

Main Features

• Controls up to 32 connected gensets
• Current setting range: 1 to 32,000 A
• 14 languages – English, Chinese, Russian, Spanish, and more
• Works with 5 alternator winding types
• Isolated relay outputs for safety
• Low power use – less than 0.15 W per path
• Operation temp: -20°C to +70°C | Storage: -30°C to +80°C
• Communication: RS-232, RS-485, CAN

Technical Data

• Brand: Woodward
• Model: 8440-2049
• Series: easYgen 3000 / easYgen 3200
• Type: Genset parallel controller
• Front panel size: 282W x 216H x 96D mm
• Max power per path: < 0.15 W
• Supported windings: 3p-3w, 3p-p-4w, 3p-4wOD, 1p-2w, 1p-3w
• Languages: English, German, Spanish, French, Italian, Portuguese, Japanese, Chinese, Russian, Turkish, Polish, Slovakian, Finnish, Swedish
• Relay type: Isolated outputs
• Current setting: 1 – 32,000 A
• Load transfer modes: Open transition, closed transition, mains parallel, soft loading/unloading
• Breaker sync: Slip frequency / phase matching
• Protection: Multi-level password

Set Points You Can Adjust

• Speed
• Frequency
• Voltage
• Power (kW)
• Power factor (PF)
• Reactive power (kVAR)

All changes are made on the 5.7″ LCD using soft keys. No computer needed.

Installation in 5 Steps

• Cut panel hole to size (282W x 216H mm)
• Insert controller and tighten brackets
• Connect 12V or 24V DC power to rear terminals
• Wire alternator sensing (match your winding type)
• Connect RS-485 or CAN for multiple gensets

Maintenance Tips

• Clean the LCD with a soft dry cloth only
• Check terminal screws every year
• Update firmware only when genset is offline
• Keep manual 37528 nearby for advanced settings

Compatibility

• Works with all Woodward easYgen 3000 expansion modules
• Connects to Modicon Quantum PLCs via Modbus or CAN
• Fits with most diesel/gas engine ECUs (CAN bus)
• Supports Modbus RTU on RS-485 for SCADA

Certifications

• CE marked
• RoHS compliant
• UL recognized
• ISO 9001 manufacturing

Common Uses

• Hospital backup power with mains parallel
• Data center peak shaving
• Marine power management
• Oil & gas remote sites
• Rental genset fleets

Diagnostic Tools

• Real-time alarms on screen
• Event log stores last 100 events
• Sync error warnings for breakers
• CAN bus failure alerts
• Low battery voltage alarm
• Overcurrent trip points

What’s in the Box

• Woodward 8440-2049 controller – 1 unit
• Mounting brackets + screws – 1 set
• Quick start guide – 1 copy
• Manual 37528 on CD – 1 disc
• Cables not included

Warranty & Shipping

• 12-month warranty covers factory defects
• Repair service: 3-7 days for most issues
• Shipping: FedEx, UPS, DHL with tracking
• Same-day dispatch for orders before 2 PM (GMT+8)

FAQ – 5 Professional Questions

• Can I use this controller with a single genset only?
  Yes. Set number of units to 1 in the menu. All parallel features will be disabled automatically.
• Does the warranty cover shipping costs both ways?
  The 12-month warranty covers parts and labor. Customer pays shipping to us. We pay return shipping.
• How fast is shipping with FedEx or DHL?
  FedEx and DHL take 3-5 business days to most countries. UPS Express takes 2-4 days. Tracking provided.
• What happens if I lose CAN communication during parallel operation?
  The controller keeps running its own genset alone. It shows a CAN alarm. Load sharing stops until bus recovers.
• Can I change the language after installation?
  Yes. Go to settings, select Language, choose from 14 options. No restart needed. Changes apply immediately.

Buyer’s Guide – How to Choose

• Pick 8440-2049 if you need to parallel 2 to 32 gensets
• Choose this model when you require mains parallel + soft loading
• Best for users who want on-screen control without a laptop
• Do NOT buy this if you only need basic single genset protection – look for smaller easYgen models
• Check your alternator winding type against the 5 supported types before ordering
• Add a separate battery charger – this controller does not have a built-in charger
