Product Description

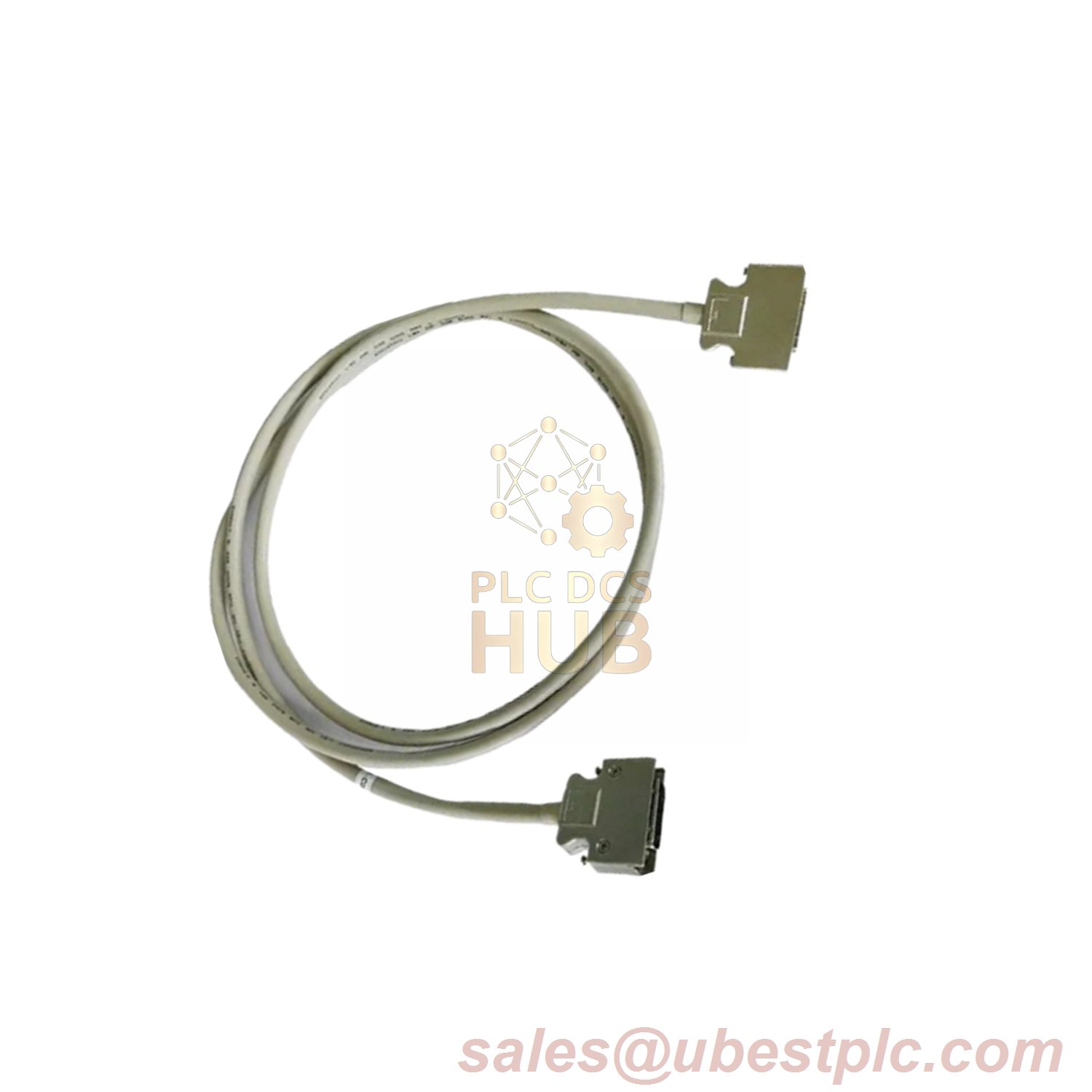

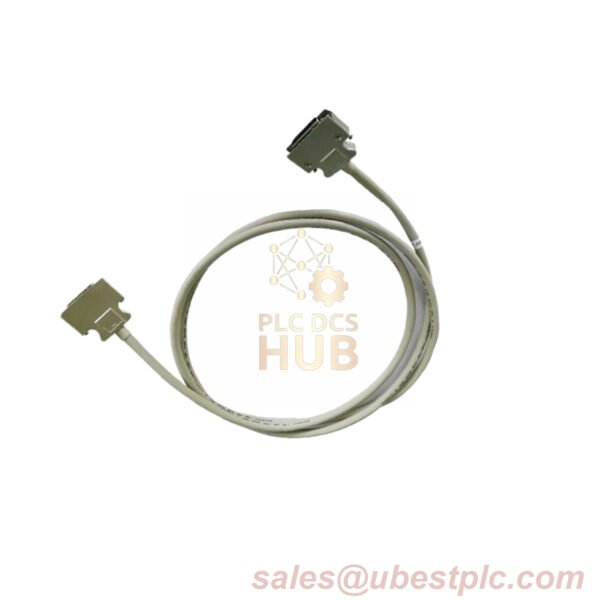

The Yokogawa YCB301-C800 is an ESB Bus Cable designed for high-reliability industrial communication. With 36-pin connectors on both ends and an 8-meter length, it ensures stable data transmission in harsh environments between Yokogawa control systems.
Technical Specifications
- Manufacturer/Model: Yokogawa YCB301-C800
- Cable Type: ESB Bus (Enhanced Serial Backbone)
- Connector Configuration: 36-pin male to 36-pin male
- Length: 8 meters (26.25 ft)
- Conductor Material: 24AWG tinned copper
- Impedance: 120Ω ±10% @ 1MHz
- Capacitance: ≤52 pF/m (16 pF/ft)
- Shielding: Dual-layer foil + braid (95% coverage)
- Voltage Rating: 300V AC max
- Temperature Range: -40°C to +80°C (-40°F to +176°F)
- Bend Radius: 10× cable diameter (min)
Industrial Applications
- Yokogawa CENTUM VP DCS interconnections
- Process automation cabinet wiring
- Fieldbus communication networks
