Description

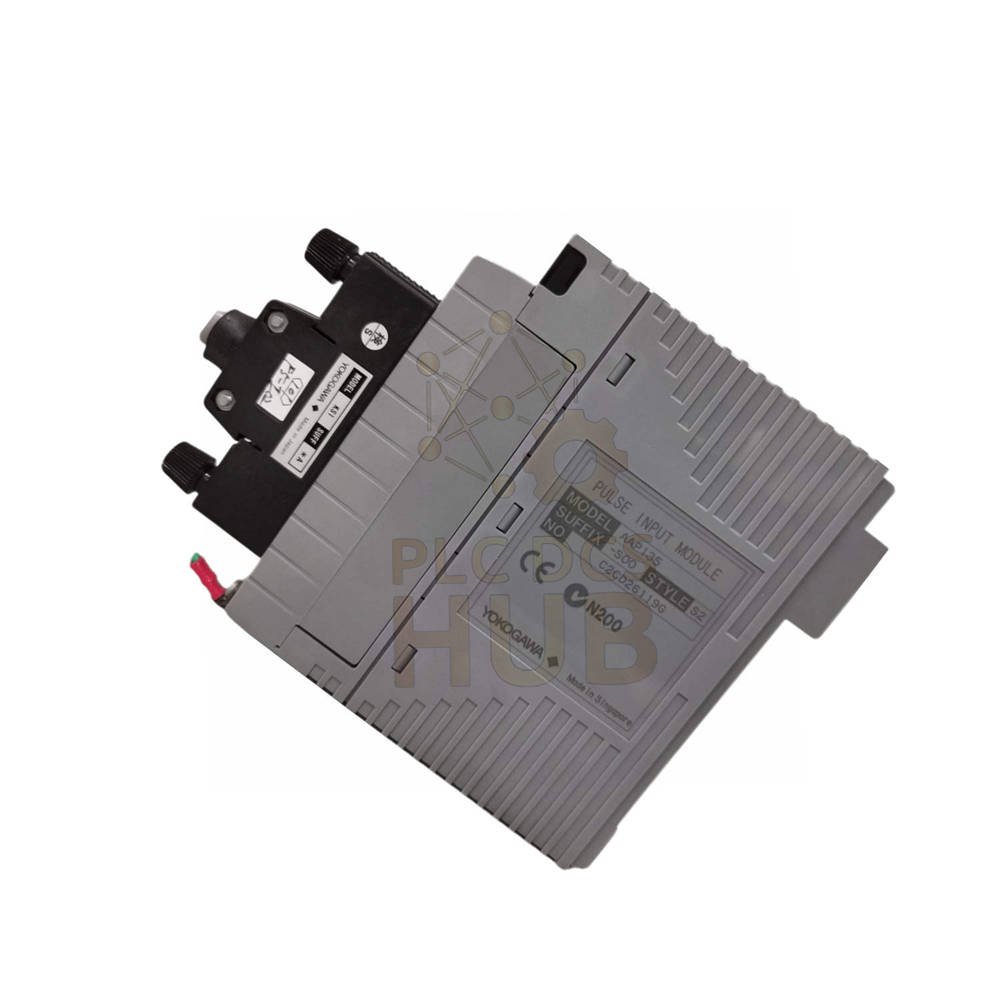

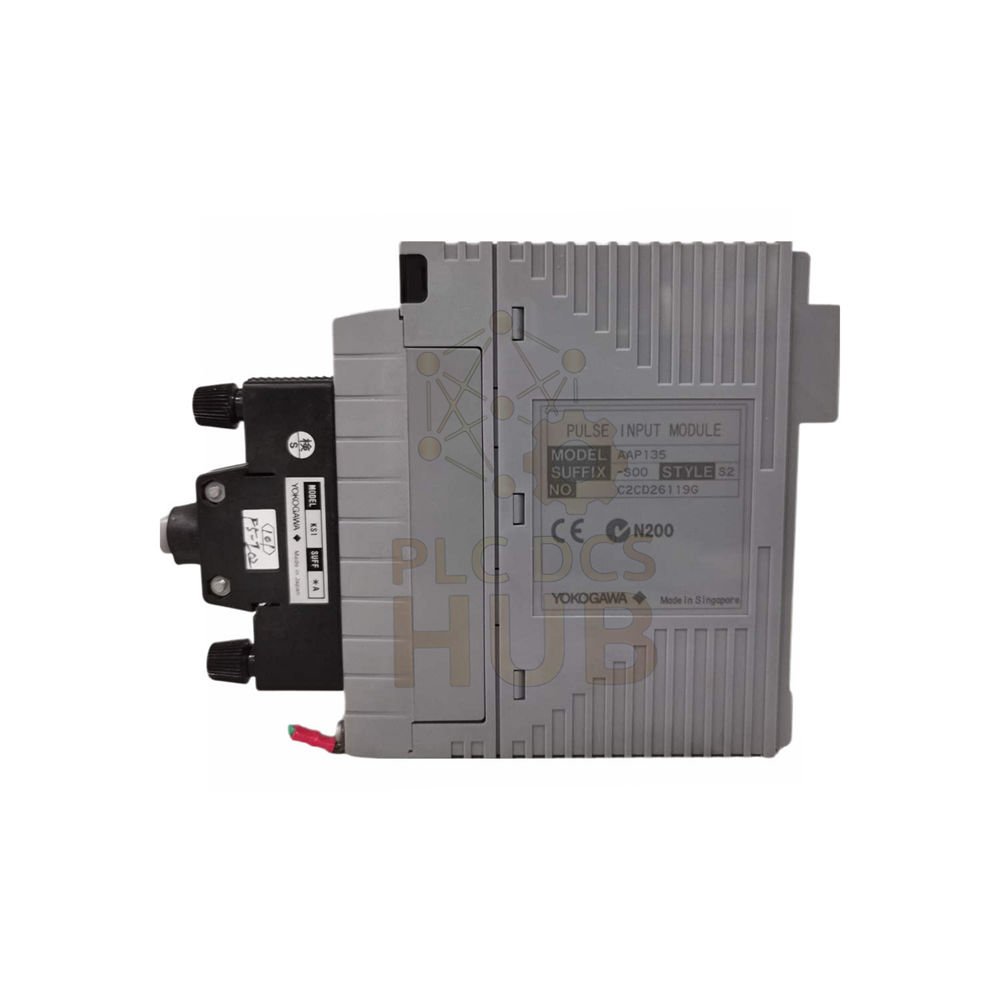

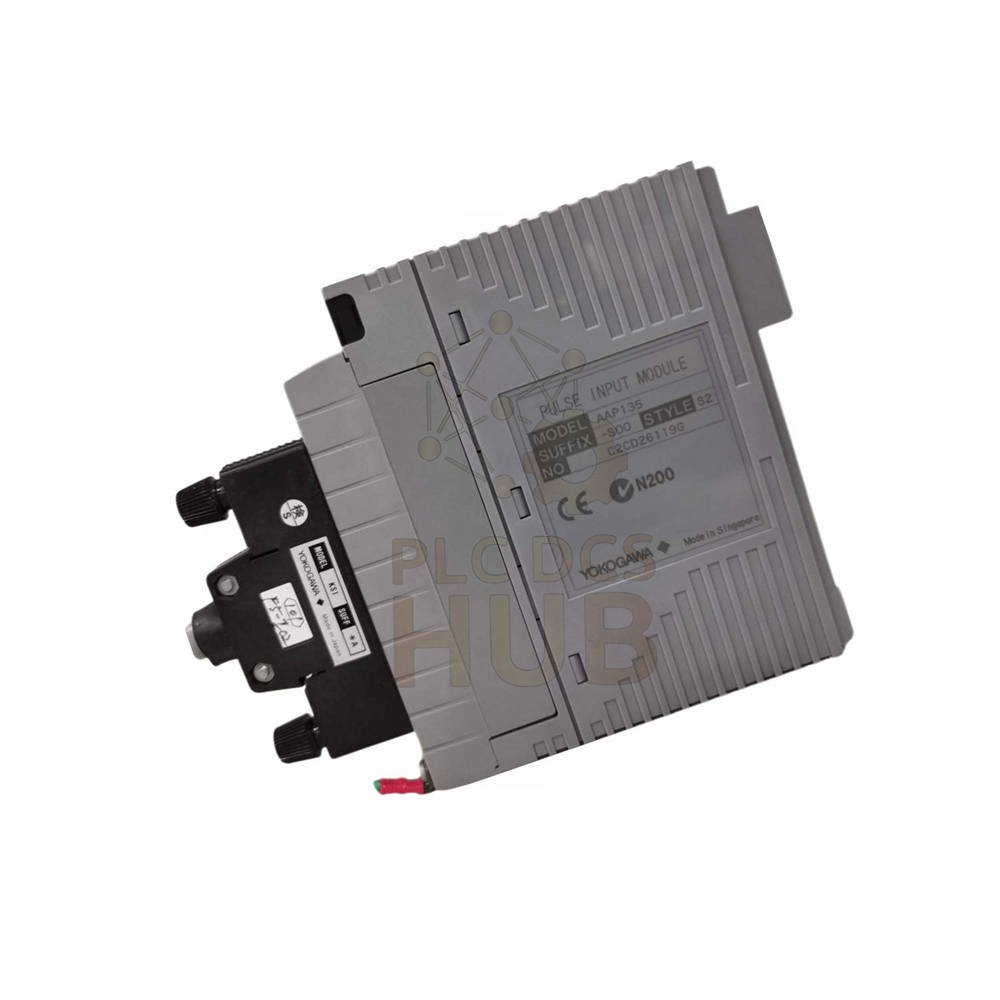

Smart Pulse Input Solution – Yokogawa AAP135-S00/K4A00
- Yokogawa AAP135-S00/K4A00 converts pulse signals into stable analog output.
- It fits the Yokogawa Centum VP system.
- It supports flow, speed, and counting tasks.
- Wide frequency range ensures flexible use.
- Multi-channel design improves system efficiency.
Core Advantages
- 8-channel pulse input for multi-point data capture
- Accuracy up to ±0.1%
- Wide range from 0.01 Hz to 10 kHz
- Flexible input modes for different sensors
- Strong isolation reduces noise impact
- Programmable output for custom control
Technical Specifications
- Brand: Yokogawa
- Model: AAP135-S00/K4A00
- Type: Pulse Input Module
- Input Frequency: 0.01 Hz to 10 kHz
- Accuracy: ±0.1%
- Resolution: High-resolution pulse detection
- Linearity: Stable across full range
- Input Modes: Single, double, quadruple pulse
- Output Signal: 4–20 mA DC
- Response Speed: Fast signal conversion
- Power Supply: 24 V DC
- Power Consumption: ≤2 W
- Temperature Range: -20°C to +60°C
- Storage Temperature: -40°C to +80°C
- Humidity: Up to 95% RH
- Protection Level: IP67
- Signal Stability: Low drift over time
- Anti-Interference: High EMC resistance
Configuration Breakdown
- AAP135-S00/K4A00
- ├─ S00
- Standard version
- No explosion protection
- └─ K4A00
- Includes KS Cable Interface Adapter
- Adapter Model: ATK4A-00
- Improves wiring flexibility
Installation Notes
- Install inside a control cabinet.
- Use stable 24 V DC supply.
- Keep signal cables shielded.
- Avoid strong electromagnetic areas.
Operation & Maintenance
- Simple setup through system software.
- No complex tuning steps.
- Supports quick signal testing.
- Low failure rate ensures long service life.
Application Scenarios
- Flow meter signal conversion
- Motor speed monitoring
- Production line counting
- Energy measurement systems
- Industrial automation control
Packing & Warranty
- 1 × AAP135-S00/K4A00 module
- 1 × Adapter (ATK4A-00)
- 1 × Manual
- 12-month warranty included
Shipping Options
- FedEx fast delivery
- UPS global service
- DHL express shipping
FAQ
- How to select the correct pulse range?
- Check your sensor output frequency first. Match within module range.
- What if signals are unstable?
- Use shielded cables and check grounding quality.
- Can this module handle high-speed pulses?
- Yes, it supports up to 10 kHz input signals.
- How to improve measurement reliability?
- Keep wiring short and avoid electrical noise sources.
- Is this module suitable for upgrade projects?
- Yes, it fits many systems with pulse signal needs.
