Product Overview

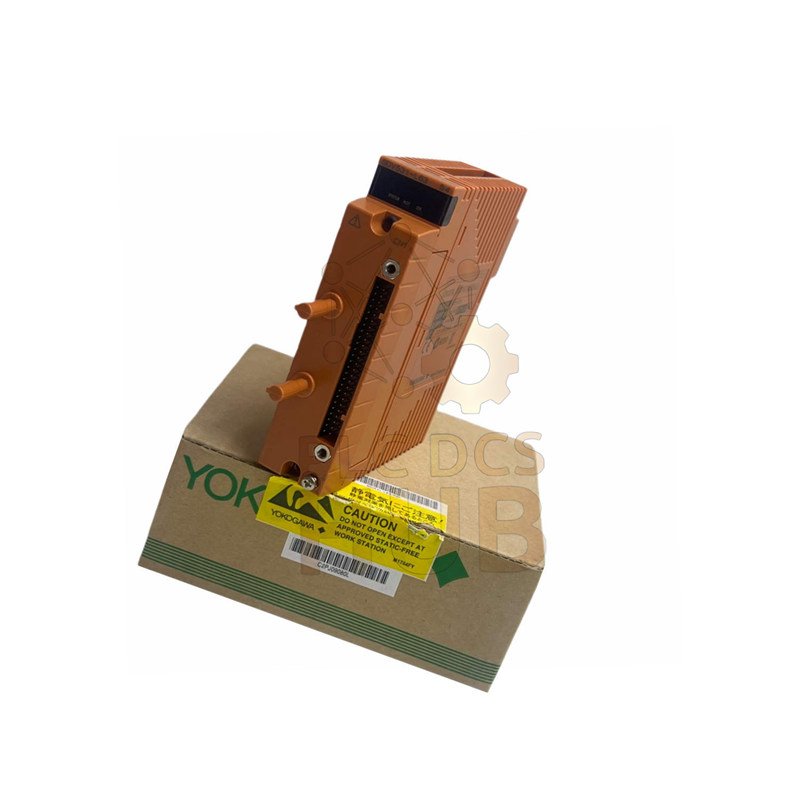

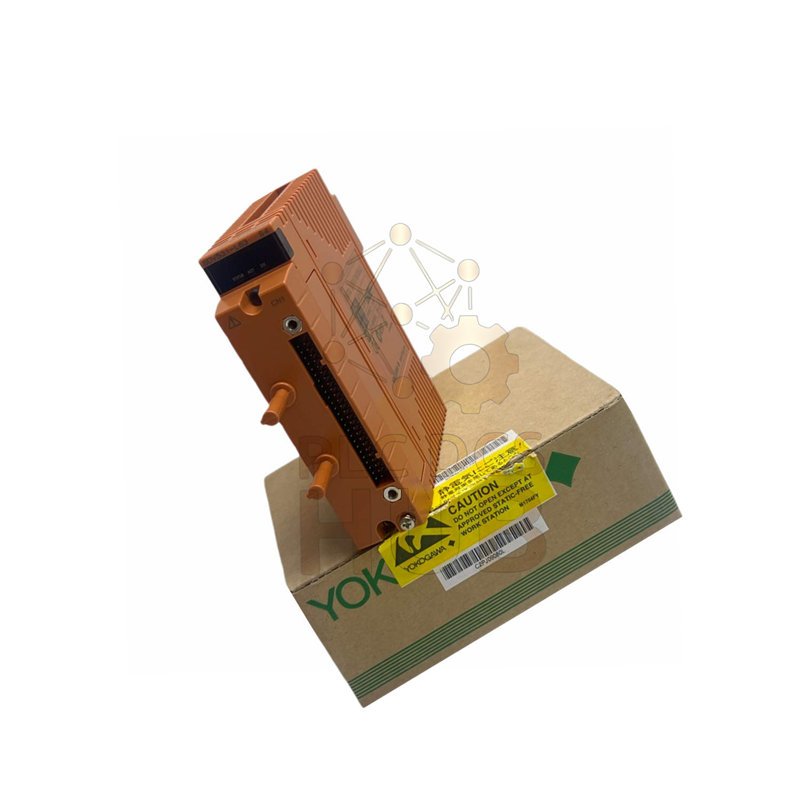

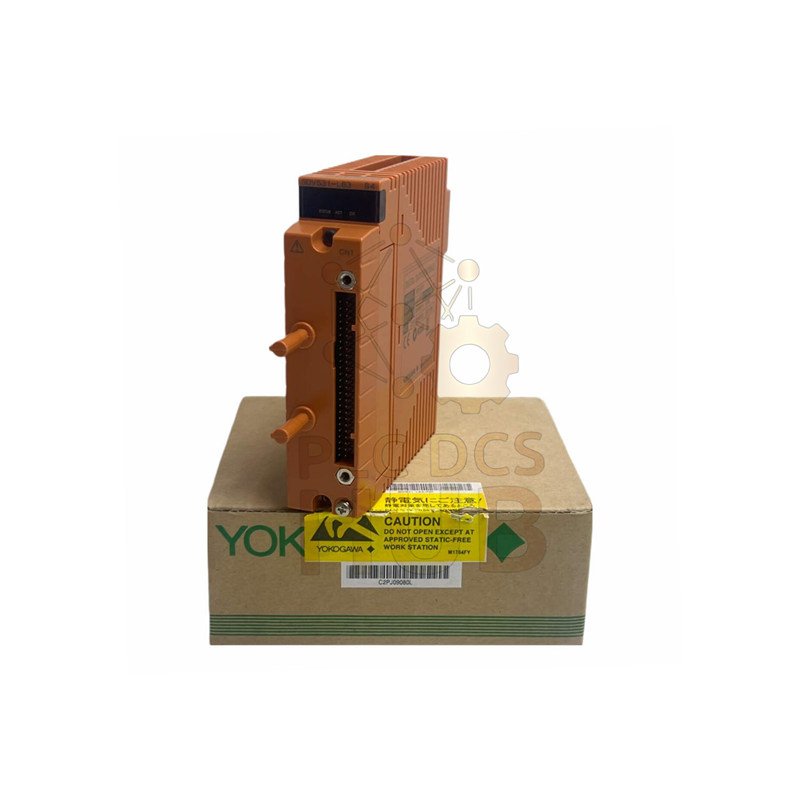

The Yokogawa SDV531-L63 digital output module delivers stable 24 V DC control signals.
It is designed for CENTUM series systems and demanding plant environments.
Eight isolated channels protect the system from electrical noise.
Core Selling Points
- Eight independent outputs improve control accuracy
- Module isolation increases system safety
- Long-distance signal support reduces wiring limits
- High current capacity suits heavy industrial loads
- Fast response ensures reliable actuator control
Model and Configuration Details
- Brand: Yokogawa
- Model: SDV531-L63
- Series: CENTUM
- Module type: Digital output
- Suffix L: Long distance version
- Suffix 6: Cable adapter included, non-explosion type
- Suffix 3: ISA G3 coating, wide temperature range
Electrical Characteristics
- Number of outputs: 8 channels
- Output voltage rating: 24 V DC
- Voltage drop: Maximum 1 V
- Output form: Current source
- Maximum load per channel: 0.6 A
- Total output capacity: 4.8 A
- Minimum load current: 35 mA
- Leak current when off: 1.6 mA maximum
- Load resistance range: 40 to 685 ohms
Performance Data
- Output response time: Within 30 ms
- Withstand voltage: 2 kV AC for 1 minute
- Signal stability under fluctuating load
- Low heat generation during continuous use
Power Requirements
- External supply rating: 24 V DC, minimum 5 A
- Supply tolerance: +20 percent to minus 10 percent
- Internal consumption at 5 V DC: Up to 280 mA
- Internal consumption at 24 V DC: Up to 140 mA
Environmental Capability
- Operating temperature: Minus 20 to plus 70 degrees Celsius
- ISA G3 coating protects against corrosion
- Strong resistance to electrical interference
- Suitable for continuous industrial operation
Mechanical Information
- Weight with terminal block or MIL cable: About 0.28 kg
- Weight with cable adapter: About 0.34 kg
- Compact size fits standard DCS racks
External Connection Options
- Pressure clamp terminal connection
- MIL standard cable interface
- Dedicated signal cables: AKB331, AKB651
Installation and Maintenance
- Wrong module insertion prevention supported
- Quick replacement without rewiring
- Clear channel identification reduces errors
- Minimal maintenance during service life
Typical Applications
- Valve and solenoid control
- Motor starter signaling
- Process interlock systems
- Plant-wide automation control
Warranty and Shipping
- Warranty period: 12 months
- Shipping methods: FedEx, UPS, DHL
- Secure industrial-grade packaging
Professional FAQ
- How does module isolation help the system?
Isolation prevents noise and protects the controller from field faults.
- Is this module suitable for long cable runs?
Yes. The long-distance design supports stable remote wiring.
- What should I check before selecting this model?
Confirm output current needs and cable type compatibility.
- Can it work in redundant control systems?
Yes. Order an extra module without option codes for redundancy.
- Is this module good for corrosive environments?
Yes. The G3 coating improves resistance to harsh air conditions.
