GE EX2100 DSP Board Failure: Will Your Generator Trip During a Lockup?

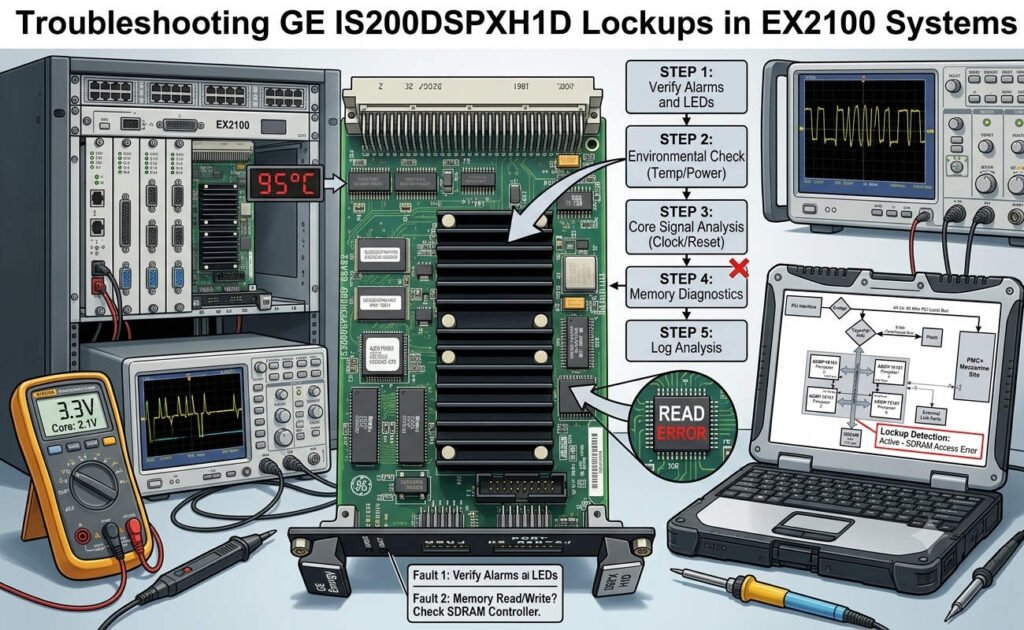

Understanding the DSPXH1D Processor Architecture

The IS200DSPXH1D Digital Signal Processor board serves as the brain of the GE EX2100 excitation system. It manages high-speed algorithms and protective logic for your generator. When this board experiences a hard lockup, system behavior depends entirely on your specific configuration. In a simplex system, the regulator loses control immediately, which often triggers a generator lockout trip. However, redundant systems aim to shift control to the standby channel. At PLCDCS HUB, we emphasize that system architecture dictates the safety margin during such failures.

The Vital Role of Watchdog Monitoring

Watchdog circuits monitor the health of your processor continuously. If the DSP freezes, the watchdog must detect the stall and initiate a transfer. Unfortunately, not all lockups trigger this mechanism perfectly. Sometimes, a board enters a partial state where communication remains active, but logic calculations fail. This delay creates a dangerous “blind spot” in your control system. Therefore, engineers must verify watchdog trip-times during every maintenance cycle to ensure reliable failover.

Transfer Dynamics and Generator Protection

A transfer to Channel B does not guarantee a bumpless transition. During the switchover, the excitation field may experience a brief dip. A heavily loaded generator operating at a low power factor has very little tolerance for this fluctuation. As a result, your protective relays—such as the 40-Loss of Excitation function—might operate prematurely. We recommend reviewing your protection settings to ensure they align with the real-world performance of your excitation hardware.

Best Practices for Reliability and Maintenance

You should prioritize proactive diagnostics over reactive component replacement. Follow these expert guidelines to maintain your control systems effectively:

• ⚙️ Schedule annual redundancy testing to validate seamless Channel A to Channel B transfer.
• ⚙️ Audit your diagnostic event logs before replacing any DSP board to rule out external issues.
• ⚙️ Inspect cabinet cooling systems, as thermal stress frequently causes intermittent processor lockups.
• ⚙️ Verify that your firmware revisions are fully compatible with your specific EX2100 cabinet generation.
• ⚙️ Keep air filters clean to prevent the high ambient temperatures that degrade electronic components.

Author Insights: Reliability in Industrial Automation

Many maintenance teams treat every alarm as a hardware failure. However, our team at PLCDCS HUB often finds that power instability or backplane communication errors trigger these issues. Replacing a healthy board rarely solves the root cause. We advise clients to analyze the full system environment—including power quality and ventilation—before performing hardware swaps. This methodology significantly improves uptime and reduces unnecessary costs in complex factory automation environments.

Practical Solution Scenario

Consider a plant where the EX2100 reports frequent processor watchdog alarms. The maintenance team initially suspects a faulty IS200DSPXH1D module. After conducting a deep diagnostic review, they discover a failing cooling fan and a loose backplane connection. Replacing the fan and securing the connection resolves the lockups completely. This case proves that holistic troubleshooting saves time and protects your budget. For more specialized technical resources, visit PLCDCS HUB.

Frequently Asked Questions

Does a single watchdog alarm mean I should replace the DSP board?
No. Isolated events often stem from external noise or power dips. Investigate the diagnostic logs and environmental conditions before ordering a replacement.

Can I perform a live redundancy test while the generator is synchronized?
This is highly risky. Only perform full transfer testing during planned outages with a qualified team to avoid accidental generator trips.

How do I choose the right replacement for my EX2100 controller?
Always match the hardware revision and firmware version to your existing system. Consult PLCDCS HUB to ensure your procurement aligns with your specific site requirements.
