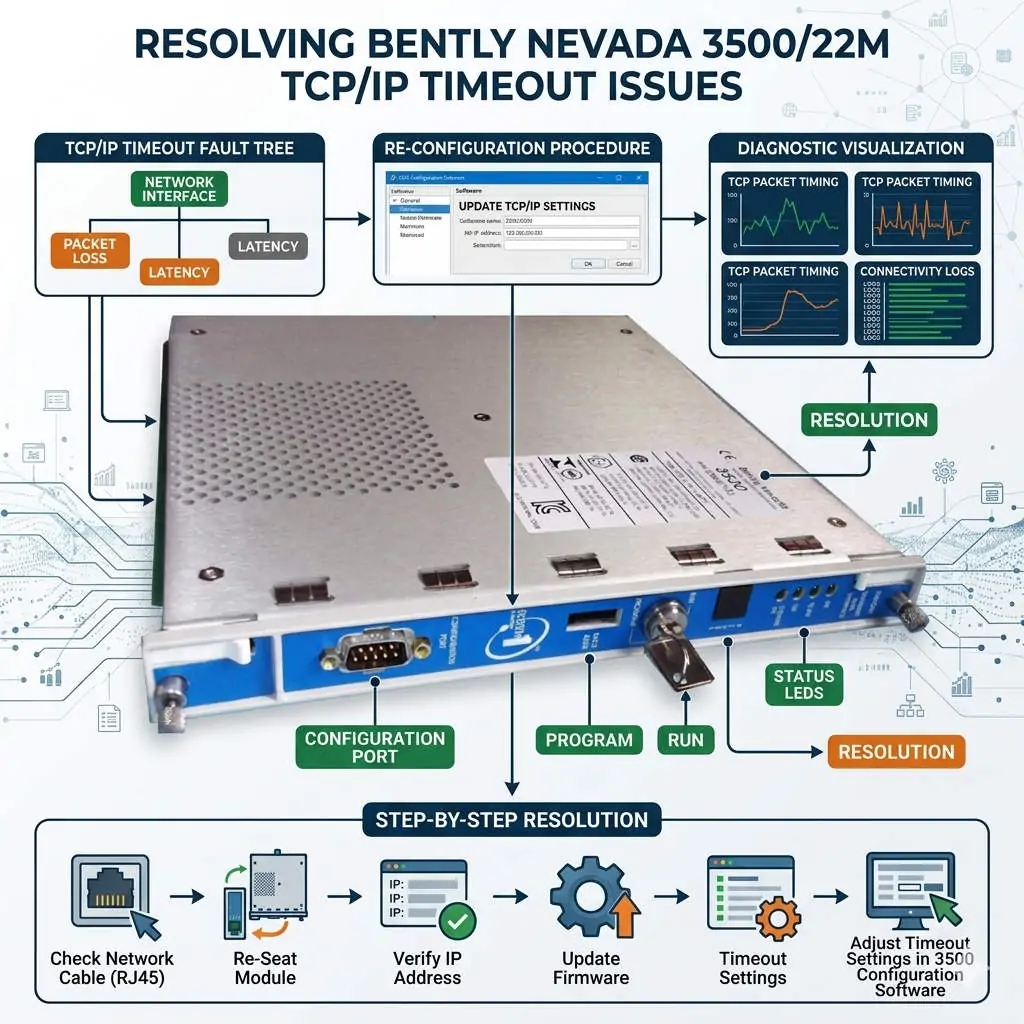

Resolving TCP/IP Timeout Issues in Bently Nevada 3500/22M TDI Modules

The Bently Nevada 3500/22M Transient Data Interface (TDI) serves as the primary gateway for critical machinery protection data. It links the 3500 rack to your plant control systems and asset management software. However, TCP/IP connection timeouts can paralyze real-time vibration monitoring. These delays often mask developing machine faults and increase the risk of catastrophic failure. Maintaining a stable communication link is therefore essential for industrial automation safety.

Understanding Network Latency and Protocol Stability

The 3500/22M module requires a highly deterministic Ethernet environment to function correctly. High latency or excessive packet loss often triggers sudden session disconnects. Most industrial switches should maintain delays below 50ms to prevent the TDI from dropping data packets. Furthermore, misconfigured Modbus TCP/IP settings or mismatched port assignments frequently cause intermittent connectivity. Operators must ensure that SCADA or DCS polling intervals do not overwhelm the module processor.

Expert Insight from PLCDCS HUB: In our experience, many “hardware failures” are actually network congestion issues. We often see TDI modules struggle when forced to share bandwidth with high-traffic surveillance cameras or office data. Always isolate your condition monitoring traffic.

Firmware Alignment and System Integration

Firmware compatibility represents a common hurdle in factory automation integration. The 3500 rack backplane and the TDI module must run compatible software versions. Outdated firmware often lacks the stability required for modern high-load polling environments. Consequently, the module may experience frequent CPU resets or buffer overflows. Keeping your system updated ensures better cybersecurity and extends the operational lifespan of your hardware.

Technical Best Practices for Stable Installation

Proper physical installation significantly reduces the likelihood of communication errors. Engineers should follow these technical guidelines to ensure maximum uptime:

• ✅ Network Segmentation: Use a dedicated VLAN to isolate vibration data from corporate IT traffic.
• ✅ Managed Switches: Deploy industrial-grade switches with Quality of Service (QoS) enabled for TDI traffic.
• ✅ IP Management: Conduct a full network audit to eliminate duplicate IP addresses.
• ✅ EMI Shielding: Use shielded Cat6 cables to protect signals from VFD and motor interference.
• ✅ Firewall Rules: Confirm that ports 80, 443, and 502 remain open for authorized traffic.

Strategic Buyer’s Perspective on TDI Maintenance

Deciding between a firmware patch and a hardware replacement requires a clear audit of your current PLC and monitoring architecture. If your 3500/22M is over seven years old, a hardware refresh may be more cost-effective. Newer revisions offer improved processing power and better compliance with modern cybersecurity standards like IEC 62443. Always verify the rack’s physical revision before purchasing a replacement module to ensure backplane compatibility.

Industrial Application Scenarios

• Power Generation: Ensuring uninterrupted vibration data for steam turbine protection during peak loads.
• Oil & Gas Refineries: Remote monitoring of centrifugal compressors located in hazardous, high-interference areas.
• Petrochemical Plants: Integrating TDI data into an Emerson DeltaV or Honeywell Experion DCS via Modbus.

For genuine Bently Nevada components and expert technical guidance, visit PLCDCS HUB Limited. We help you maintain the integrity of your most critical machinery protection systems.

Frequently Asked Questions (FAQ)

1. Why does my 3500/22M disconnect specifically during heavy plant activity?
This is likely due to Electromagnetic Interference (EMI) or network congestion. When large motors start, they create electrical noise that can disrupt unshielded Ethernet cables. Check your shielding and grounding immediately.

2. Can I use a standard office router for my TDI connection?
We strongly advise against this. Standard routers lack the temperature ratings and deterministic processing of industrial switches. They often cause the exact TCP/IP timeouts you are trying to avoid.

3. Is the 3500/22M a drop-in replacement for the older 3500/20 RIM?
No, the 3500/22M TDI offers much higher data throughput and different configuration requirements. While it fits the same rack, you must update your System 1 software and rack configuration files to support the TDI.
