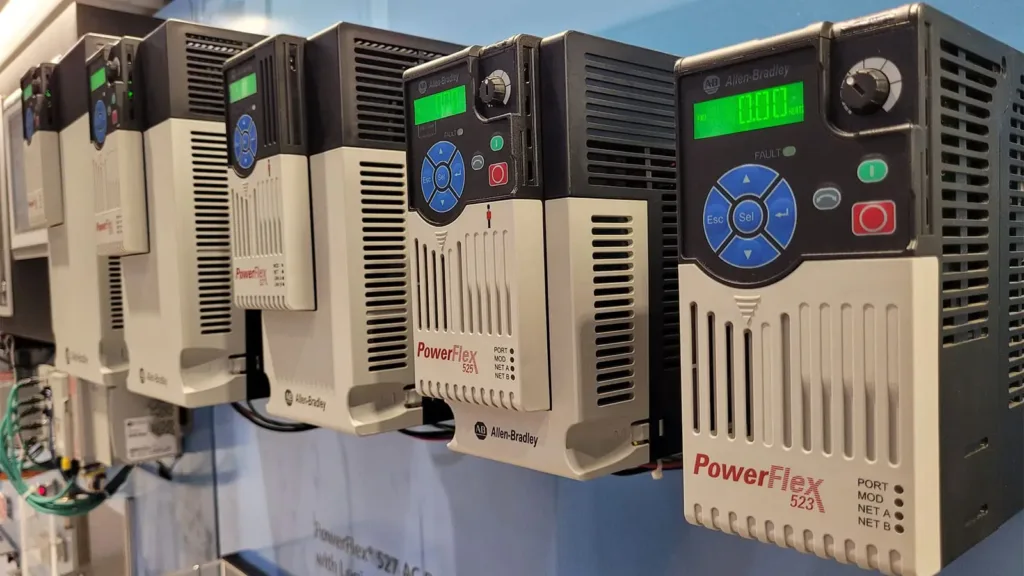

A Guide to Setting Up Safe Torque Off (STO) on the PowerFlex 525

As an experienced controls engineer, I know machine safety is crucial. Safe Torque Off (STO) is a key safety feature. It is a vital function on the PowerFlex 525. It ensures the motor’s power is safely removed. This prevents unexpected starts. This guide will walk you through the setup. It will make your machines safer.

Understanding Safe Torque Off (STO)

STO is a safety function. It removes the power from the motor. This stops the motor from generating torque. The motor then coasts to a stop. This is a critical safety feature. It protects people during maintenance. It also helps prevent machine damage. STO is not a braking function. It does not stop the motor quickly. It just removes power safely.

The Setup Process: A Step-by-Step Guide

Setting up STO on the PowerFlex 525 is straightforward. Here is a simple, effective process.

• First, disconnect all power to the drive. This is very important. Always follow lockout/tagout procedures. This ensures your safety.
• Locate the STO terminals on the drive. They are labeled “STO1” and “STO2”.
• Connect these terminals. Connect them to a safety relay. Or connect them to a safety controller. Use a certified safety device. These devices must meet safety standards. They are designed for this purpose.
• Next, wire the safety circuit. This circuit will de-energize the STO inputs. This removes power from the motor. When the safety circuit is active, the drive’s output is disabled.
• Once wired, restore power. The drive should report a “STO” fault. This shows the circuit is working. The drive’s output is disabled.
• Finally, clear the fault. Do this by closing the safety circuit. The drive will then be ready to run.

Important Considerations and Pro Tips

• STO is an important safety feature. But it is not a complete safety system. It is one part of a larger system. Always follow all local safety standards.
• Use high-quality safety components. Do not use standard relays. They are not rated for safety. A certified safety relay is essential.
• Consider a two-channel circuit. This improves reliability. It also increases safety. It helps prevent a single-point failure.
• Test your system regularly. This confirms it is working correctly. It is a critical part of maintenance.
• STO is designed for safety. It is not for emergency stops. An emergency stop might use a separate, dedicated circuit. This circuit can disable the entire machine.

Conclusion

Setting up Safe Torque Off on the PowerFlex 525 is essential. It greatly improves machine safety. A proper setup protects your team. It also protects your equipment. Following these steps helps ensure your system is safe.
