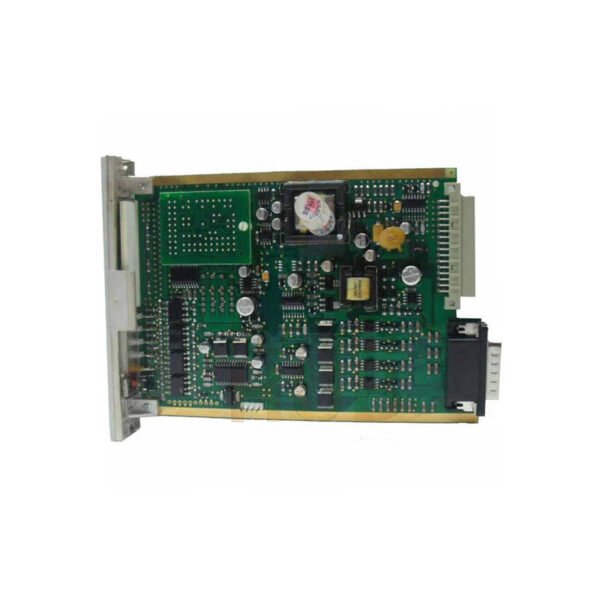

05704-A-0135 Honeywell Input Module Series for Industrial Control

Description

Product Overview

• Brand: Honeywell
• Model: 05704-A-0135
• Product Type: Control Card Input Module
• Input Format: 4–20mA Analog Current
• This module collects field signals with high accuracy.
• It links sensors to control systems.
• The design suits harsh industrial sites.

Key Product Benefits

• Four channels reduce wiring cost.
• Stable current input improves data quality.
• Low power draw protects system power.
• Wide temperature range supports outdoor cabinets.
• Proven Honeywell build quality.

Electrical and Signal Parameters

• Channel Count: 4 independent inputs
• Input Range: 4–20mA linear
• Accuracy: ±0.1% of full scale
• Input Impedance: ≥ 250 Ω
• Resolution: Fine signal step detection
• Noise Immunity: High resistance to interference
• Power Consumption: ≤ 30 mA at 24 VDC

Communication Capability

• Interface: RS-485
• Supports long-distance signal transfer.
• Works with distributed control systems.
• Stable data exchange with controllers.

Environmental Performance

• Operating Temperature: -40 °C to +85 °C
• Storage Temperature: -40 °C to +85 °C
• Humidity: 5% to 95% non-condensing
• Handles extreme climate changes.

Mechanical and Mounting

• Mounting: DIN rail or panel mount
• Compact body saves cabinet space.
• Strong terminals ensure firm wiring.

Installation Tips

• Use stable 24VDC power supply.
• Keep signal and power cables separate.
• Label channels during wiring.
• Check polarity before power-up.

Operation and Maintenance

• No routine calibration needed.
• Periodic wiring checks are advised.
• Stable readings reduce service work.

Typical Applications

• Process control signal collection.
• Oil and gas instrumentation panels.
• Power plant monitoring systems.
• Chemical and water treatment plants.

Packaging and Shipping

• One Honeywell input module.
• Anti-static industrial packaging.
• Delivery via FedEx, UPS, DHL.

Warranty Information

• 12-month warranty included.
• Covers normal industrial use.
• After-sales support available.

FAQ

• Can this module handle long cable runs?
• Yes, current loops work well over long distances.
• Is this module suitable for noisy environments?
• Yes, it has strong noise resistance.
• How do engineers ensure best accuracy?
• They use quality power supplies.
• Does mounting type affect performance?
• No, both mounting options perform equally.
• How should buyers select channel count?
• Match channel number to sensor quantity.
