Description

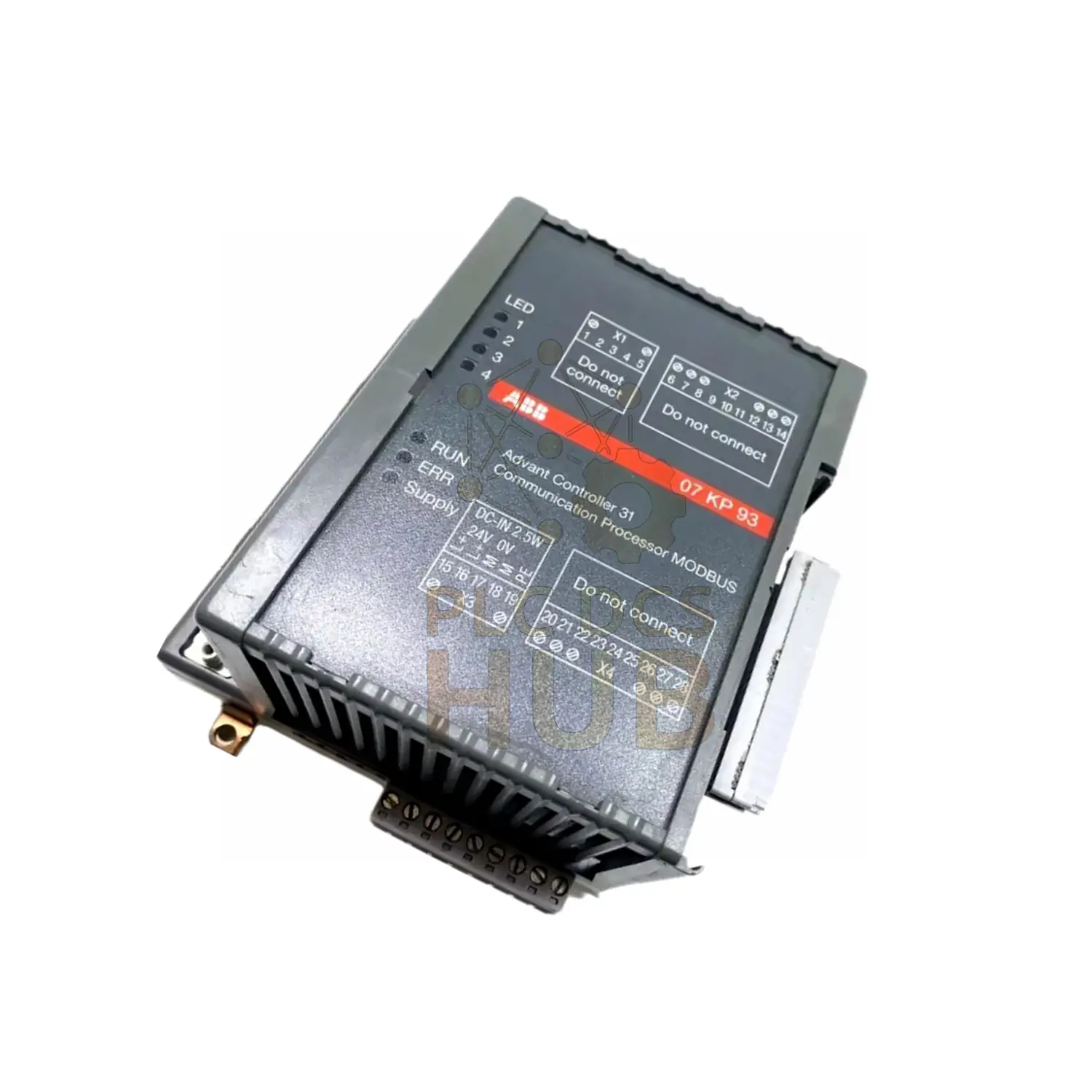

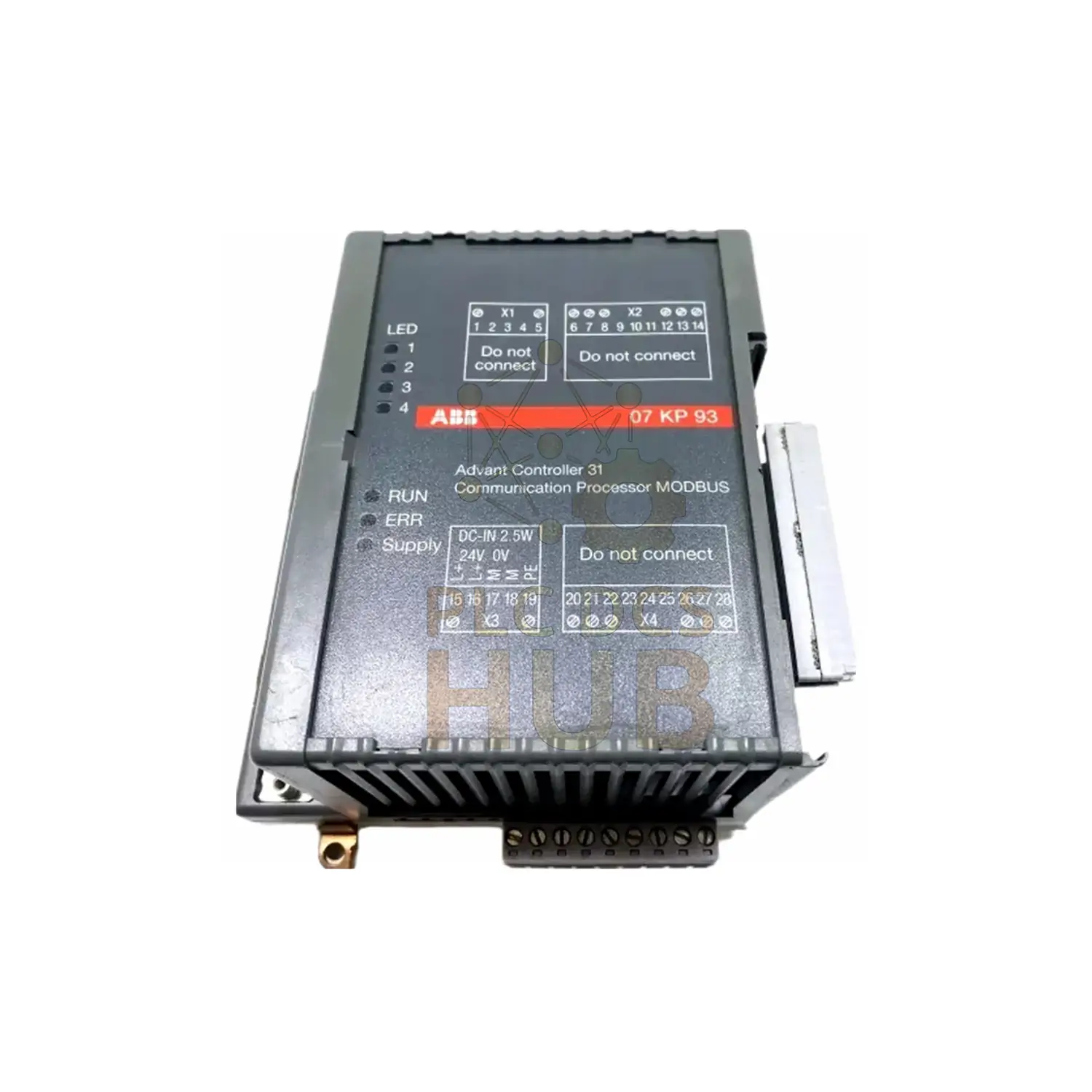

RCOM 07 KP 93 Industrial Communication Module: Master/Slave Flexibility
Core Capabilities
- Configurable as RCOM master or slave
- Supports networks with up to 254 slaves (8 with MasterPiece 200)
- Full RCOM services: cold/warm start, normalization, clock sync
- Dual serial interfaces: RCOM (RS-232/RS-485) & CONSOLE (RS-232)
- Software clock for PLC program integration
- RCOM+ compatible (index b and higher)
Technical Specifications
- Model: GJR5253200R1161 R303
- Interfaces: 2 serial (RCOM/CONSOLE), 1 parallel
- LED Indicators: RUN, ERR, Supply, RxD, TxD, BLK
- Conductor: Max 2.5 mm²
- Baud Rates: RCOM: 300-19200, CONSOLE: 9600
- Electrical Isolation: RCOM interface
Power Requirements
- Voltage: 24 V DC
- Power Dissipation: 2.5 W (typical)
- Current: 210 mA max @24V
- Protection: Reverse polarity protection
LED Status Indicators
- Supply (Green): Power present
- ERR (Red): Critical error
- RUN (Green): Communication ready
- RxD/TxD (Yellow): Data transmission
- BLK (Yellow): Protocol status
Mechanical Design
- Dimensions: 140 × 120 × 85 mm
- Weight: 450 g (0.99 lbs)
- Mounting: DIN rail (EN 50022–35)
- Fastening: 4 × M4 screws
- Terminals: Removable screw-type blocks
Package & Support
- 1× RCOM 07 KP 93 Module
- 12-month manufacturer warranty
Global Shipping
FedEx | UPS | DHL – International Delivery
Industrial Applications
- Factory automation systems
- PLC communication networks
- Industrial control cabinets
- Process monitoring installations
FAQ
Q: Maximum slave devices?
A: 254 slaves standard, 8 with MasterPiece 200
Q: RCOM+ compatibility?
A: Supported from hardware index b onwards
Q: Console port function?
A: RS-232 interface for commissioning and diagnostics
Q: Power redundancy?
A: Single 24V DC input with reverse protection
