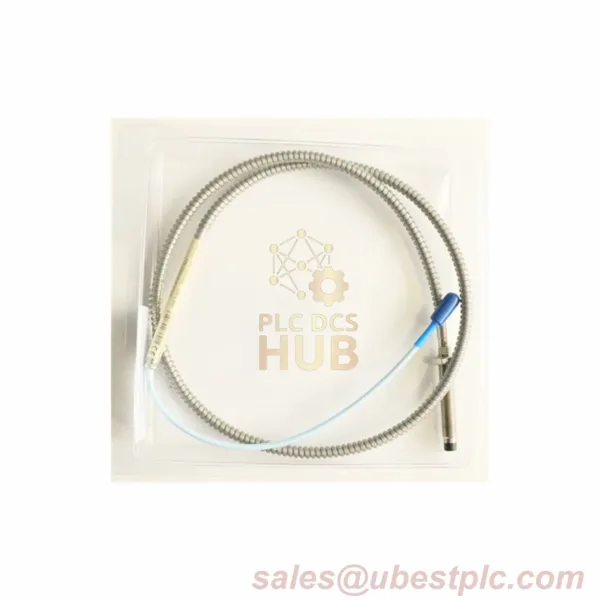

Bently Nevada 3300 XL Proximity Probe: Precision Machinery Monitoring
Product Description
Professional-grade 11mm proximity probe for industrial vibration monitoring. Built with stainless steel casing and high-temperature PPS tip, it delivers reliable performance in extreme conditions (-52°C to +177°C). Features 1-meter FEP-insulated triaxial cable with ClickLoc connector for quick installation. Ideal for predictive maintenance on turbines, compressors, and rotating equipment.
Technical Specifications
- Brand/Model: Bently Nevada 330702-01-20-10-02-00
- Sensing Range: 11 mm
- Cable Length: 1.0 meter (3.3 ft)
- Connector: Miniature coaxial ClickLoc
- Thread Size: 1/2-20 UNF
- Case Material: AISI 304 Stainless Steel
- Tip Material: PPS (Polyphenylene sulfide)
- Temp Range: -52°C to +177°C (-62°F to +351°F)
- Resistance: 5.9 ± 0.5 Ω
- Max Bend Radius: 25.4 mm (1.0 in)
Installation Guide
- Apply 15.2 N•m (133 in•lb) torque to case threads
- Max thread engagement: 0.750 in (19 mm)
- Finger-tighten connectors only
- Avoid exposing to temperatures below -34°C during installation
Packaging & Shipping
- Unit weight: 0.17 kg
- Includes probe only
- Worldwide shipping via FedEx/UPS/DHL
- 12-month warranty
FAQ
Q: Pressure rating for this probe?
A: Not pressure-tested. Contact factory for custom pressure tests.
Q: Minimum operating temperature?
A: -34°C is safe limit. Below this may damage seals.
Q: Is COO (Certificate of Origin) included?
A: Available as add-on service only.
