Description

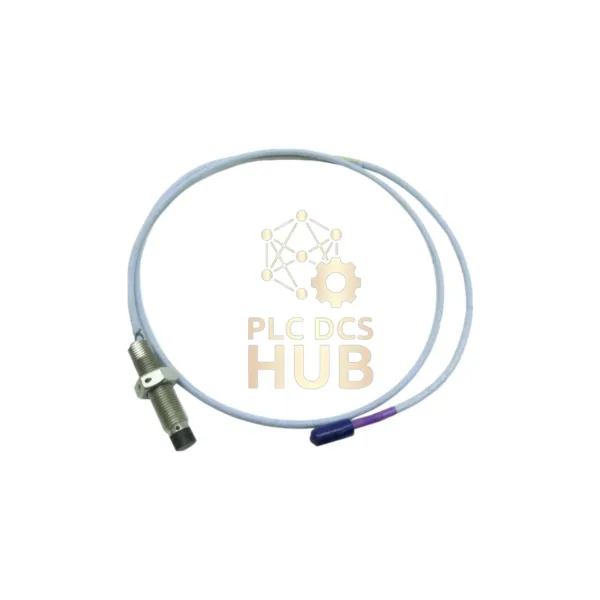

Bently Nevada 3300 XL 11mm Short-Range Proximity Probe
Product Identification Breakdown
- Full Product Code: 330707-00-10-10-12-05
• 330707 = Base probe model
• 00 = 0″ unthreaded section
• 10 = 1.0″ case length
• 10 = 1.0 meter cable
• 12 = FluidLoc cable with ClickLoc
• 05 = Multiple agency approvals
Critical Measurements
Electrical Resistance: 5.9Ω ±0.5Ω
Temperature Range: -51°C to +177°C
Thread Specifications: 5/8-18 UNF (0.938″ max depth)
Cable Specifications: 1m FluidLoc triaxial
Min Bend Radius: 25.4mm (1.0 inch)
Mechanical Specifications
Installation Torque:
– Maximum: 45.2 N•m (400 in•lb)
– Recommended: 15.2 N•m (133 in•lb)
Connector Torque: Finger tight (max 0.565 N•m)
Seal Material: Viton O-ring
Weight: 0.17 kg
Environmental Ratings
Temperature Warning: Avoid below -34°C
Pressure Seal: Not factory tested
Cable Protection: FluidLoc moisture resistance
Material Certification: Multiple global approvals
Construction Details
Tip: PPS thermoplastic
Body: 304 stainless steel
Cable: 75Ω triaxial FEP
Connector: ClickLoc miniature coaxial
Technical FAQs
- Q: What’s the difference between options 11 and 12?
A: Option 12 has FluidLoc cable without connector protector - Q: Can I use this in explosive environments?
A: Yes, multiple agency approvals include hazardous locations - Q: Minimum installation clearance needed?
A: Requires 1.0″ case length + cable bend radius space - Q: Is calibration required after installation?
A: No, but system verification recommended - Q: Compatible with all 3300 XL monitors?
A: Yes, works with standard 1m Proximitor systems
