Description

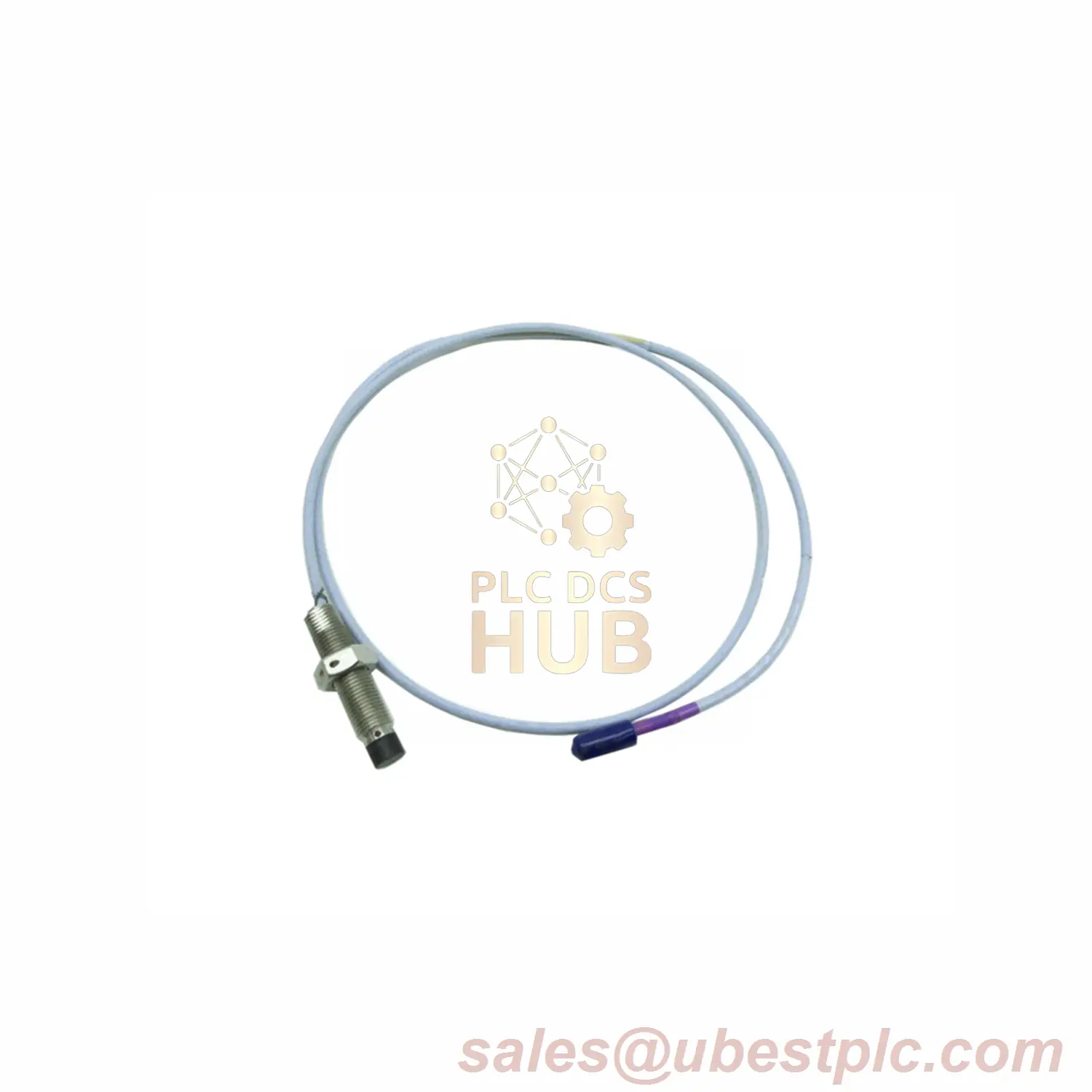

Bently Nevada Short Proximity Probe with Protector
Basic Product Info
Part Number: 330707-00-24-10-01-00
1-meter probe with connector protector. Made in USA. For tight spaces.
Part Number Explained
The numbers tell about the probe:
- 330707: 11mm probe, 5/8-18 thread, no armor
- 00: No unthreaded part
- 24: Case length 2.4 inches
- 10: Cable length 1.0 meter
- 01: ClickLoc connector with protector
- 00: No special approvals
Key Numbers
Electrical
- Resistance: 5.9Ω ±0.5Ω
- Cable type: 75Ω triaxial
Physical
- Thread: 5/8-18 UNF
- Max thread: 0.938 inch
- Weight: 0.17 kg
- Min bend: 25.4 mm
Temperature
- Works from -51°C to +177°C
- Do not use below -34°C
Setup Guide
- Mount torque: 15.2 N•m max
- Connector torque: Finger tight
- Seal: Viton O-ring
Fits With
Works with Bently Nevada 3300 XL systems. Uses standard cables.
Paperwork
Made in USA. Can add Certificate of Origin.
Shipping
Sent by FedEx/UPS/DHL. 12-month warranty included.
Questions Answered
Q: What is connector protector?
A: Extra cover to protect the plug
Q: Cable too short?
A: We have 5m and 9m options
Q: Can I use in hot places?
A: Yes, up to +177°C
Q: Thread size?
A: 5/8-18 UNF
Need setup pictures?
See installation examples here
