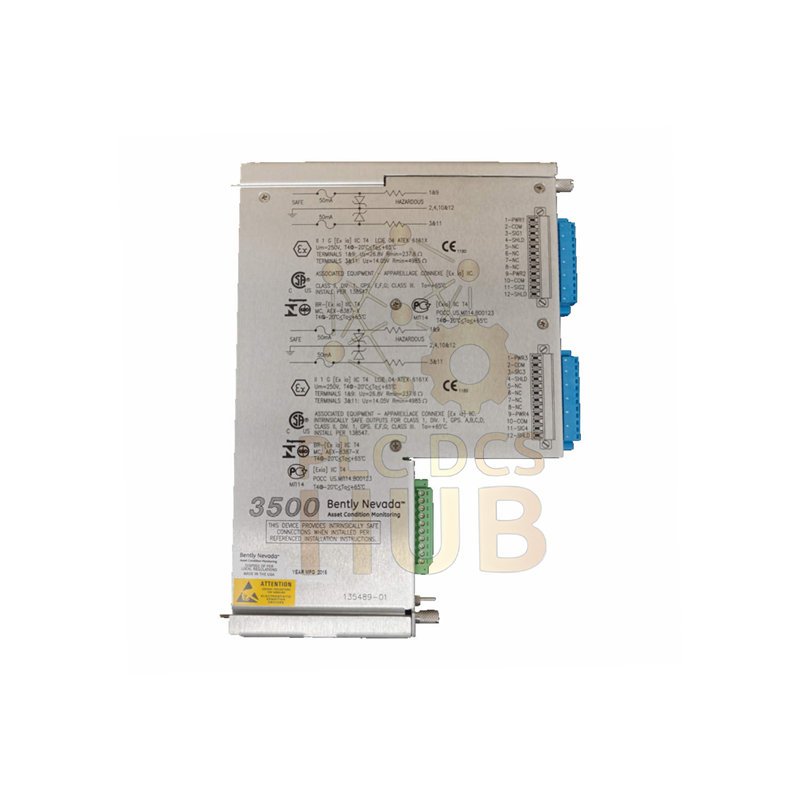

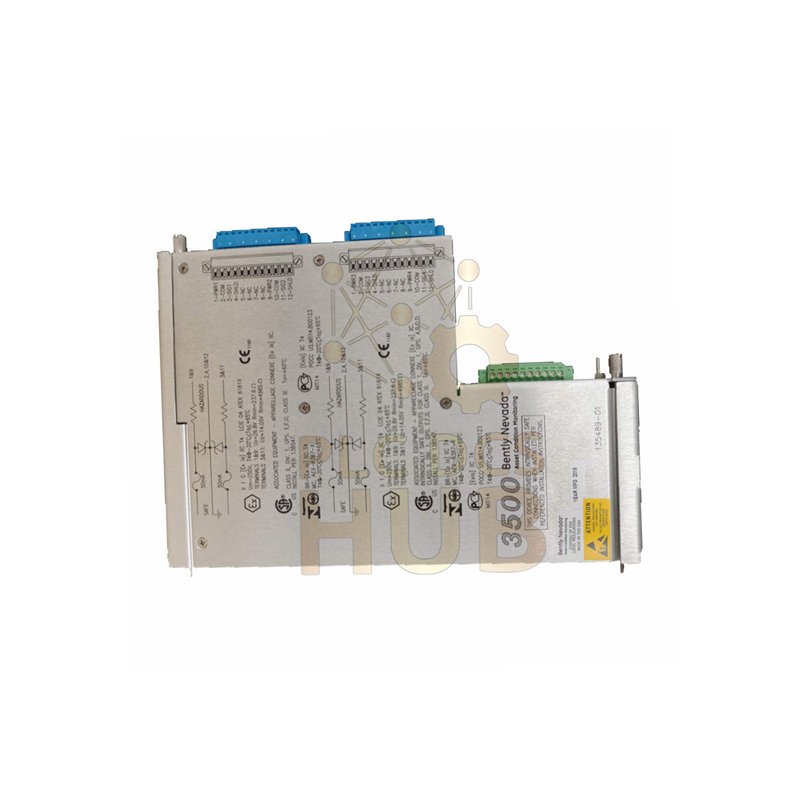

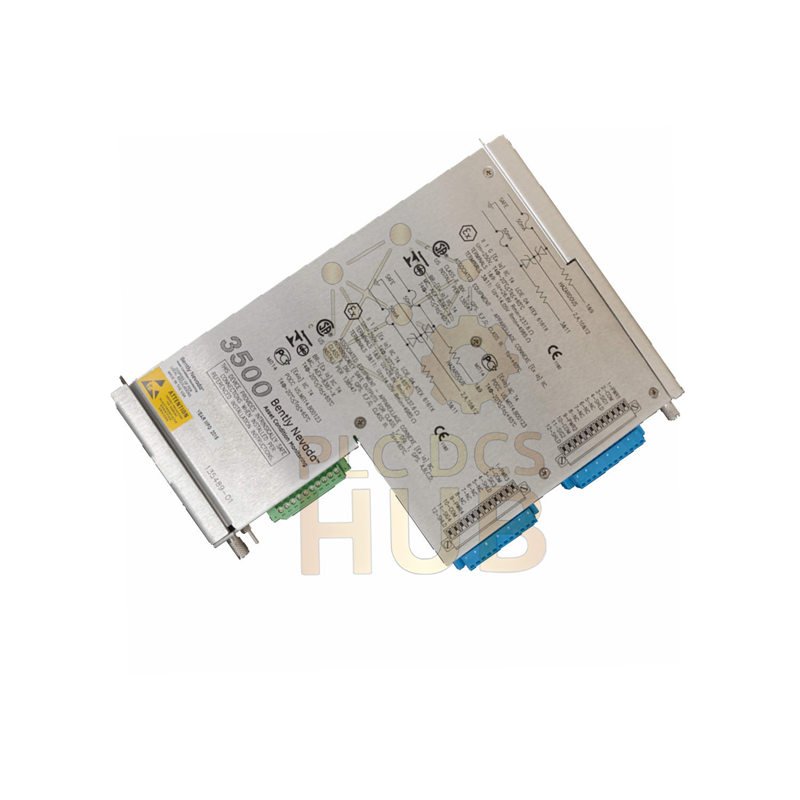

135489-01 Bently Nevada Seismic Proximitor I/O Module Solution

Description

Product Summary

• Bently Nevada 135489-01 is a seismic monitor I/O module.
• Built for proximity and accelerometer signal handling.
• Supports four independent measurement channels.
• Internal barrier design improves system safety.
• Ideal for rotating machinery protection systems.

Design Highlights

• Internal terminations reduce wiring errors.
• Fast signal conditioning improves response speed.
• Compact width saves rack space.
• Clear LEDs simplify system checks.

Input Capability

• Accepts proximity probe signals.
• Accepts accelerometer sensor signals.
• Four-channel architecture increases data density.
• Stable excitation ensures sensor consistency.

Signal Processing Performance

• Direct filter range from 4 Hz to 4000 Hz.
• Alternate filter range from 1 Hz to 600 Hz.
• Low-frequency gap filter at 0.09 Hz.
• Accuracy remains stable across filter settings.
• Typical accuracy reaches ±0.33% full scale.

Output Functions

• Buffered transducer output on each channel.
• Coax connectors allow clean signal access.
• Output impedance rated at 550 ohms.
• Integrated transducer power at -24 Vdc.

Recorder Output Parameters

• Current output range from 4 to 20 mA.
• Signal level follows monitor full scale.
• Voltage compliance up to +12 Vdc.
• Load resistance supports 0 to 600 ohms.
• Resolution reaches 0.3662 microamp per bit.

Status Indication

• OK LED confirms normal operation.
• TX/RX LED shows communication activity.
• Bypass LED displays bypass condition.

Environmental Ratings

• Operating temperature from -30 °C to +65 °C.
• Storage temperature from -40 °C to +85 °C.
• Humidity tolerance up to 95 percent.
• Designed for non-condensing environments.

Compliance and Approvals

• Meets EN 61000-6-2 immunity standards.
• Meets EN 61000-6-4 emission standards.
• RoHS compliant per Directive 2011/65/EU.
• Approved for Class I Zone 2 locations.
• Certified for ATEX and IECEx Zone 2 use.

Mechanical Data

• Height 241.3 mm.
• Width 24.4 mm.
• Depth 163.1 mm.
• Net weight approximately 0.46 kg.

Typical Applications

• Steam and gas turbine monitoring.
• Compressor vibration supervision.
• Critical pump protection systems.
• Balance of plant machinery.

Service and Logistics

• 12-month warranty</span against manufacturing defects.
• Worldwide shipping via FedEx, UPS, and DHL.
• Industrial-grade packaging for safe transport.

Professional FAQ

• Is this module suitable for continuous operation?
• Yes, it is designed for 24/7 industrial use.
• Does it simplify commissioning work?
• Internal terminations reduce setup time.
• Can it improve fault diagnosis?
• Buffered outputs allow live signal checks.
• What should engineers verify before purchase?
• Confirm sensor type and channel requirements.
• Is this module future-proof?
• It supports modern compliance and safety needs.
