Description

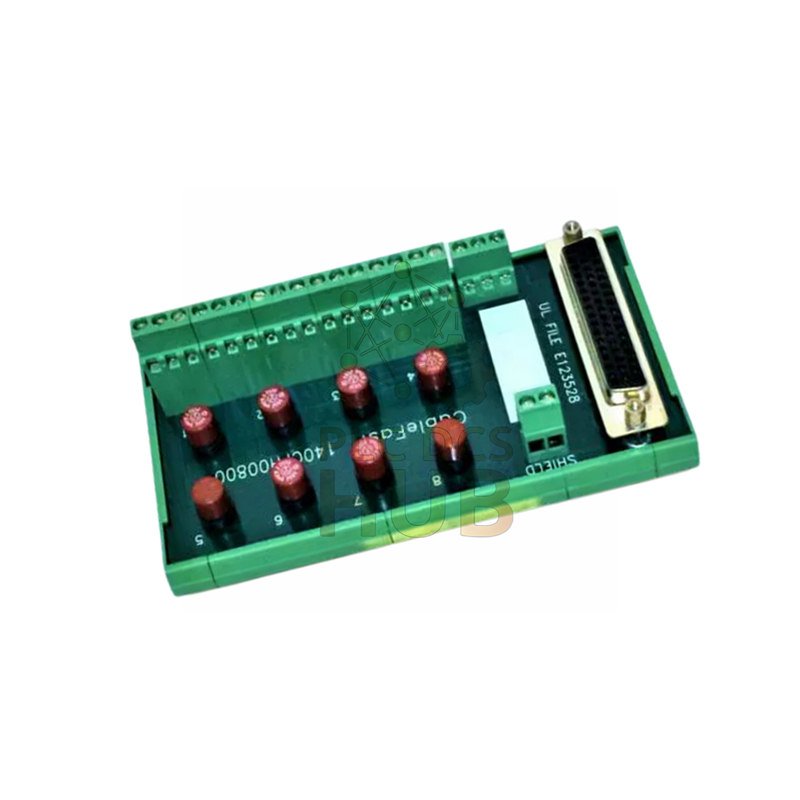

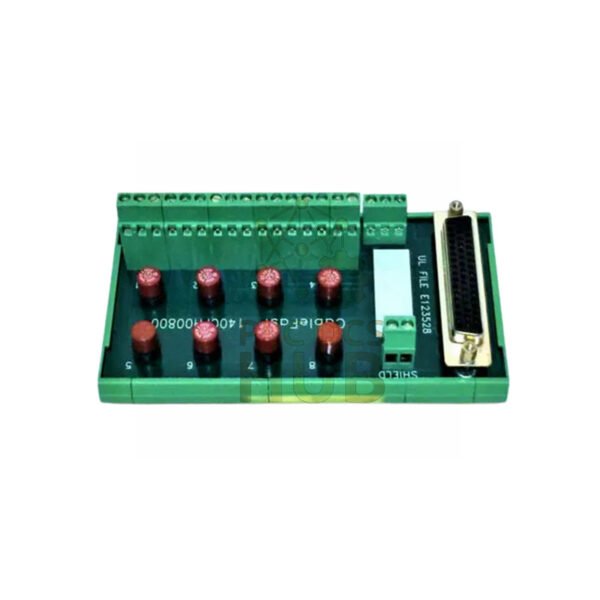

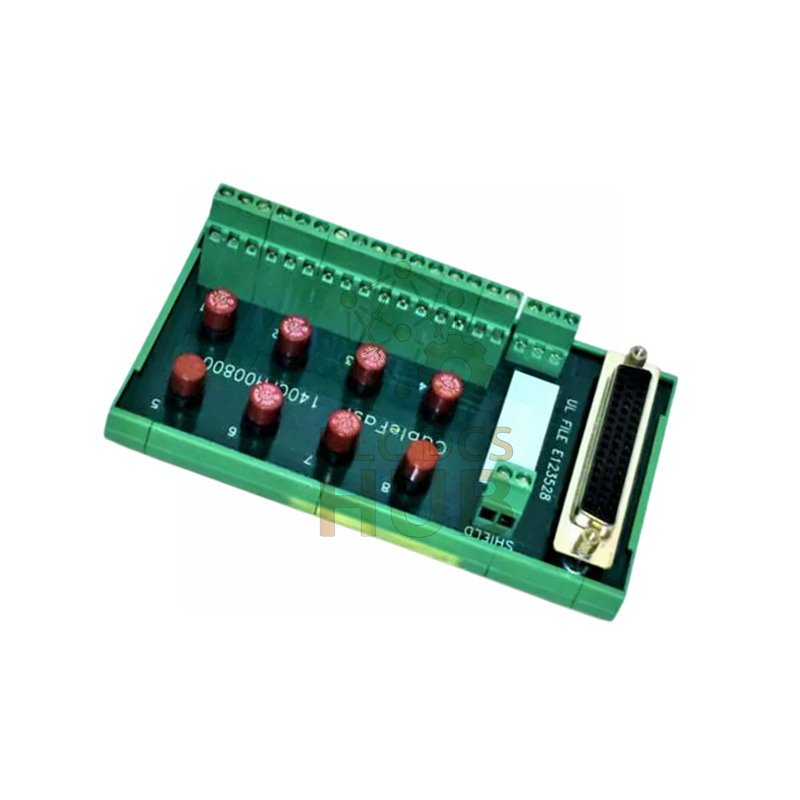

Schneider Electric 140CFH00800 Analog Input Block
This 140CFH00800 block is a key part for the Modicon Quantum system. It helps connect analog signals safely. It has fuses to protect your equipment. Setup is quick and easy on a DIN rail.
Product Highlights
- 8 fused points for analog inputs (0.063 A each).
- Provides connections for signal, power, and shield.
- Works with both field power and loop power setups.
- Simple connection with a 50-pin SUB-D connector.
- Easy DIN rail mounting saves time.
Technical Specifications
- Brand: Schneider Electric
- Model: 140CFH00800
- Series: Modicon Quantum
- Type: Analog Input Terminal Block
- Fuse Rating: 0.063 A per point
- Number of Points: 8
- Terminals per Point: 4 (+, -, shield, power)
- Connection: 50-pin SUB-D (Female)
- Mounting: Standard 35mm DIN Rail
- Shipping Weight: 400g (Single Unit)
Compatible Modules
The 140CFH00800 is made for use with:
- 140AVI03000 Analog Input Module
- 140ACI03000 Analog Input Module
Have a question? Support, Inquiry, Contact: +86 158 8020 0923
Package Options
- Single Pack (PCE): 1 unit per box.
- Bundle Pack (S04): 10 units per box.
- Fast shipping with FedEx, UPS, or DHL.
- All orders come with a 12-month warranty.
Frequently Asked Questions
- What is the main use of this block?
It is used to safely wire analog input signals to your Quantum PLC, providing fused protection. - Why are there 4 terminals per point?
They are for the positive signal, negative signal, shield/wire, and power supply connection. - Can I use this for voltage and current inputs?
Yes, it supports both types of analog signals commonly used with the compatible modules. - How do I know if a fuse is blown?
You will need to check the fuse physically or monitor for a loss of signal from the input module. - Is the connector included?
Yes, the 50-pin female SUB-D connector is part of the terminal block assembly.
Get More Information
- For full details, download the product manual here.
