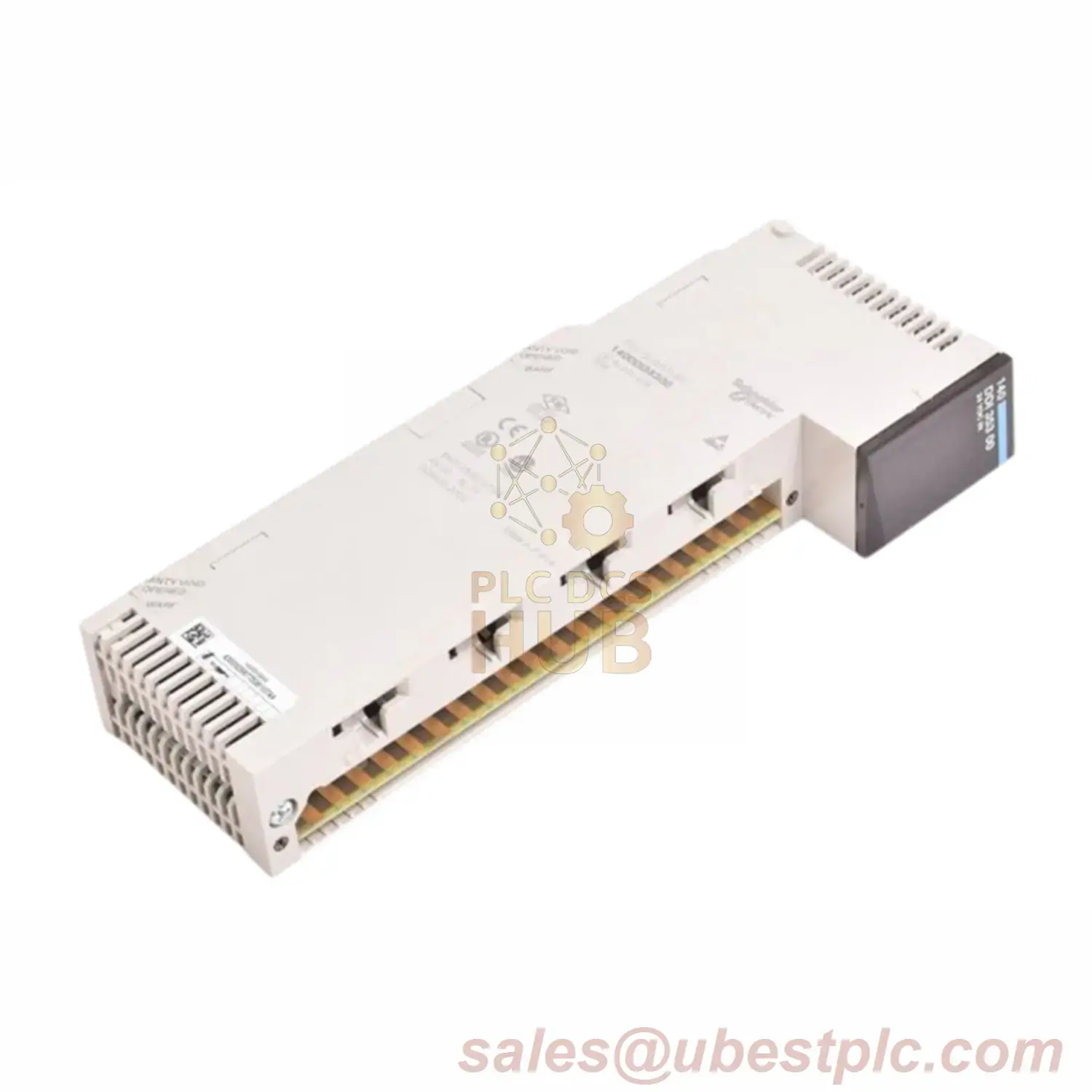

Modicon Quantum 140 DDI 353 00 – 32-Channel DC Input Module
Description
32-point DC input module for Modicon Quantum PLCs. Handles low-voltage industrial signals with fast response. Perfect for factory machines and process control.
Technical Data
| Brand | Schneider Electric |
| Model | 140 DDI 353 00 |
| Series | Modicon Quantum |
| Input Channels | 32 points (4 groups) |
| Voltage Range | 19.2-30V DC |
| Response Time | ≤1ms |
| Logic Type | Sinking (Positive) |
| Isolation | 1780V group-to-bus |
| Power | 1.7W + 0.36W/point |
Installation
- Mount on Quantum baseplate
- Connect 24V DC power
- Wire inputs per group (8 points/group)
- Allocate 2 input words in PLC config
Diagnostics & Maintenance
- 32 green LEDs (input status)
- Red LED for faults
- Green LED for bus communication
- Check voltage (stay within 19.2-30V DC)
Packing List
- 140 DDI 353 00 module
- Mounting clips
Shipping
Global delivery via FedEx, UPS, or DHL. Tracking provided.
FAQ
Q: Voltage for “ON” state?
A: 15-30V DC
Q: Max continuous voltage?
A: 30V DC (56V surge protected)
Q: Power consumption?
A: 1.7W base + 0.36W per active point
