Description

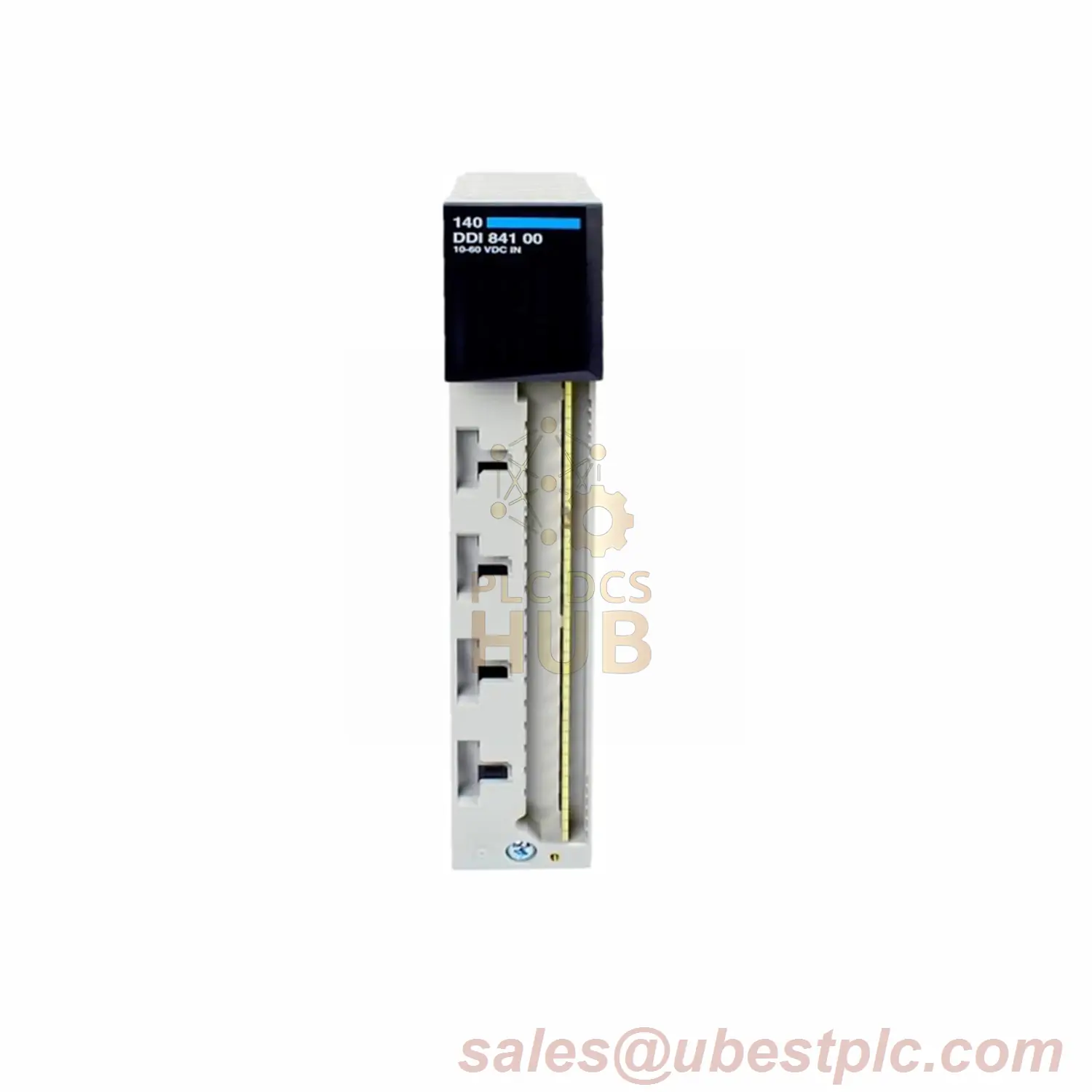

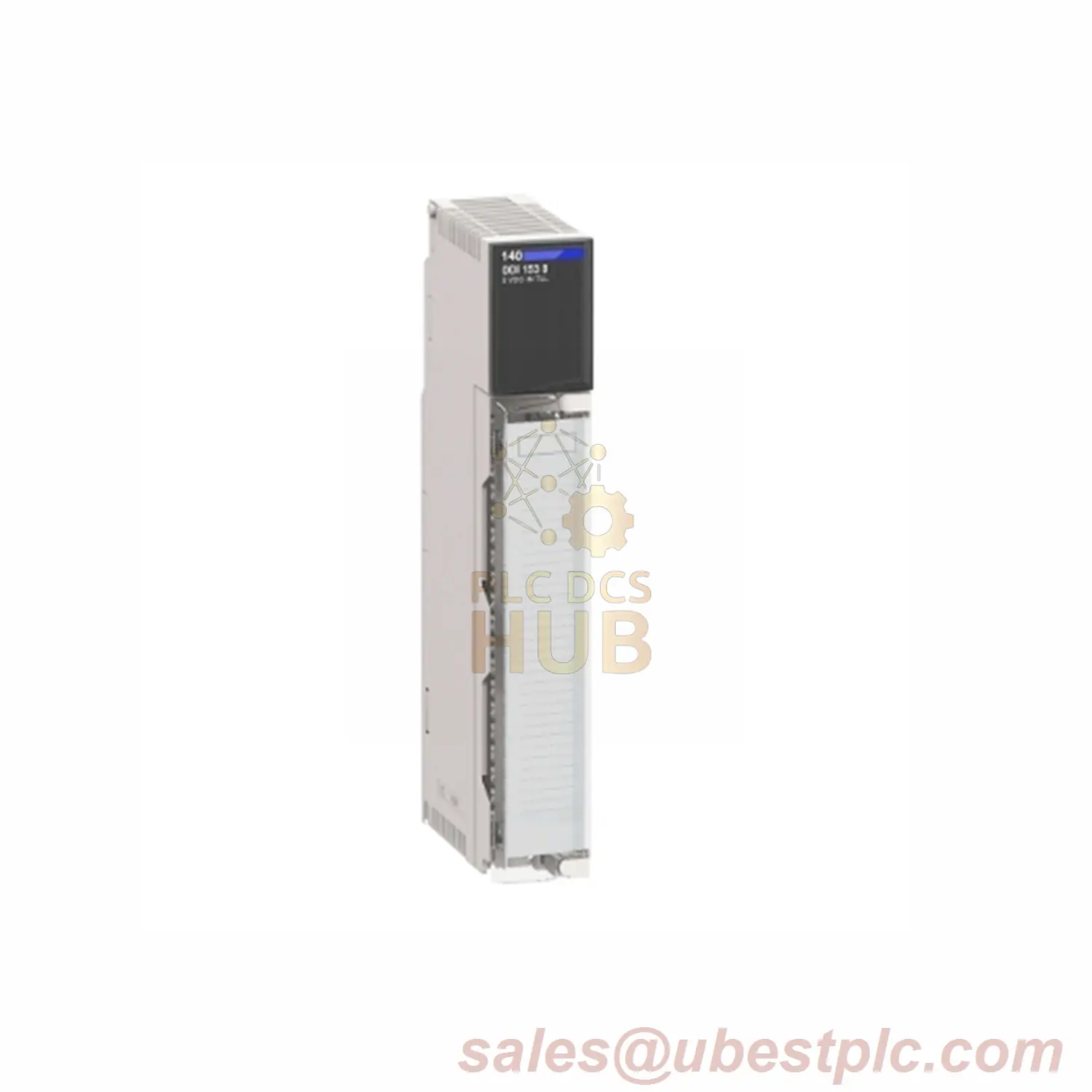

140DDI84100 Modicon Quantum 16-Channel DC Input Module
High-density discrete input module for industrial automation. Handles 10-60V DC signals with 4ms response time. Ideal for harsh environments with UL508 and FM Class 1 Div 2 certifications.
???? Technical Specifications
| Brand | Schneider Electric |
| Series | Modicon Quantum |
| Input Type | Positive (sink) |
| Voltage Range | 10-60V DC |
| State 1 Voltage | 11-24V @ 24V ±20% |
| State 0 Voltage | 0-5V @ 24V ±20% |
| Isolation | 2500Vrms (group-bus) |
| Bus Current | 200 mA |
Input Specifications
- Current Draw:
- 24V: 6-30 mA
- 48V: 2-15 mA
- Response Time: 4ms (both 0→1 and 1→0)
- Max Voltage: 75V absolute
- Switching Frequency: ≤100 Hz
Environmental Ratings
- Operating Temp: 0°C to 60°C
- Humidity: 95% non-condensing
- Altitude: ≤5000m
- Certifications: UL508, CSA, FM Class 1 Div 2
- ESD Protection: 8kV air / 4kV contact
Installation Guide
- Install in Quantum rack
- Requires 1 input word addressing
- Maintain 5cm clearance for ventilation
- Follow group isolation guidelines
LED Indicators
- Green: Bus communication (Active)
- Red: External fault (F)
- 16 Green LEDs: Input status (one per channel)
Packaging Details
- Input module
- Termination accessories
- Dimensions: 31.21 x 16.64 x 4.64 cm
- Weight: 0.44 kg
- GTIN: 3595861000094
FAQ
Q: Voltage compatibility?
A: Works with 12V, 24V, 48V, and 60V DC systems
Q: Isolation ratings?
A: 2500Vrms (group-bus), 700Vrms (group-group)
Q: Hazardous area certification?
A: FM Class 1 Division 2 approved
