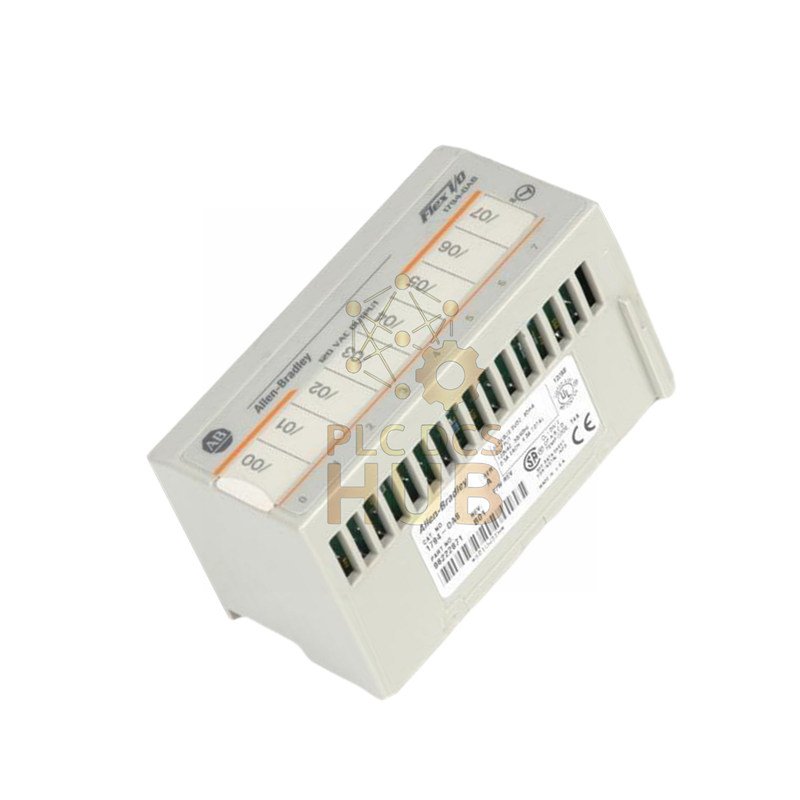

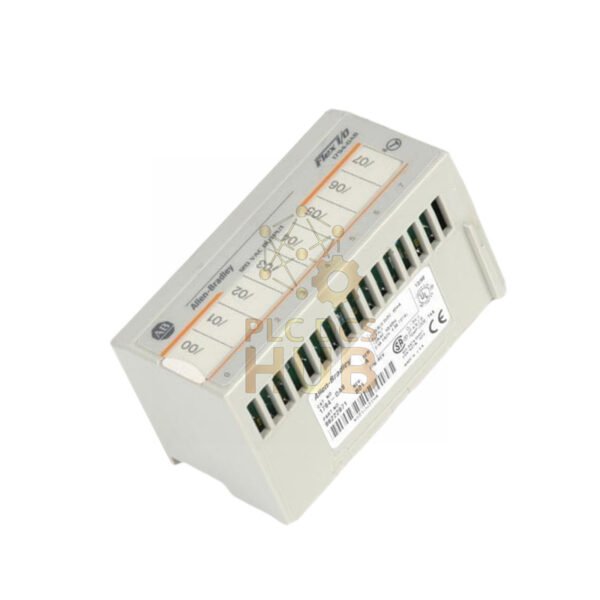

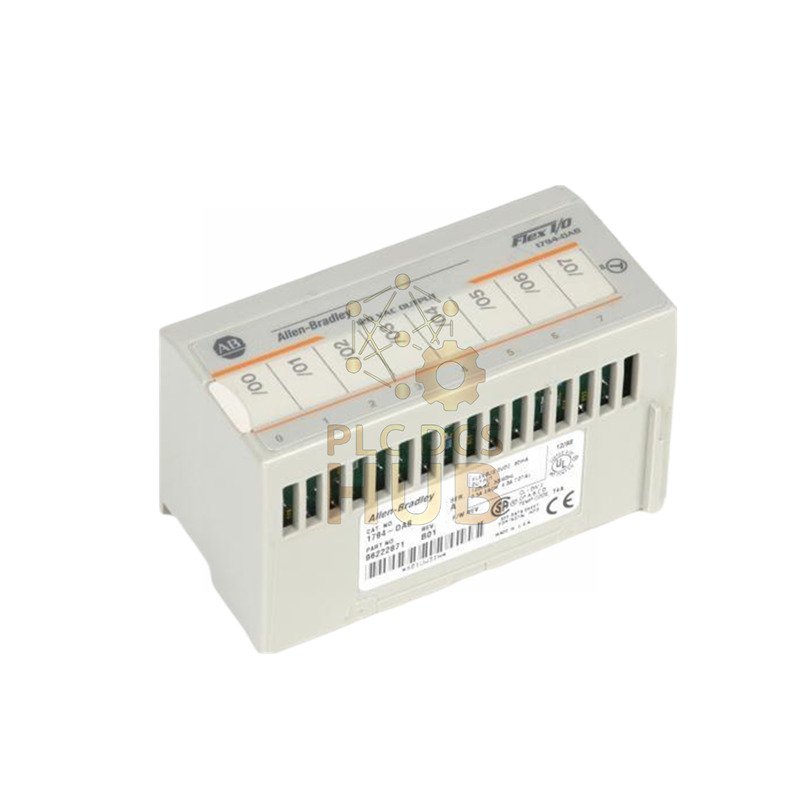

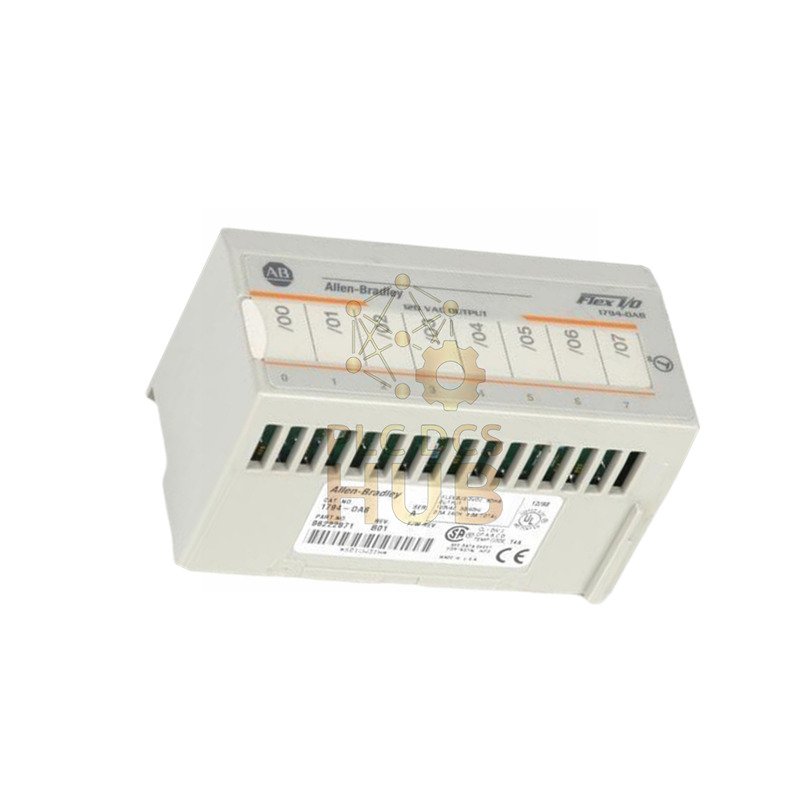

Allen-Bradley 1794-OA8 Flex I/O 120V AC Digital Output Module
Product Overview
The Allen-Bradley 1794-OA8 is an 8-channel AC digital output module from the trusted Flex I/O product line by Rockwell Automation. It is designed for standard industrial applications, providing reliable control for your automation system. This module helps to quickly diagnose issues with field devices and wiring, reducing startup and troubleshooting time to keep your operations running smoothly.
Technical Specifications
| Brand | Allen-Bradley |
| Model | 1794-OA8 |
| Series | Flex I/O |
| Output Type | 8 Points, Non-isolated, AC |
| Voltage Range | 85 – 132V AC |
| Current Rating | 4.0A (500mA per point, see details) |
| On-state Current | 5 mA min. per output |
| Leakage Current | 2.25 mA max. |
| Isolation | 120V Continuous |
| Power Dissipation | 4.1W @ 0.5A |
| Operating Temperature | See current derating table |
Installation & Compatibility
This module mounts directly onto these Allen-Bradley terminal base units: 1794-TB3, 1794-TB2, 1794-TB3S, 1794-TBN, 1794-TB3K, 1794-TBKD, 1794-TBNK, 1794-TBNF, 1794-TBNFK, 1794-TB3SK. If using the 1794-TBN base, you will need auxiliary terminal strips.
Packaging & Warranty
Each module is shipped in its original factory packaging. We provide a solid 12-month warranty on this product for your peace of mind.
Shipping Information
We ship worldwide via reliable couriers: FedEx, UPS, and DHL.
