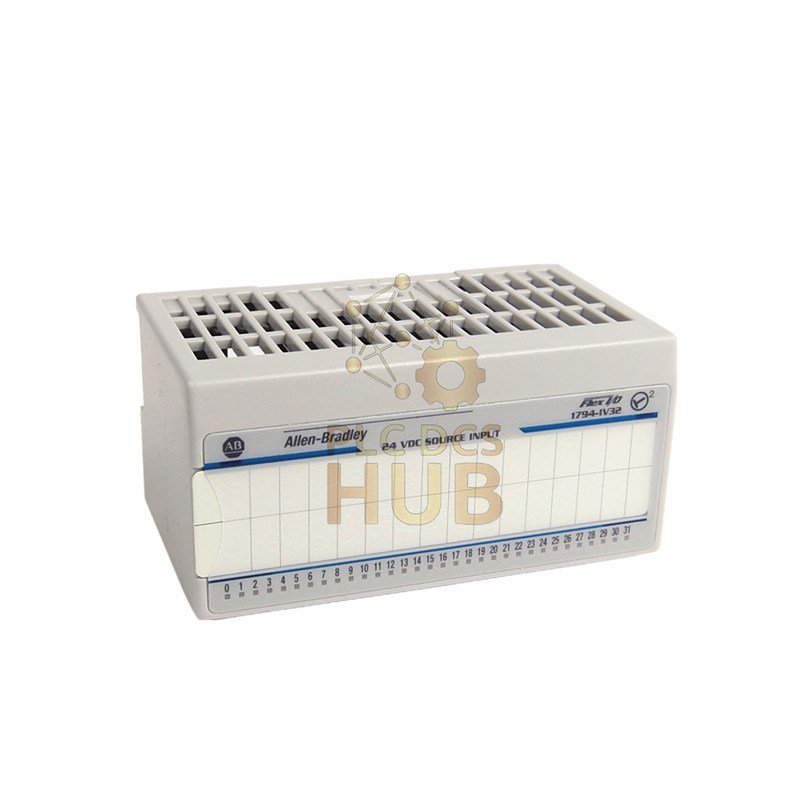

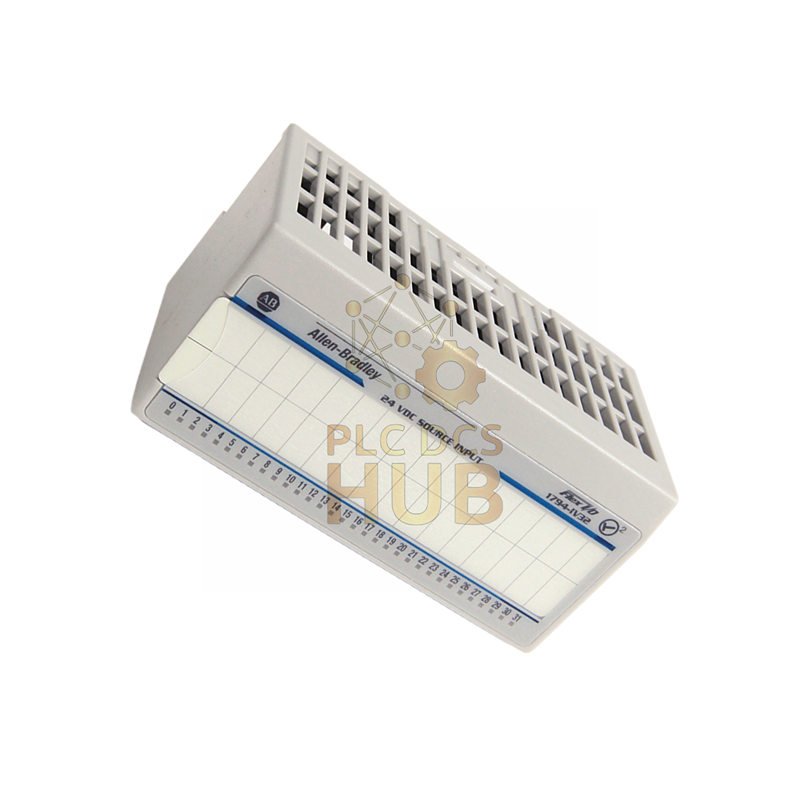

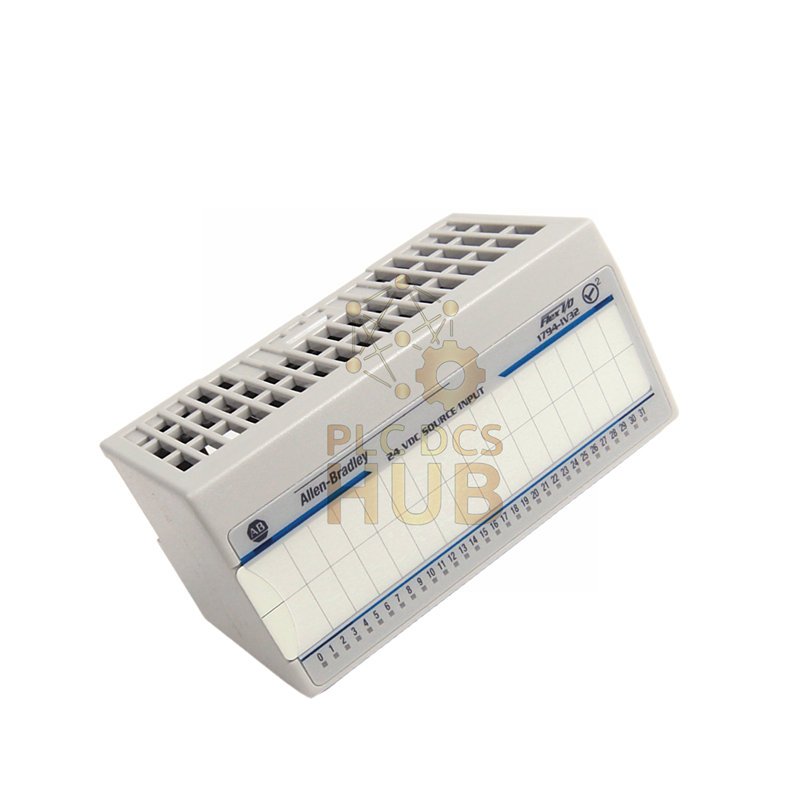

Allen-Bradley 1794-IV32 Flex I/O 32-Channel DC Input Module
High-density 32-channel DC input module for space-saving industrial applications. The Allen-Bradley 1794-IV32 offers maximum input capacity in a compact Flex I/O form factor with configurable filtering.
Technical Specifications
- Brand: Allen-Bradley (Rockwell Automation)
- Model: 1794-IV32
- Product Type: DC Input Module
- Input Channels: 32 sourcing inputs
- Voltage Range: 19.2-31.2V DC
- Nominal Voltage: 24V DC
- Input Current: 4.1mA @ 24V DC (2.0-6.0mA range)
- Filter Times: 0.25, 0.5, 1, 2, 4, 8, 16, 32ms (default 0.25ms)
- Flexbus Current: 40mA @ 5V DC
- Isolation Voltage: 50V continuous (850V DC tested)
- Response Time: Configurable via filter settings
- Operating Temp: -20°C to 70°C (-4°F to 158°F)
- Altitude Rating: Up to 6562 feet
- Pollution Degree: 2
- Overvoltage Category: II
- Dimensions: 3.7 x 3.7 x 2.7 inches
- Status Indicators: 32 yellow LEDs
- Mounting: DIN rail
- Compatible Bases: 1794-TB32, 1794-TB32S, 1794-TB62DS, 1794-TB62EXD4X15
Installation & Compatibility
Simple DIN rail mounting. Compatible with 1794-TB32 series terminal bases. Works with PLC5, SLC 500, CompactLogix, and ControlLogix controllers. Uses standard 24V DC field devices.
Warranty & Shipping
This product includes a 12-month warranty. We ship worldwide using FedEx, UPS, and DHL for reliable delivery.
Frequently Asked Questions
- How many input channels does it have?
It features 32 sourcing input channels for high-density applications. - What filter times are available?
8 configurable filter times from 0.25ms to 32ms to eliminate noise. - What is the operating voltage range?
It works with 19.2-31.2V DC, with 24V DC nominal. - Which terminal bases are compatible?
Works with 1794-TB32, 1794-TB32S, 1794-TB62DS, and 1794-TB62EXD4X15. - Does it have status indicators?
Yes, it has 32 yellow LED indicators – one for each input channel.
