Description

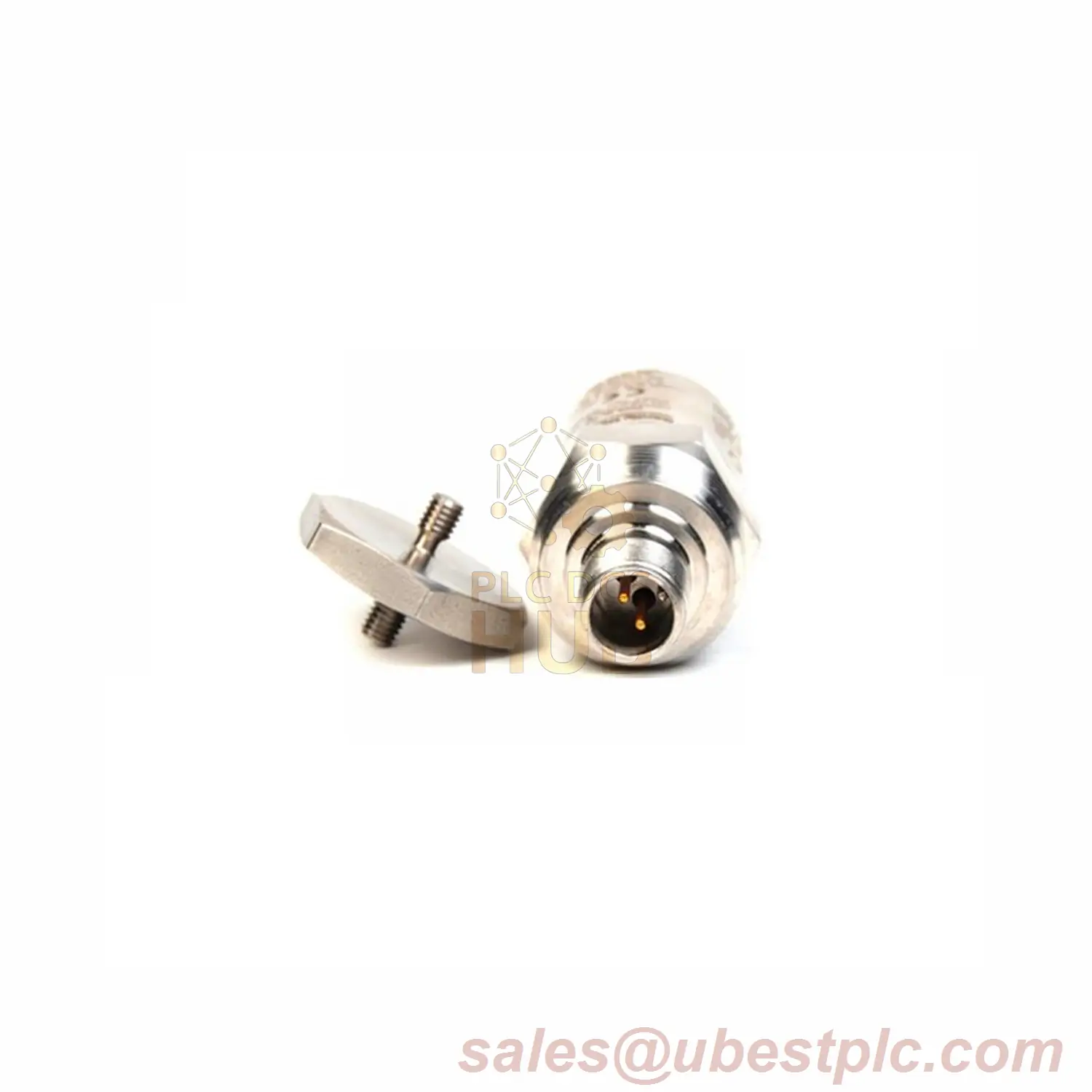

Bently Nevada 190501-09-00-CN Vibration Sensor
Industrial-Grade Precision for Global Compliance
▼ Model Decoding
| 190501 | Base vibration sensor |
| -09 | 3/8-24 to 1/4-NPT adapter |
| -00 | Military-grade connector |
| -CN | Local compliance certification |
▼ Core Performance for 190501-09-00-CN
- Temp Range: -40°F to +185°F
- Sensitivity: 3.94mV/mm/s (±5%)
- Frequency: 3Hz-1kHz (±3dB)
- Shock Survival: 5000g
▼ Industry Solutions
- Chemical Processing: Reactor agitation monitoring
- HVAC Systems: Fan motor vibration analysis
- Marine Propulsion: Shaft alignment verification
- Pharmaceutical: Centrifuge balancing
▼ Technical Edge
- ◍ 316L stainless construction
- ◍ 0.009 in/s detection threshold
- ◍ 1000ft cable capability (P/N 02173006)
- ◍ MIL-C-5015 secure interface
▼ Quick Setup Guide
- Apply 40±5 in-lb torque
- Connect via MIL-C-5015
- Verify polarity (Pin A+)
▼ Package & Support
- ✅ Sensor unit
- ✅ 12-month warranty
- ???? FedEx/DHL/UPS global delivery
▼ FAQ Spotlight
Q: Chemical resistance level?
A: 316L steel + PPS tip withstands most corrosives
Q: Minimum target size?
A: 8.9mm diameter (0.35″) required
Q: Pressure sealing?
A: Viton O-ring standard – custom tests available
