Description

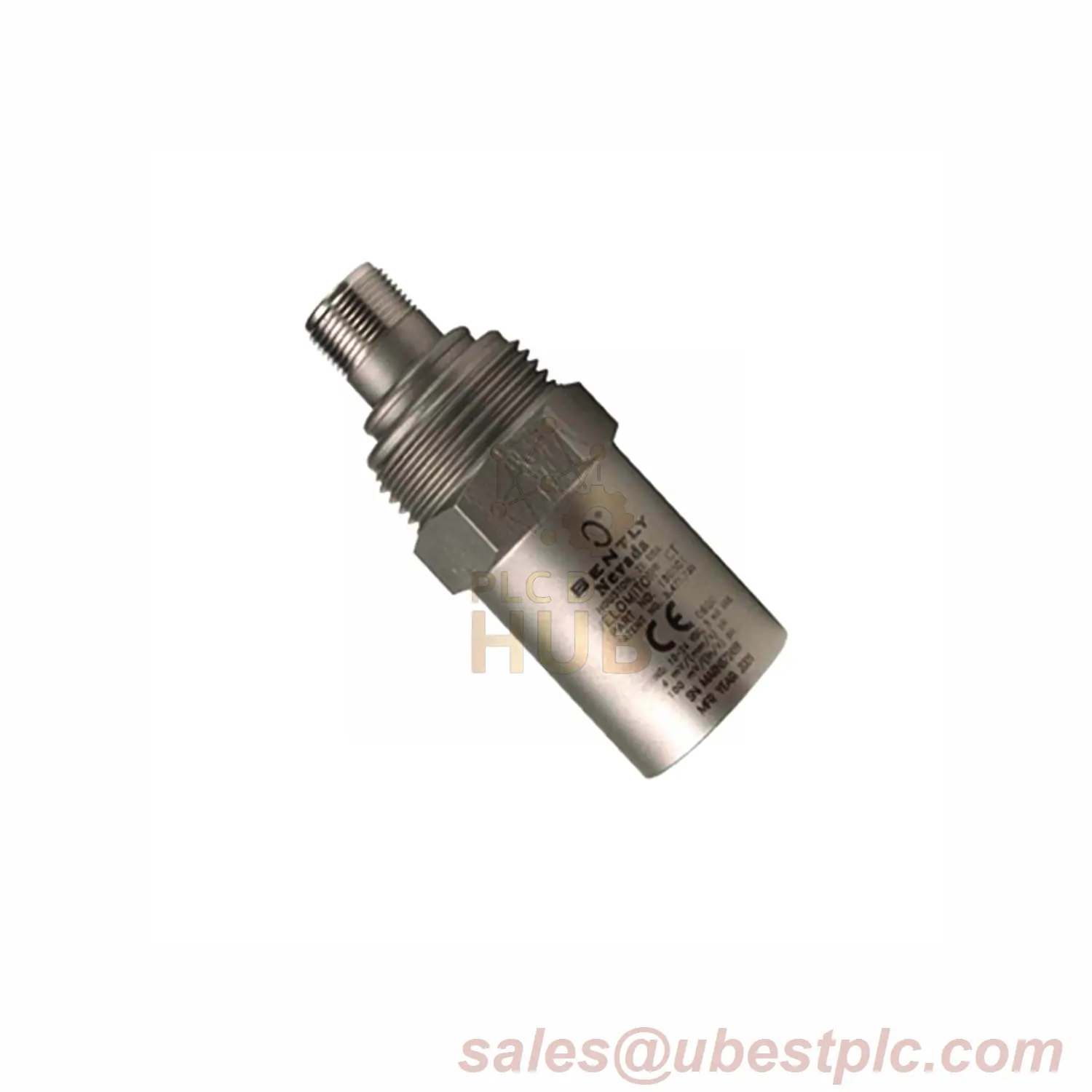

Bently Nevada 190501-11-00-00 Velocity Sensor
Industrial-grade vibration monitoring with extreme durability
Model Number Breakdown
- 190501 – Core transducer model
- -11 – 3/8-24 to 1/4-28 plate stud
- -00 – MIL-C-5015 connector
- -00 – No agency approvals needed
Key Technical Specs for 190501-11-00-00
- -40°F to +185°F operation
- 3.94mV/mm/s sensitivity (±5%)
- Detects 3Hz-1kHz vibrations
- 5000g shock resistance
- 316L stainless steel body
Industrial Applications
- Power Plants: Monitor turbine generators
- Water Treatment: Track pump vibrations in humid environments
- Steel Mills: Protect rolling mill equipment
Installation Guide
- Mounting torque: 40±5 in-lb
- Works in any orientation
- Max cable: 1000ft (02173006)
Package Includes
- Velocity transducer
- 12-month warranty
Global Shipping
FedEx | UPS | DHL
Tracking provided within 1 business day
FAQ
Q: Saltwater compatible?
A: Yes – 316L stainless resists corrosion
Q: Minimum vibration detection?
A: 0.229mm/s sensitivity
Q: Works in explosive areas?
A: Basic model lacks certifications – contact for hazardous area versions
