22B-B2P3N104 Allen Bradley Drive PowerFlex 40P

Description

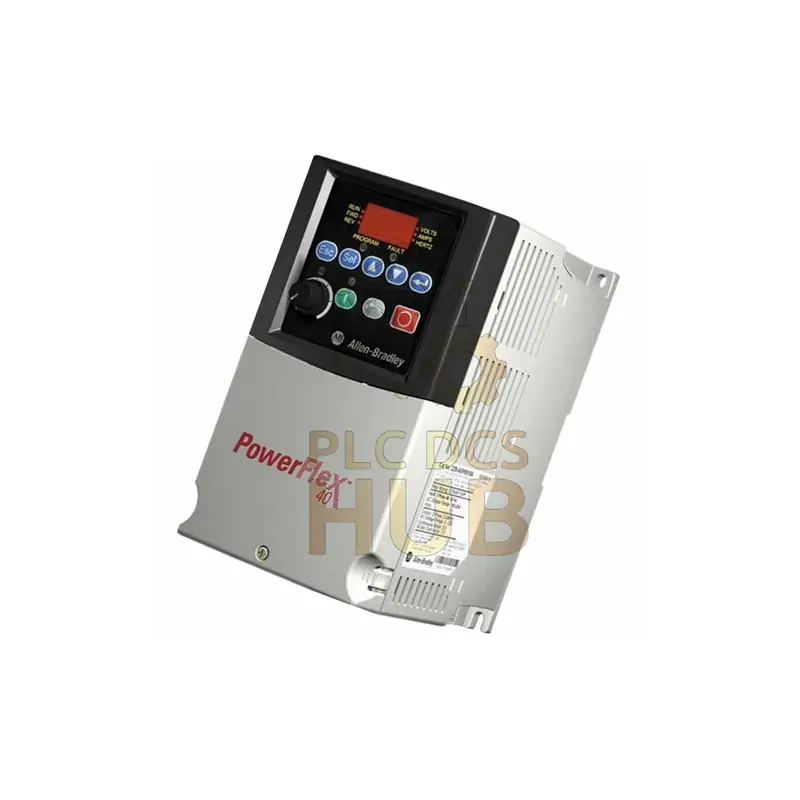

Allen-Bradley PowerFlex 40 Drive – 22B-B2P3N104

Precision motor control with the compact 22B-B2P3N104 VFD. Perfect for small 3-phase motors up to 1 HP (0.75 kW). Features sensorless vector control and easy panel mounting.

Why Choose This Drive?

• 1 HP (0.75 kW) power output
• 2.3A current rating
• Works with 200-240V AC, 3-phase
• RS-485 built-in communication
• Simple LCD keypad control
• Auto-tune for motor optimization

Technical Details

• Model: 22B-B2P3N104
• Input Voltage: 180-264V AC
• Output Frequency: 0-400 Hz
• Frame Size: C (Panel Mount)
• I/O: 3 digital inputs, 4 programmable outputs
• Analog Inputs: 2 (0-10V/4-20mA)
• Operating Temp: 32°F to 140°F (0°C to 60°C)
• Shock Resistance: 30g operating / 50g non-operating
• EMC Certified: EN 50081-2, EN 50082-2

Compatible Accessories

• Braking Resistor: AK-R2-030P1K2 (10Ω)
• Line Reactor: 1321-3R35-A (0.4mH)
• EMC Filters: 22-RF034-CS (S-Type), 22-RF034-CL (L-Type)

FAQ

• What’s the maximum cable length? Keep motor cables short to reduce interference.
• Can I use this with CompactLogix? Yes, fully compatible with Studio 5000.
• Does it support PID control? Yes, includes Process PID algorithm.
• What networks can it connect to? Optional cards for DeviceNet, ProfiBus, Ethernet/IP.
• Is a braking resistor included? No, must be purchased separately.

Warranty & Shipping

• 12-month warranty
• Fast worldwide shipping via FedEx, UPS, or DHL

Compare Similar Models

• 22B-D1P4F104 – 1.4A, with filter
• 22B-D6P0F104 – 6.0A, 240V
