22B-V2P3C104 Allen Bradley | Drive PowerFlex 40P

Description

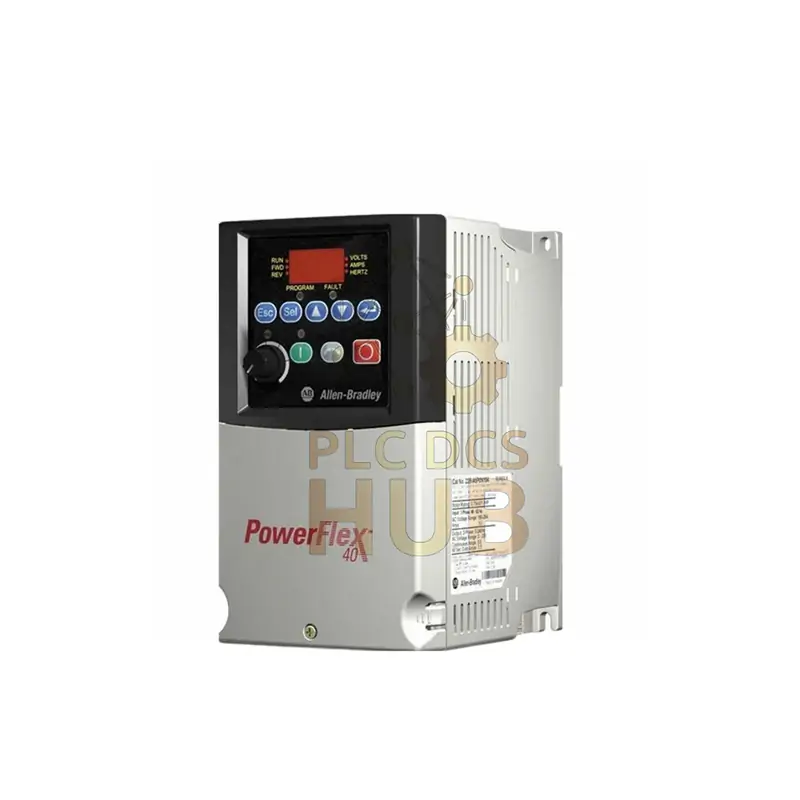

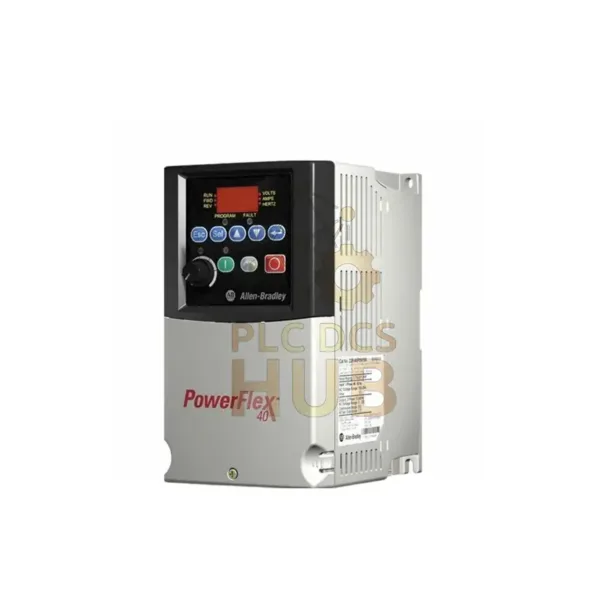

Allen-Bradley 22B-V2P3C104 PowerFlex 40 Drive

Compact & Powerful Motor Control

The 22B-V2P3C104 is a rugged AC drive perfect for small motors. With 0.5 HP power and IP66 protection, it works in tough conditions. Easy to install and use with simple keypad controls.

Key Benefits

• 120V AC 1-phase input power
• Controls motors up to 0.5 HP (0.4 kW)
• 2.3 Amp output current
• Super tough IP66/NEMA 4X enclosure
• Built-in RS-485 communication
• Compact Size B frame (270x165x198mm)

Complete Specifications

• Input Voltage: 100-120V AC
• Frequency: 50/60 Hz
• Output: 3-phase, 2.3A
• Weight: 5.3 kg (11.7 lbs)
• Operating Temp: 0°C to 40°C
• Storage Temp: -40°C to 85°C
• Protection: IP66/NEMA 4X

Our Promise

• 12-month product warranty
• Fast shipping with FedEx, UPS or DHL

Common Questions

• Q: Can this drive get wet?
  A: Yes! The IP66 rating means it’s protected against powerful water jets.
• Q: What’s the biggest motor it can run?
  A: It’s perfect for motors up to 0.5 HP (1/2 horsepower).
• Q: Does it work with 3-phase motors?
  A: Yes! It takes 1-phase power but controls 3-phase motors.
• Q: How do I program it?
  A: Use the simple keypad or connect via RS-485. Download full manual for details.
• Q: Is it good for dusty areas?
  A: Absolutely! The NEMA 4X rating means complete dust protection.

Need installation help? Our support team is ready to assist you!
