Description

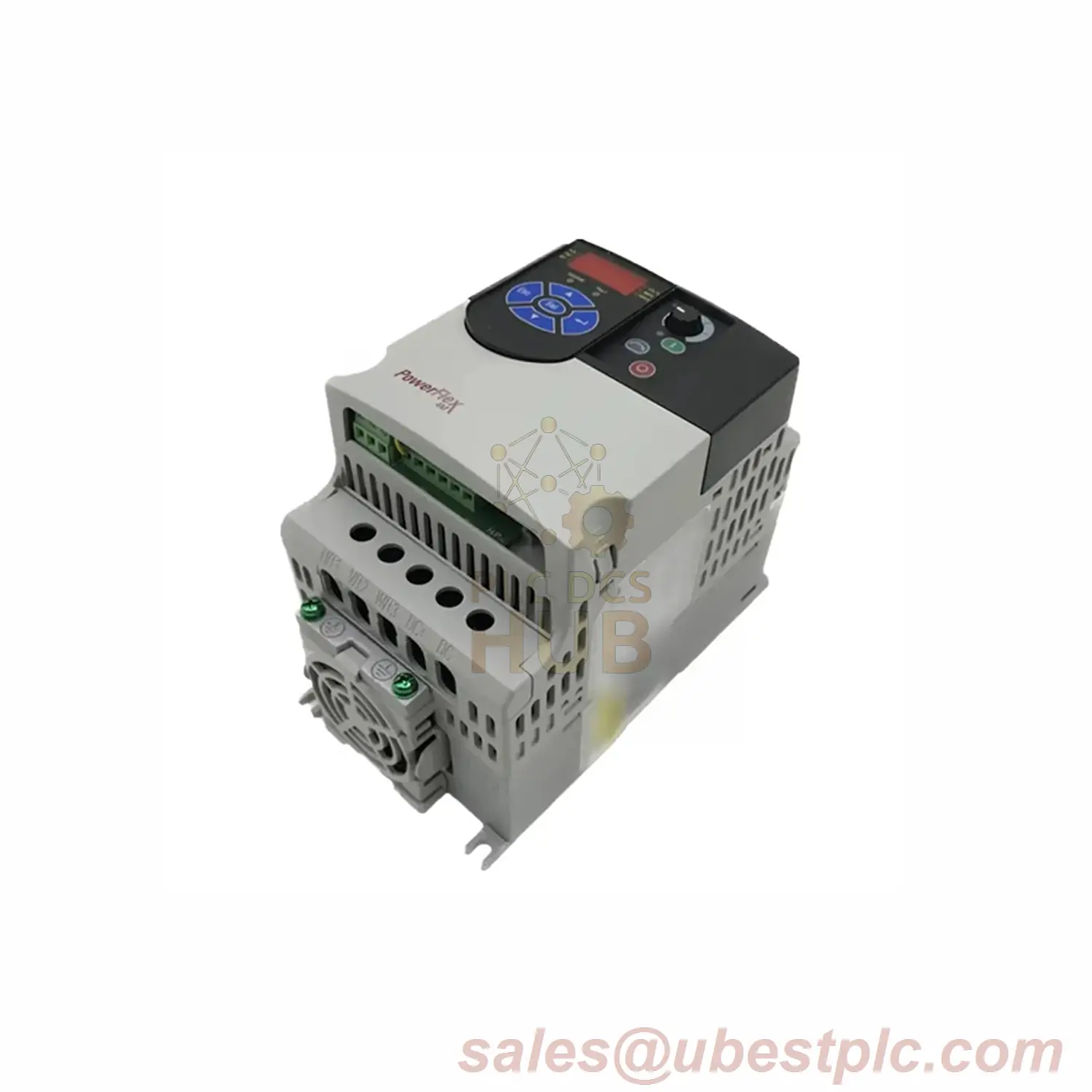

Allen-Bradley 22F-D024N114 PowerFlex 4M Drive – 15HP Industrial Powerhouse
Why Choose This Drive?
- ???? 15HP motor control – Handles heavy industrial loads
- ⚡ 480V AC power – Works with 3-phase systems
- ????️ Built-in EMC filter – Reduces electrical noise
- ???? RS-485 communication – Easy system integration
- ????️ Wide temp range – Works from -10°C to 40°C
Drive Specifications
| Model Number: | 22F-D024N114 |
| Power Rating: | 11kW (15HP) |
| Input Voltage: | 340-528V AC, 3-Phase |
| Output Current: | 24A |
| Frame Size: | C |
| Enclosure: | IP20 (Open) |
| Dimensions: | See manual |
| Weight: | Approx. 8.5kg |
Expert Answers
- What’s the maximum altitude for operation?
1000m without power reduction. - Can I use this in dusty environments?
No – keep in clean, dry locations. - Does it include dynamic braking?
Yes, with built-in IGBT brake. - How many digital inputs are programmable?
2 of the 5 inputs can be programmed. - What’s the vibration tolerance?
1g peak at 5-2000Hz frequency.
Order & Support
- ???? Fast shipping via FedEx, UPS or DHL
- ✅ 12-month warranty
- ???? Download full manual here
