Description
Description

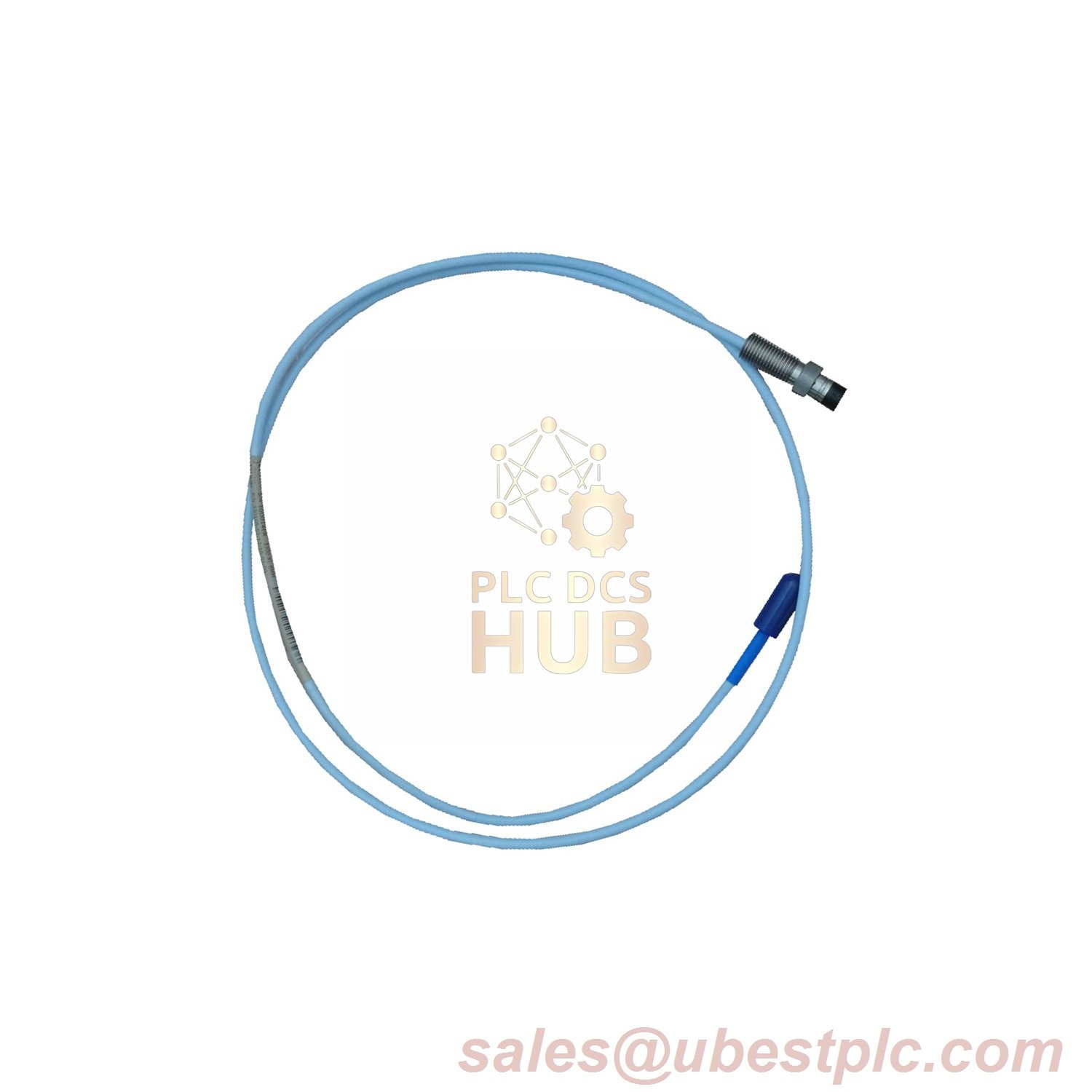

The Bently Nevada 330101-00-11-10-02-00 is a precision-engineered 8 mm proximity probe designed for vibration and position monitoring in compact industrial machinery. Featuring a 1.1-inch case length, 3/8-24 UNF thread, and Miniature ClickLoc connector, this probe integrates patented TipLoc and CableLoc technologies to deliver 330 N (75 lbf) pull strength and robust durability. Ideal for installations requiring minimal space without agency certifications (suffix -00), it ensures reliable performance in extreme temperatures and high-vibration environments.
Technical Data
| Parameter | Specification |
|---|---|
| Brand | Bently Nevada |
| Model | 330101-00-11-10-02-00 |
| Suffix Breakdown | -00 (0.0 in unthreaded),
-11 (1.1 in case), -10 (1.0 m cable), -02 (ClickLoc connector), -00 (no approvals) |
| Product Type | 3300 XL 8 mm Probe, 3/8-24 UNF thread, unarmored |
| Total Length | 1.0 meter (3.3 feet) |
| DC Resistance (RPROBE) | 7.59 ± 0.50 Ω at 1.0 m |
| Dielectric Strength | 2,500 V AC (1 minute, conductor to shield) |
| Frequency Response | 0–25 kHz (±1 dB linearity) |
| Cable Torsional Stability | ±2° twist per meter under load |
| Probe Tip Hardness | Shore D 80 (PPS material) |
| EMC Compliance | EN 55032 Class B (emissions) and EN 61000-6-2 (immunity) |
| Axial Vibration Resistance | 25 g peak (5 Hz–10 kHz) |
| Cable Flex Life | 30,000 cycles (dynamic bending at 10x diameter) |
Contact Support
For certification documents or custom configurations:
sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
