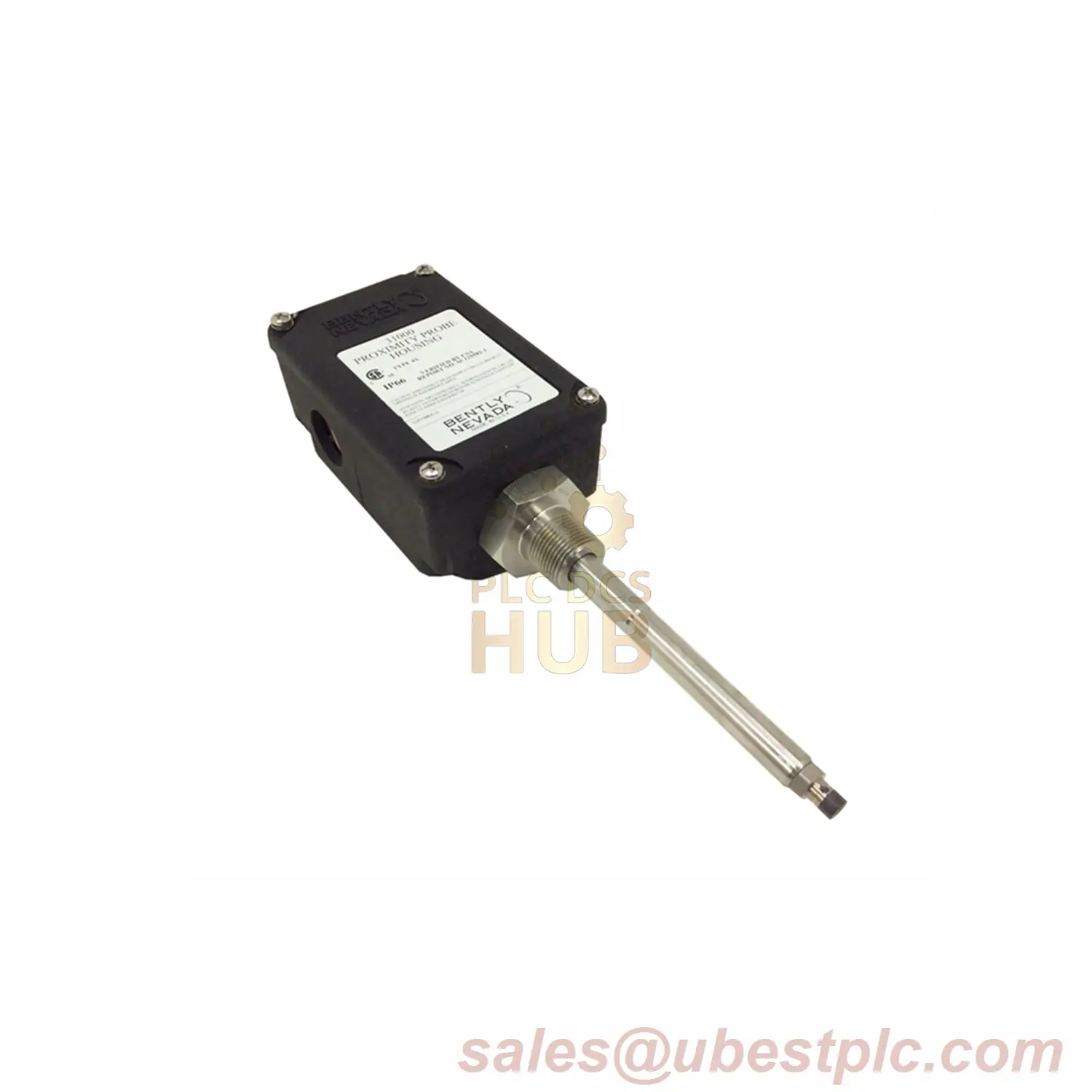

31000-16-10-15-041-03-02 Proximity Probe Housing Assemblies

Description

Bently Nevada 31000-16-10-15-041-03-02 Probe Housing: Versatile Hazardous Zone Guardian

Suffix Code Architecture

• Root Model
  • 31000 – Base Housing Platform
• Probe Configuration
  • 16 – 8mm XL Probe with Standard Termination
• Cable System
  • 10 – 1.0m Armored Cable Assembly
• Mechanical Interface
  • 15 – 1.5″ Standoff Adapter
  • 041 – 4.1″ Penetration Depth
• Connection Suite
  • 03 – Advanced Port Kit (3 NPT sizes + cable seals)
  • 02 – 3/4-14 NPT Mount Standard

Technical Fortifications for 31000-16-10-15-041-03-02

• Structural Integrity: 7J Impact Certified (-38°F to 239°F)
• Chemical Defense: PPS Composite Resists 10% H2SO4
• Electrical Safety: Conductive Housing (<5Ω Surface Resistance)
• Thermal Range: -60°F to +221°F Continuous Operation
• Sealing Force: 260 in-lb Torque Optimized

Certification Matrix

Installation Protocol

• Apply ESD-safe lubricant on threads
• Three-stage torque sequence: 20 → 25 → 29.4 N·m
• Verify ground path continuity (<2Ω)

Operational Toolkit

• 1x Probe Housing Assembly
• 3x Cable Gland Sizes (1/8″ to 3/8″)
• NPT Reducer Set (3/4″ to 1/2″)
• 12-Month Performance Warranty
• Global Logistics: DHL/UPS Priority

Technical Inquiry Solutions

Q: Hydrogen service compatibility?
A: Fully compliant with NACE MR0175 standards

Q: Maximum vessel wall thickness?
A: 4.1″ penetration suits 3.9″ walls with 0.2″ clearance

Q: Replacement seal kit availability?
A: BN-SEALKIT-8MM (includes Neoprene® & anti-extrusion rings)
