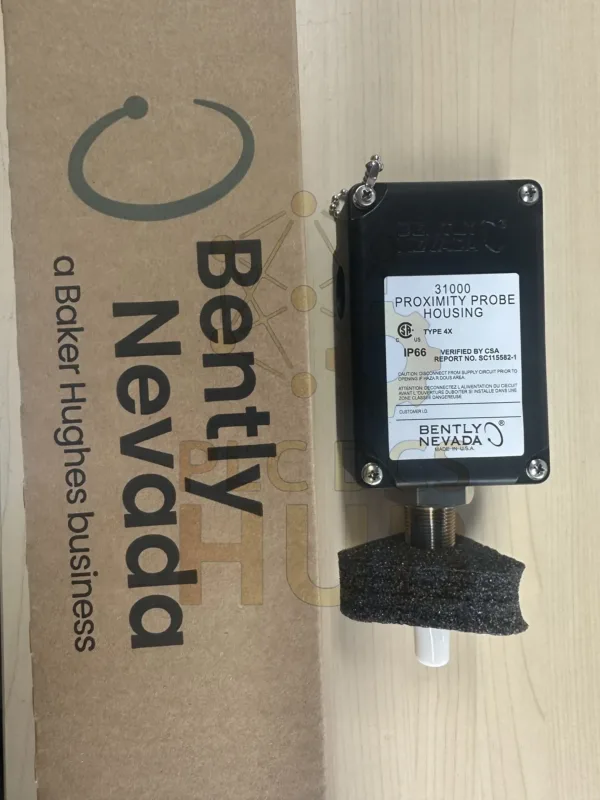

Bently Nevada 31000 Proximity Probe Housing – Rugged Enclosure for Hazardous Environments

Description

Designed for explosive or corrosive settings, the Bently Nevada 31000 Housing (P/N: 31000-28-05-00-028-01-02) safeguards 3300 XL 8mm probes with IP66/Type 4X ratings, conductive PPS housing, and stainless steel sleeves. Ideal for oil rigs, chemical plants, and mining operations requiring ATEX/IECEx compliance.

Technical Data

• Brand: Bently Nevada
• Model: 31000 Proximity Probe Housing
• Part Number Suffix:
  • -28: 3300 XL 8mm Probe (Multi-Approval)
  • -05: 0.5m Cable Length
  • -00: No Standoff Adapter
  • -028: 2.8in Probe Penetration
  • -01: 3/4-14 NPT Fitting + Two Plugs
  • -02: 3/4-14 NPT Mounting Thread
• Material: Conductive PPS, AISI 304/303 SST
• Impact Resistance: 7 Joules (CSA-certified)
• Temp Range: -51°C to +105°C

Real-World Applications

• Offshore Drilling Rigs: Resists saltwater corrosion and explosive atmospheres (ATEX Zone 1).
• Wastewater Treatment: Neoprene O-rings prevent chemical leakage in acidic environments.
• Mining Conveyors: Withstands 4J impacts at -39°C in arctic mines.

Installation Guidelines

• Tighten retaining nut to 29.4 N·m (260 in·lb) for optimal seal.
• Use grounding liner to comply with EN50014 electrostatic safety.
• Maximize cable life by avoiding bends near the 3/4-14 NPT fitting.

FAQ

• Q: Can this housing be used in Zone 0 areas?
  A: No – certified for Zone 1/2 (EN50014).
• Q: Is the O-ring chemical-resistant?
  A: Neoprene resists oils and mild acids – replace for strong solvents.
• Q: How to verify IP66 integrity after installation?
  A: Conduct water jet testing per IEC 60529 standards.
