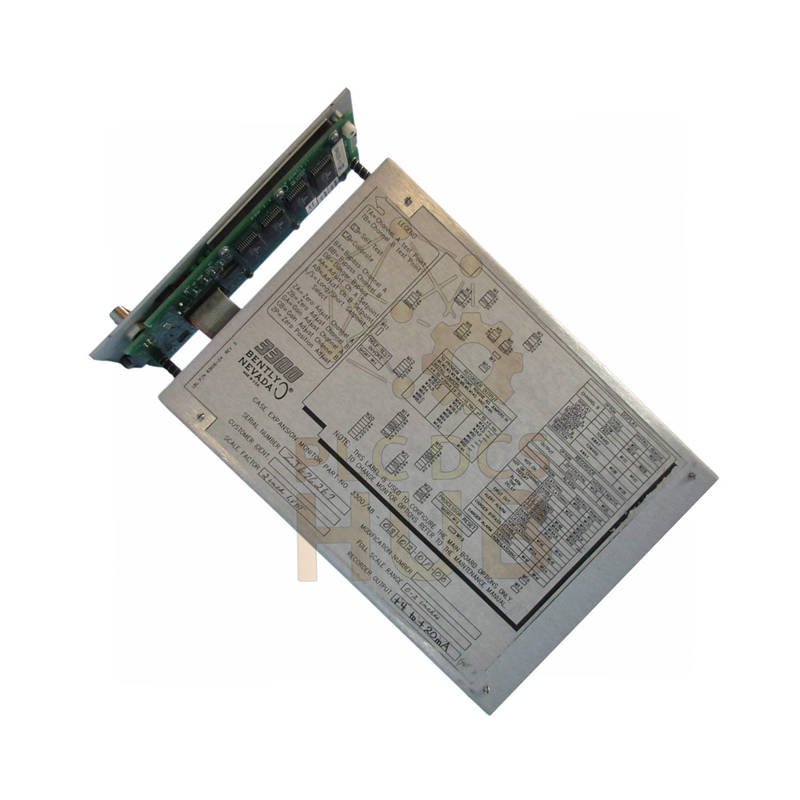

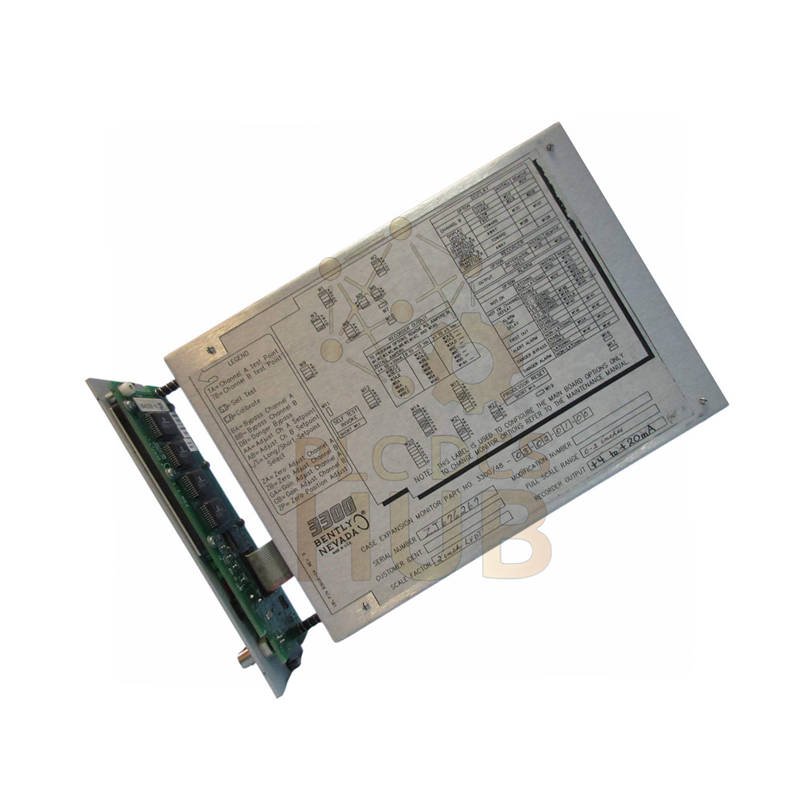

3300/48-01-01-00-00 Bently Nevada Case Expansion Monitor Module Industrial Protection

Description

Product Description

• Bently Nevada 3300/48-01-01-00-00 is a dedicated case expansion monitoring module.
• Designed for precise thermal growth detection in critical machinery.
• Supports dual independent measurement channels.
• Provides stable outputs for protection and control systems.
• Built for continuous industrial operation.

Technical Specifications

• Brand: Bently Nevada
• Model: 3300/48-01-01-00-00
• Series: 3300 Series
• Module Type: Case Expansion Monitor
• Measurement Range: 0 to 25 mm case expansion
• Input Channels: Two independent channels
• Signal Output: 4–20 mA analog output
• Frequency Response: Optimized for slow thermal movement
• Sensitivity: Matched to 3300 proximity probe systems
• Linearity: Stable across full measurement span
• Resolution: Detects small expansion changes
• Power Supply: 18–36 VDC
• Operating Temperature: -20°C to +65°C
• Environmental Tolerance: Suitable for industrial cabinets
• Noise Immunity: Designed for high EMI environments
• Dimensions: 2.0 × 13.0 × 8.0 inches
• Weight: 2 lbs 7 oz

Installation Guidelines

• Supports panel mounting or standard 3300 rack installation.
• Ensure correct grounding for stable signal performance.
• Use compatible probes for accurate measurements.
• Maintain airflow clearance during installation.

Commissioning and Maintenance

• Front-access design simplifies setup and adjustment.
• Clear indicators support fast commissioning.
• Requires minimal recalibration during service.
• Designed for long maintenance intervals.

Compatibility Information

• Fully compatible with Bently Nevada 3300 proximity probe systems.
• Integrates with PLC, DCS, and machinery protection systems.
• Ideal for upgrading legacy 3300 installations.

Certifications and Quality

• Manufactured to industrial monitoring standards.
• Designed for continuous-duty applications.
• Proven reliability in power and process industries.

Package Contents and Warranty

• One 3300/48 Case Expansion Monitor.
• Factory-tested and securely packed.
• 12-month warranty from shipment date.
• Worldwide shipping via FedEx, UPS, or DHL.

Typical Applications

• Steam turbine casing expansion monitoring.
• Gas turbine thermal growth supervision.
• Compressor case protection systems.
• Power generation asset monitoring.

Diagnostic Capabilities

• Early detection of abnormal thermal expansion.
• Supports predictive maintenance programs.
• Reduces risk of casing deformation.
• Improves machinery reliability.

FAQ

• What is the main function of this module?
• It measures casing expansion caused by temperature changes.
• Is it compatible with older 3300 racks?
• Yes. It supports standard 3300 system infrastructure.
• Can it operate continuously?
• Yes. It is designed for 24-hour industrial operation.
• How should probes be selected?
• Choose probes based on casing material and expansion range.
• What is a common installation mistake?
• Poor mounting stability can reduce measurement accuracy.

Selection Guidance

• Verify expected expansion range before ordering.
• Confirm available power supply voltage.
• Match probe type to machine structure.
• Consult specialists for turbine applications.
