Description
Product Overview

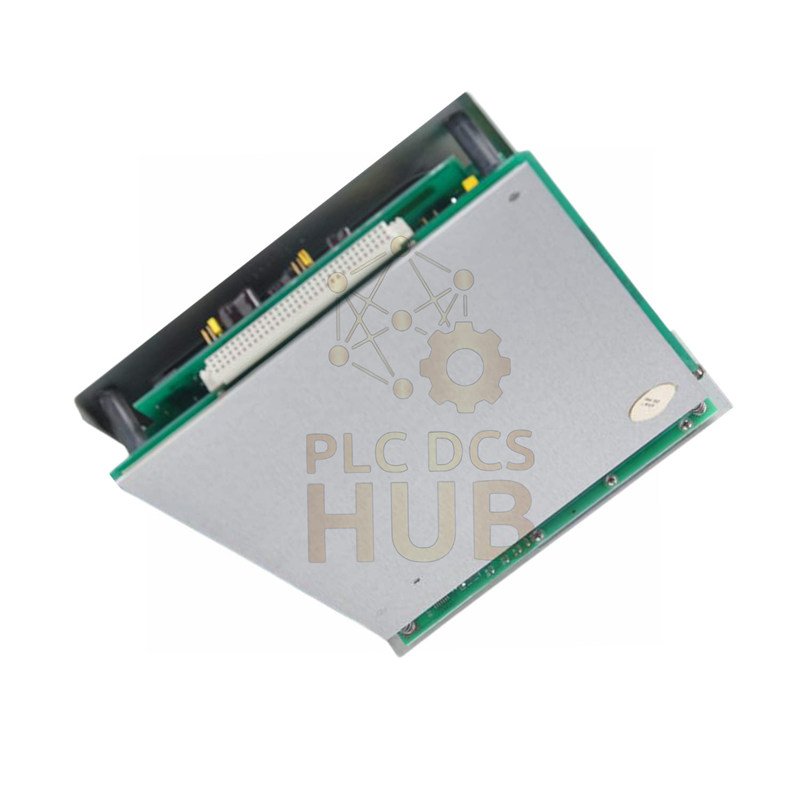

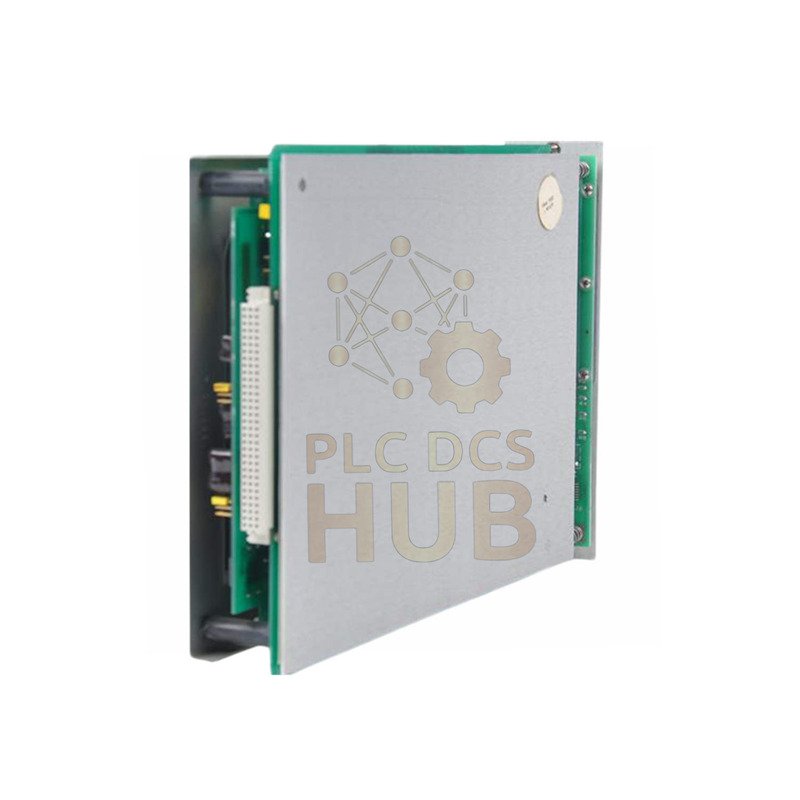

The Bently Nevada 3300/55-04-01-08-08-00-00-00-00 is a dual-channel vibration monitor. It protects machines by measuring velocity. This device is reliable for industrial use. It helps prevent unexpected downtime.
Key Features
- Dual Inputs: Connects to two velocity sensors.
- Configurable Sensitivity: 100, 145, or 500 mV/in/s.
- Wide Frequency Range: From 3 Hz to 10,000 Hz.
- High Accuracy: Typical ±0.33% of full scale.
- Low Power Use: Only 1.5 Watts.
- Rugged Design: Built for plant environments.
Technical Specifications
- Brand: Bently Nevada
- Model: 3300/55-04-01-08-08-00-00-00-00
- Measurement: Vibration velocity.
- Frequency Response: 3 – 10,000 Hz.
- Sensitivity: Jumper-selectable (3 options).
- Linearity: Excellent, ±1% max error.
- Operating Temperature: Specified at +25°C.
- Outputs: 4-20 mA and voltage.
- Weight: 1 kg (2.2 lbs).
What’s in the Box
- One Monitor Unit.
- Mounting Hardware.
- Documentation.
- 12-Month Warranty.
Shipping & Support
We ship globally via FedEx, UPS, and DHL. Contact our experts for help choosing the right model.
FAQ
What sensors are compatible?
Bently Nevada Velomitor and 2-wire Seismoprobe sensors.
Can it output displacement?
No, it measures velocity only.
How is sensitivity set?
Use the internal jumper blocks.
What’s a common installation tip?
Always verify power wiring before connecting sensors.
