3300 NSv Proximity Probe Bently Nevada 330908-00-19-10-02-05 3/8-24

Description

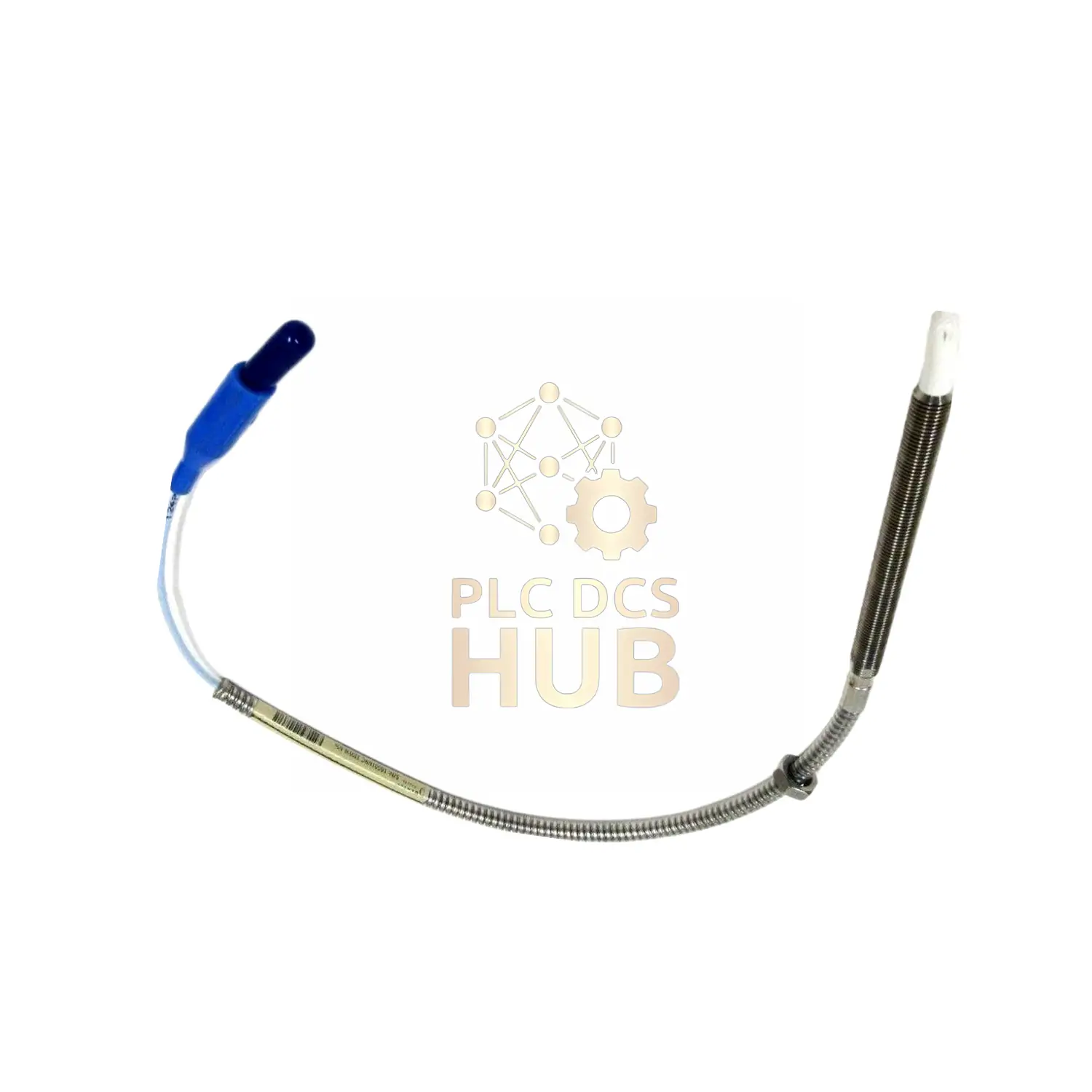

Product Overview

This Bently Nevada 330908-00-19-10-02-05 is a precision 3300 NSv Proximity Probes designed for reliable machinery protection. It converts mechanical motion into a high-frequency signal for vibration and position monitoring. Made in U.S.A., this sensor delivers accurate data for critical rotating equipment. The NSv series offers improved chemical resistance for process compressor applications.

Technical Specifications

• Brand & Model: Bently Nevada 330908-00-19-10-02-05
  • Product Series: 3300 NSv Proximity Probes
  • Thread Type: 3/8-24 UNF
  • Armor: Without armor
  • Cable Type: Standard cable
  • Condition: New & Original in Factory Packing
• Measurement Range: Linear range of 1.5 mm (60 mils)
  • Start Point: 0.25 mm from target
  • End Point: 1.75 mm from target
  • Voltage Output: –1 to –13 Vdc
• Sensitivity (ISF): 7.87 V/mm (200 mV/mil)
  • Accuracy: +12.5%/-20% interchangeability error
  • Measurement Increments: 0.25 mm (10 mils)
• Frequency Response: 0 to 10 kHz
  • Rolloff: +0, -3 dB typical
  • Field Wiring: Up to 305 meters (1000 feet)
• Linearity (DSL): Less than ±0.06 mm (±2.3 mils)
  • Over Range: Full 1.5 mm linear range
• DC Resistance: 4.2 ± 0.5 Ω
  • Probe Length: 1.0 m system
• Extension Cable: Compatible with previous 3300 RAM
  • Center Conductor: 0.220 Ω/m
  • Shield: 0.066 Ω/m
  • Capacitance: 69.9 pF/m typical
• Connector Type: Miniature coaxial ClickLoc
  • Cable: Standard design
  • Connection: Quick and secure
• Probe Tip Material: Polyphenylene sulfide (PPS)
  • Chemical Resistance: Superior to 3300 RAM series
• Case Material: AISI 304 stainless steel
  • Cable Specs: 75 Ω coaxial, FEP insulated

Installation Guidelines

• Recommended Gap: Set to 1.0 mm (40 mils)
  • Voltage: Approximately -9 Vdc
• Length Options: 330908-00-19-10-02-05
  • Unthreaded: 00 = 0 in
  • Case Length: 19 = 1.9 in
  • Total Length: 10 = 1.0 meter (39 in)
  • Connector: 02 = Mini ClickLoc, standard cable
  • Approvals: 05 = Multiple Approvals
• Thread Engagement: Maximum 0.563 in
  • Thread Type: 3/8-24 UNF
• Field Wiring: 3-conductor shielded triad
  • Wire Size: 0.2 to 1.5 mm² (16-24 AWG)
  • With Ferrules: 0.25 to 0.75 mm² (18-23 AWG)
  • Max Length: 305 meters to monitor
• Target Size: Minimum 8.9 mm diameter
  • Recommended: 13 mm diameter for best results
  • Small Shafts: Scale factor may change below 13 mm

Torque Specifications

• Probe Case Torque: 3/8-24 thread
  • Maximum Rated: 22.6 N•m (200 in•lb)
  • Recommended: 7.5 N•m (66 in•lb)
• Connector-to-Connector Torque:
  • Maximum Rated: 33.9 N•m (300 in•lb)
  • Recommended: 11.3 N•m (100 in•lb)
• Probe Tip Torque: Finger tight
  • Maximum: 0.56 N•m (5 in•lb)
• Minimum Bend Radius: 25.4 mm (1.0 in)
  • With or without armor: Same specification

Maintenance & Durability Features

• ClickLoc Connector: Miniature coaxial design
  • Benefit: Fast, secure field connections
• Standard Cable: Reliable for most applications
  • Use: General purpose monitoring
• Chemical Resistance: Superior to 3300 RAM
  • Benefit: Works in process compressor applications
• Side-View Characteristics: Better than 190 probe
  • Benefit: Easier gapping at same distance
• Pressure Seal: Viton O-ring design
  • Differential Pressure: Seals between tip and case
  • Testing: Custom pressure testing available

Compatibility Information

• System Compatibility: Works with NSv Proximity Probes systems
  • Sensor: 3300 XL NSv Proximitor Sensors
• Interchangeability: Compatible with 3300 RAM probes
  • Mechanical: Same mounting dimensions
  • Electrical: Same performance characteristics
• Extension Cable: Works with previous 3300 RAM cables
  • Capacitance: 69.9 pF/m typical
• Wiring Distance: Supports up to 305 meters
  • Between: Sensor and monitor

Certifications & Safety

• Agency Approvals: 05 = Multiple Approvals
  • CSA: Canadian Standards Association
  • ATEX: European explosive atmospheres
  • IECEx: International explosive atmospheres
• Hazardous Areas: Multiple safety ratings
  • ia Rating: Class I, Zone 0 AEx/Ex ia IIC
  • nA, ec Rating: Class I, Zone 2 AEx/Ex nA
  • Groups: A, B, C, D, E, F, G
  • Divisions: Class 1, Division 2
• Temperature Class (Ga/Gc): T1 to T5 ratings
  • T1: -55°C to +232°C ambient
  • T2: -55°C to +177°C ambient
  • T3: -55°C to +120°C ambient
  • T4: -55°C to +80°C ambient
  • T5: -55°C to +40°C ambient
• Temperature Class (Dc): Surface temperature ratings
  • T280°C: -55°C to +232°C ambient
  • T225°C: -55°C to +177°C ambient
  • T170°C: -55°C to +120°C ambient
  • T130°C: -55°C to +80°C ambient
  • T105°C: -55°C to +100°C ambient
  • T90°C: -55°C to +40°C ambient

Environmental Resistance

• Temperature Range: Probe operates -52°C to +177°C
  • Storage: Same as operating range
  • Warning: Avoid below -34°C for pressure seal
• Chemical Resistance: Superior to previous models
  • Benefit: Suitable for process compressors
• Pressure Seal: Viton O-ring design
  • Differential: Seals between tip and case

Package List & Warranty

• Package Includes: 1x Bently Nevada 3300 NSv Proximity Probes
  • Configuration: Without armor, 3/8-24 UNF thread
  • Length: 1.0 meter with 1.9 in case
  • Connector: Miniature coaxial ClickLoc
  • Cable: Standard type
  • Packing: New & Original Factory Packing
• Warranty: 12-month factory warranty
  • Protects: Against manufacturing defects
• Shipping: Fast worldwide delivery
  • Couriers: FedEx, UPS, DHL

Applications & Diagnostics

• Radial Vibration: Monitors shaft vibration
  • Equipment: Turbines, compressors, pumps
• Process Compressors: Chemical resistance advantage
  • Benefit: Withstands harsh process environments
• Position Measurement: Measures thrust position
  • Also: Casing expansion monitoring
• Eccentricity: Detects shaft bow at low speed
  • Benefit: Identifies runout issues early
• Diagnostics: Provides DC gap voltage
  • Also: AC dynamic signals for fault analysis

Frequently Asked Questions (FAQ)

• What makes the NSv series different from 3300 RAM probes?The NSv offers increased chemical resistance for process compressor applications. It also has superior side-view characteristics for easier gapping. It is fully interchangeable with 3300 RAM probes.
• What is the correct torque for installation?Use 7.5 N•m (66 in•lb) for probe case installation. For connector-to-connector, use 11.3 N•m (100 in•lb). The probe tip only needs finger tight at maximum 0.56 N•m.
• How does the 12-month factory warranty work?We provide 12-month warranty against manufacturing defects. If issues occur, contact us for replacement. We arrange return shipping via FedEx, UPS, or DHL with tracking.
• What target size do I need for accurate measurements?Minimum target size is 8.9 mm diameter. We recommend 13 mm diameter for best results. For shafts smaller than 13 mm, scale factor may change. Reduce gap to minimize this effect.
• Can I use this probe with my existing 3300 RAM extension cables?Yes, the NSv is mechanically and electrically compatible with 3300 RAM extension cables. They are fully interchangeable. Use same wiring and installation practices.

Selection Guide

• For Process Compressors: 330908-00-19-10-02-05
  • Best For: Chemical resistance needed
  • Series: 3300 NSv Proximity Probes
  • Length: 1.0 meter standard
  • Thread: 3/8-24 UNF
• For RAM Replacement: Direct interchange
  • Benefit: No system changes needed
• For Hazardous Areas: Multiple approvals included
  • Certifications: CSA, ATEX, IECEx
• For Small Shafts: Adjust gap as needed
  • Tip: Reduce gap to maintain scale factor
• Shipping Choice: FedEx, UPS, or DHL
  • Delivery: Fast worldwide tracking included
