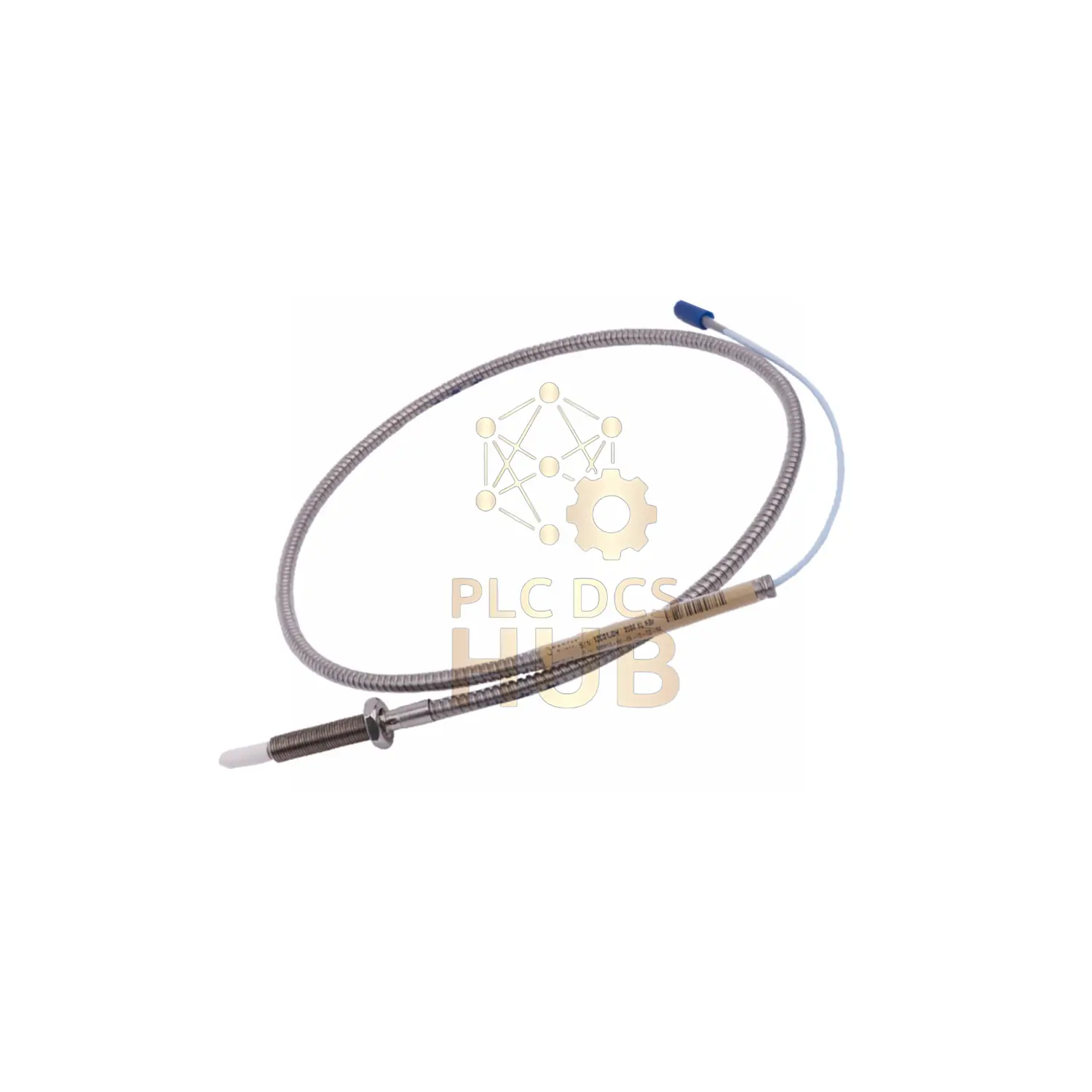

This Bently Nevada 330904-00-14-05-02-00 is a rugged 3300 NSv Proximity Probes designed for reliable machinery protection. It converts mechanical motion into a high-frequency signal for vibration and position monitoring. Made in U.S.A., this sensor delivers accurate data for critical rotating equipment. The M8x1 thread with stainless steel armor provides enhanced durability in harsh environments. The 0.5 meter compact length offers flexibility for tight installations.
Technical Specifications
- Brand & Model: Bently Nevada 330904-00-14-05-02-00
- Product Series: 3300 NSv Proximity Probes
- Thread Type: M8 x 1 metric
- Armor: With stainless steel armor
- Cable Type: Standard cable
- Condition: New & Original in Factory Packing
- Measurement Range: Linear range of 1.5 mm (60 mils)
- Start Point: 0.25 mm from target
- End Point: 1.75 mm from target
- Voltage Output: –1 to –13 Vdc
- Sensitivity (ISF): 7.87 V/mm (200 mV/mil)
- Accuracy: +12.5%/-20% interchangeability error
- Measurement Increments: 0.25 mm (10 mils)
- Frequency Response: 0 to 10 kHz
- Rolloff: +0, -3 dB typical
- Field Wiring: Up to 305 meters (1000 feet)
- Linearity (DSL): Less than ±0.06 mm (±2.3 mils)
- Over Range: Full 1.5 mm linear range
- DC Resistance: 4.0 ± 0.5 Ω
- Probe Length: 0.5 m system
- Extension Cable: Compatible with previous 3300 RAM
- Center Conductor: 0.220 Ω/m
- Shield: 0.066 Ω/m
- Capacitance: 69.9 pF/m typical
- Connector Type: Miniature coaxial ClickLoc
- Cable: Standard design
- Connection: Quick and secure
- Probe Tip Material: Polyphenylene sulfide (PPS)
- Chemical Resistance: Superior to 3300 RAM series
- Case Material: AISI 304 stainless steel with armor
- Cable Specs: 75 Ω coaxial, FEP insulated
Installation Guidelines
- Recommended Gap: Set to 1.0 mm (40 mils)
- Voltage: Approximately -9 Vdc
- Length Options: 330904-00-14-05-02-00
- Unthreaded: 00 = 0 mm
- Case Length: 14 = 140 mm
- Total Length: 05 = 0.5 meter (20 in)
- Connector: 02 = Mini ClickLoc, standard cable
- Approvals: 00 = Not required
- Thread Engagement: Maximum 12 mm
- Thread Type: M8 x 1 metric
- Field Wiring: 3-conductor shielded triad
- Wire Size: 0.2 to 1.5 mm² (16-24 AWG)
- With Ferrules: 0.25 to 0.75 mm² (18-23 AWG)
- Max Length: 305 meters to monitor
- Target Size: Minimum 8.9 mm diameter
- Recommended: 13 mm diameter for best results
- Small Shafts: Scale factor may change below 13 mm
Torque Specifications
- Probe Case Torque: M8x1 thread with armor
- Maximum Rated: 7.3 N•m (65 in•lb)
- Recommended: 5.1 N•m (45 in•lb)
- Probe Tip Torque: Finger tight
- Maximum: 0.56 N•m (5 in•lb)
- Minimum Bend Radius: 25.4 mm (1.0 in)
- With armor: Same specification
Maintenance & Durability Features
- Stainless Steel Armor: Added protection
- Benefit: Withstands harsh mechanical abuse
- ClickLoc Connector: Miniature coaxial design
- Benefit: Fast, secure field connections
- Standard Cable: Reliable for most applications
- Use: General purpose monitoring
- Chemical Resistance: Superior to 3300 RAM
- Benefit: Works in process compressor applications
- Side-View Characteristics: Better than 190 probe
- Benefit: Easier gapping at same distance
- Pressure Seal: Viton O-ring design
- Differential Pressure: Seals between tip and case
Compatibility Information
- System Compatibility: Works with NSv Proximity Probes systems
- Sensor: 3300 XL NSv Proximitor Sensors
- Interchangeability: Compatible with 3300 RAM probes
- Mechanical: Same mounting dimensions
- Electrical: Same performance characteristics
- Extension Cable: Works with previous 3300 RAM cables
- Capacitance: 69.9 pF/m typical
- Wiring Distance: Supports up to 305 meters
- Between: Sensor and monitor
Certifications & Safety
- Agency Approvals: 00 = Not required
- Note: For non-hazardous area use
- Temperature Class (Ga/Gc): T1 to T5 ratings
- T1: -55°C to +232°C ambient
- T2: -55°C to +177°C ambient
- T3: -55°C to +120°C ambient
- T4: -55°C to +80°C ambient
- T5: -55°C to +40°C ambient
- Temperature Class (Dc): Surface temperature ratings
- T280°C: -55°C to +232°C ambient
- T225°C: -55°C to +177°C ambient
- T170°C: -55°C to +120°C ambient
- T130°C: -55°C to +80°C ambient
- T105°C: -55°C to +100°C ambient
- T90°C: -55°C to +40°C ambient
Environmental Resistance
- Temperature Range: Probe operates -52°C to +177°C
- Storage: Same as operating range
- Warning: Avoid below -34°C for pressure seal
- Chemical Resistance: Superior to previous models
- Benefit: Suitable for process compressors
- Armor Protection: Stainless steel armor included
- Benefit: Extra mechanical durability
- Pressure Seal: Viton O-ring design
- Differential: Seals between tip and case
Package List & Warranty
- Package Includes: 1x Bently Nevada 3300 NSv Proximity Probes
- Configuration: With stainless steel armor, M8x1 thread
- Length: 0.5 meter with 140 mm case
- Connector: Miniature coaxial ClickLoc
- Cable: Standard type
- Packing: New & Original Factory Packing
- Warranty: 12-month factory warranty
- Protects: Against manufacturing defects
- Shipping: Fast worldwide delivery
- Couriers: FedEx, UPS, DHL
Applications & Diagnostics
- Radial Vibration: Monitors shaft vibration
- Equipment: Turbines, compressors, pumps
- Process Compressors: Chemical resistance advantage
- Benefit: Withstands harsh process environments
- Position Measurement: Measures thrust position
- Also: Casing expansion monitoring
- Eccentricity: Detects shaft bow at low speed
- Benefit: Identifies runout issues early
- Tight Spaces: 0.5 meter length ideal
- Benefit: Fits where longer probes cannot
- Diagnostics: Provides DC gap voltage
- Also: AC dynamic signals for fault analysis
Frequently Asked Questions (FAQ)
- What does the stainless steel armor do for this probe?The armor provides extra mechanical protection for the cable. It prevents damage in rough industrial environments. This model is ideal for installations where cable abrasion is a concern.
- Why does this probe have 00 agency approval option?The 00 option means no hazardous area certifications are included. This probe is for non-hazardous locations only. Choose 05 option if you need CSA, ATEX, or IECEx approvals.
- What is the advantage of the 0.5 meter length?The 0.5 meter compact length fits tight spaces and short distances. It reduces excess cable and simplifies mounting. Use with extension cables for longer runs as needed.
- How does the 12-month warranty work with shipping?We cover manufacturing defects for 12 months. Contact us for replacement if issues arise. We arrange return shipping via FedEx, UPS, or DHL with full tracking.
- Can I use this M8x1 probe with existing 3300 RAM systems?Yes, the NSv is fully interchangeable with 3300 RAM probes. It has the same mechanical and electrical specs. The M8x1 metric thread fits metric mounting holes.
Selection Guide
- For Harsh Environments: 330904-00-14-05-02-00
- Best For: Applications needing cable armor
- Series: 3300 NSv Proximity Probes
- Length: 0.5 meter compact
- Thread: M8x1 metric with armor
- For Process Compressors: Chemical resistant design
- Benefit: Withstands aggressive chemicals
- For RAM Replacement: Direct interchange
- Benefit: No system changes needed
- For Non-Hazardous Areas: No certifications needed
- Cost: Lower cost without approvals
- For Tight Spaces: 0.5 meter compact length
- Benefit: Fits confined installations
- Shipping Choice: FedEx, UPS, or DHL
- Delivery: Fast worldwide tracking included
