Bently Nevada 3300 XL 11 mm Proximity Probe 330701‑00‑40‑10‑02‑05 1m ClickLoc

Description

Product Brief

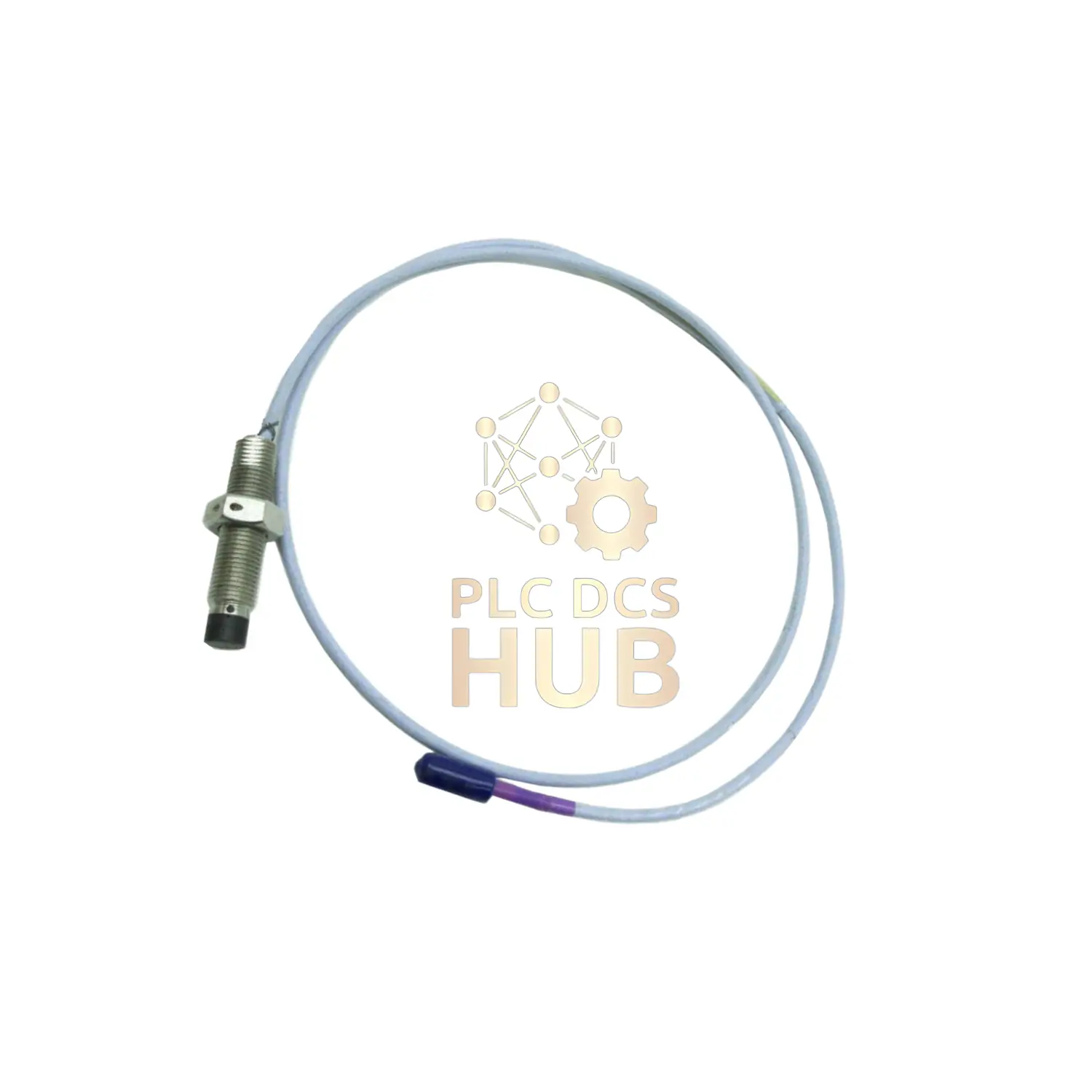

The 3300 XL 11 mm Proximity Probes are precision sensors from Bently Nevada. Designed for harsh industrial environments, they deliver reliable vibration and position monitoring. This model 330701-00-40-10-02-05 features a 1/2-20 UNF thread, PPS tip, and 1 meter FEP cable with ClickLoc connector. It withstands extreme temperatures and pressure differentials.

• Brand: Bently Nevada
• Model: 330701-00-40-10-02-05
• Type: 3300 XL 11 mm Proximity Probes
• Made in: U.S.A.
• Weight: 0.17 kg (shipping)

Technical Specifications

• Model breakdown: 330701-00-40-10-02-05
  • 330701 – 3300 XL 11 mm probe, 1/2-20 UNF thread, no armor
  • 00 – Unthreaded length: 0.0 inches
  • 40 – Overall case length: 4.0 inches
  • 10 – Total length: 1.0 meter (3.3 feet)
  • 02 – Miniature coaxial ClickLoc connector, standard cable
  • 05 – Multiple agency approvals
• Electrical characteristics
  • DC resistance (RPROBE): 5.9 Ω ±0.5 (1 m length)
  • Cable: 75 Ω triaxial, FEP insulated
  • Frequency response: Integrated with 3300 XL system
  • Sensitivity: Optimized for 11 mm proximity sensing
• Environmental ratings
  • Temperature range: -51°C to +177°C (-60°F to +351°F)
  • Pressure seal: Viton O-ring, differential pressure design
  • Note: Below -34°C may affect pressure seal life
• Mechanical properties
  • Case material: AISI 304 stainless steel
  • Tip material: Polyphenylene sulfide (PPS)
  • Thread: 1/2-20 UNF (max engagement 0.750 in / 19 mm)
  • Min bend radius: 25.4 mm (1.0 in)
• Torque specifications
  • Probe case (recommended): 15.2 N•m (133 in•lb)
  • Probe case (maximum): 45.2 N•m (400 in•lb)
  • Connector (max): 0.565 N•m (5 in•lb), finger tight recommended
• Temperature classifications (Multiple Approvals)
  • For EPL Ga and Gc: T1 to T5, -55°C to +232°C
  • For EPL Dc: T90°C to T280°C, -55°C to +232°C

Installation Guide

• Mounting requirements
  • Use 1/2-20 UNF threaded hole
  • Do not exceed 0.750 in (19 mm) thread engagement
  • Apply recommended torque: 15.2 N•m
  • Maintain minimum bend radius: 25.4 mm
• Connector installation
  • ClickLoc connector: Finger tight only
  • Maximum torque: 0.565 N•m (5 in•lb)
  • Avoid over-tightening to prevent damage
• Cable routing
  • 75 Ω triaxial FEP cable – maintain gentle bends
  • Protect from sharp edges and excessive heat

Maintenance & Compatibility

• Maintenance便利性
  • ClickLoc connector enables quick disconnect
  • No special tools required for connector
  • Stainless steel case resists corrosion
• System compatibility
  • Direct fit for Bently Nevada 3300 XL monitoring systems
  • Compatible with standard 75 Ω triaxial inputs
  • Multiple approvals (05) for global use

Certification & Approvals

• Agency approvals: Option 05 – Multiple Approvals
• Temperature class: T1 to T5 (EPL Ga/Gc) and T90-T280 (EPL Dc)
• Compliance: Meets industrial automation standards

Package & Warranty

• Package includes: 1 x Bently Nevada 330701 probe with integrated cable and ClickLoc connector
• Warranty: 12 months from date of shipment
• Shipping methods: FedEx, UPS, DHL – fast global delivery

Typical Applications

• Steam and gas turbines
• Centrifugal and screw compressors
• Pumps and electric motors
• Hydroelectric generators
• Gearboxes and fans

Diagnostic Capabilities

• Detect shaft vibration and position
• Monitor bearing wear and clearance
• Identify misalignment and unbalance
• Early warning of machine instability

Frequently Asked Questions

• What is the difference between options 00, 40, 10, 02, and 05?Each suffix defines a specific feature: 00 = unthreaded length, 40 = case length, 10 = total length, 02 = connector type, 05 = approvals. See model breakdown above.
• Can I use this probe in high-pressure applications?Yes – it seals differential pressure with a Viton O-ring. For certified pressure testing, contact our custom design team.
• What happens if I exceed the recommended torque?Over-torquing may damage threads or internal components. Always follow specifications: 15.2 N•m recommended, max 45.2 N•m.
• Is the cable field-replaceable?No – the cable is integral to the probe. Choose correct length at time of order: 1, 5, or 9 meters.
• 选购指导: Which option should I choose for hazardous areas?Select option 05 (Multiple Approvals) for hazardous locations with temperature classifications T1-T5.
• Does this work with third-party monitors?Designed for Bently Nevada 3300 XL systems. For other systems, verify 75 Ω triaxial compatibility.
• What is the minimum temperature for reliable pressure seal?Below -34°C (-30°F) may accelerate seal aging. Consider application-specific testing for extreme cold.
