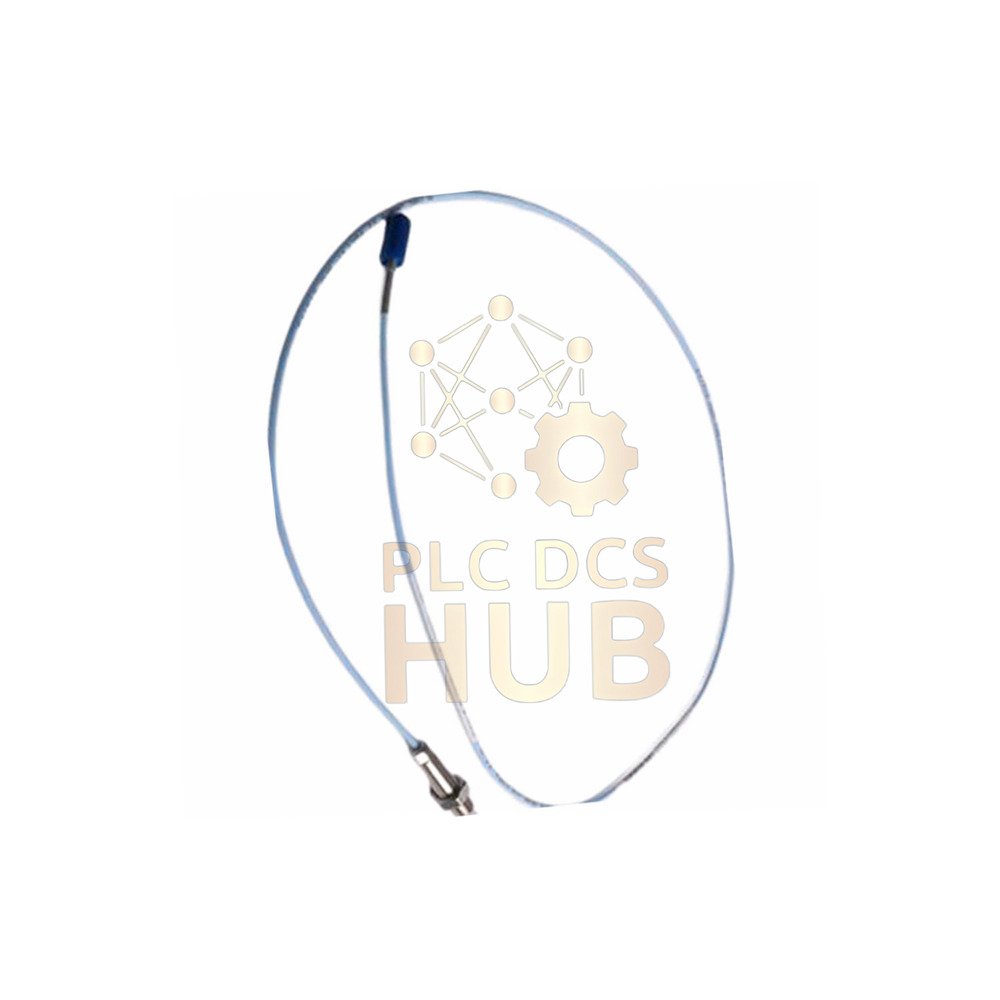

Bently Nevada 330708-00-20-50-02-05 3300 XL 11 mm Proximity Probe, 5m Cable

Description

Product Overview

3300 XL 11 mm Proximity Probes deliver precise radial vibration and position measurements.
Bently Nevada designs these for critical rotating machinery in harsh environments.
The rugged construction ensures reliable data for protection and condition monitoring.

Key Benefits & Diagnostic Capability

• High accuracy – measures static and dynamic displacements with 7.2 Ω ±0.8 probe DC resistance.
• Diagnostic intelligence – built-in tip sense and cable fault detection via coaxial ClickLoc connector.
• Wide frequency response – captures both slow roll and high-speed vibration events.
• Environmental resilience – operates from -51 °C to +177 °C with FEP insulation.
• Interference immunity – triaxial 75 Ω cable design rejects EMI/RFI.

Technical Specifications

• Brand & Model
  • Manufacturer : Bently Nevada
  • Product No. : 330708-00-20-50-02-05
  • Type : 3300 XL 11 mm Proximity Probe
• Measurement range
  • Linear range : 2.0 mm (80 mils) typical
  • Sensitivity : 7.87 mV/µm (200 mV/mil) nominal
  • Resolution : sub‑micrometre (infinite, system dependent)
• Frequency response
  • 0 to 10 kHz (‑3 dB) for vibration
  • DC coupled for position (gap) measurements
• Linearity
  • Deviation ≤ ±1.0 % full range (with matching Proximitor)
• Environmental tolerance
  • Temperature : -51 °C to +177 °C (operating/storage)
  • Pressure seal : Viton O‑ring (differential pressure design)
  • Case material : AISI 304 SST ; Tip : PPS
• Interference rejection
  • 75 Ω triaxial FEP cable, shielded against EMI/RFI

Model Suffix & Configuration

• 330708 – 11 mm probe, 5/8‑18 UNF thread, unarmored
• 00 – 0 in unthreaded length
• 20 – 2.0 in overall case length
• 50 – 5.0 m (16.4 ft) total cable
• 02 – Miniature coaxial ClickLoc connector, std cable
• 05 – Multiple agency approvals (CSA, ATEX, IECEx)

Installation & Mechanical Data

• Thread size : 5/8‑18 UNF (max engagement 0.938 in / 23.8 mm)
• Torque (probe case) : recommended 15.2 N•m (133 in•lb) ; max 45.2 N•m
• Connector torque : finger tight (max 0.565 N•m / 5 in•lb)
• Min. bend radius : 25.4 mm (1.0 in) – armored or standard cable
• Shipping weight : 0.17 kg (probe only)

Compatibility & System Integration

• Designed for 5 m Proximitor sensors (3500/3300 series racks).
• Works with extension cables and BNC terminations (75 Ω system).
• ClickLoc connector ensures quick, secure field replacement.
• Approvals : Multiple (ATEX, IECEx, CSA) for hazardous zones.

Maintenance & Debugging

• Finger‑tight connector simplifies troubleshooting and replacement.
• Built‑in pressure seal (Viton O‑ring) reduces leakage risk.
• DC resistance check (center to outer) : 7.2 Ω ±0.8 verifies cable health.
• No special tools required for standard installation.

Typical Applications

• Radial vibration and thrust position on turbines, compressors, pumps.
• Keyphasor * reference and eccentricity measurement.
• Harsh environments with extreme temperatures or pressure.
• API 670 compliant machinery monitoring systems.

Packaging & Delivery

• What’s included: 1 probe with factory‑mounted ClickLoc connector, test certificate, installation sheet.
• Warranty: 12 months from shipment (defects in material/workmanship).
• Shipping: FedEx, UPS, DHL – express service available.
• Shipped in ESD‑safe, moisture‑barrier packaging.

Frequently Asked Questions

• Q: Can I use this 5 m probe with a 1 m Proximitor?
  A: No. The 5‑meter probe must pair with a 5‑meter Proximitor. Matching lengths ensures correct calibration and sensitivity.
• Q: What is the pressure rating of the seal?
  A: Probes are designed to seal differential pressure but are not factory‑tested. Contact our custom department if you need a pressure test.
• Q: How do I choose between armored and unarmored cable?
  A: For high abrasion or severe mechanical stress, choose armored. Standard FEP suits most industrial environments.
• Q: Does the probe work below -34 °C continuously?
  A: Occasional exposure is acceptable, but continuous operation below -34 °C may shorten pressure seal life.
• Q: What is the advantage of ClickLoc connector?
  A: It provides a positive lock without tools, reduces installation time, and resists loosening from vibration.
