ICS Triplex T8312 Expander Adapter | 7-Chassis Support | HazLoc

Description

Product Overview

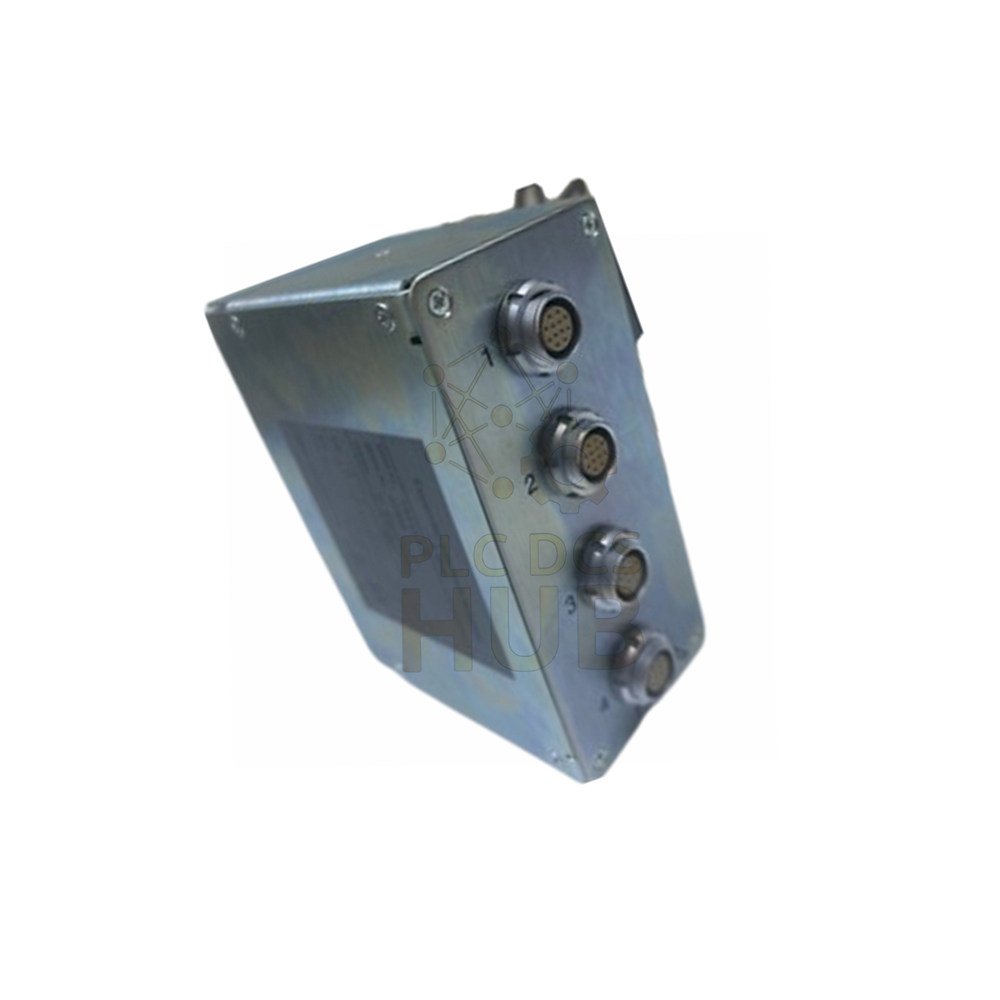

ICS Triplex T8312 is an Expander Interface Adapter. It links controller chassis to expander chassis. This module boosts I/O capacity for critical systems.

Designed for industrial automation. Reliable expansion without complex wiring. Suitable for harsh and hazardous areas.

Technical Specifications

• Brand: ICS Triplex
• Model: T8312
• Part Number: T8312
• Type: Expander Interface Adapter
• Function: Connects controller to expander chassis via processor interface modules.
• Chassis Capacity:
  • T8312/4 – Supports up to 4 expander chassis
  • T8312/7 – Supports up to 7 expander chassis
• Temperature Range: -40°C to +70°C
• Environmental Tolerance: Withstands vibration, humidity, and dust per HazLoc.
• Noise Immunity: High EMC/EMI rejection for stable field operation.
• Weight: 0.65 kg (1.43 lbs)

Installation Guide

• Set controller chassis ID to #1 using DIP switches.
• Assign expander chassis IDs from 2 to 8 for the first seven units.
• For more than seven chassis, add a second adapter.
• Map IDs 2 to 8 again to software IDs 9 through 15.
• Mount adapter firmly in the controller chassis slot.
• Power off all chassis before installation.

Commissioning & Maintenance

• Easy DIP switch access without removing the adapter.
• LED indicators show link and power status.
• No calibration needed – true plug-and-play expansion.
• Power down before removal (hot-swap not supported).

Compatibility

• Fully compatible with ICS Triplex T8000 series controllers.
• Works with T8312/4 and T8312/7 expander chassis kits.
• Requires system software configuration for ID mapping.

Certifications

• Hazardous Location (HazLoc) – Class I, Division 2
• ATEX – II 3G Ex nA IIC T4 Gc
• IECEx – Ex nA IIC T4 Gc
• CE and FCC compliant.

Package Contents & Warranty

• 1 x T8312 Expander Interface Adapter
• Quick start guide with DIP switch settings
• 12-month warranty against manufacturing defects.

Shipping Methods

• FedEx – Priority / Economy
• UPS – Worldwide Express
• DHL – International door-to-door

Typical Applications

• Oil & gas remote I/O expansion
• Power plant distributed control systems
• Chemical processing safety controllers
• Refinery emergency shutdown (ESD) systems

Diagnostic Capabilities

• Backplane communication error detection via system software.
• Chassis ID conflict alert in configuration tool.
• Online status monitoring from controller HMI.
• Power-up self-test.

Frequently Asked Questions (FAQ)

• Q: Does T8312 work with older T8100 chassis?
  A: No. Designed for T8000 series only.
• Q: Can I mix T8312/4 and T8312/7 in one system?
  A: Yes. Software handles ID mapping.
• Q: Is this adapter intrinsically safe?
  A: No. It is Ex nA non-incendive for Zone 2 / Div 2.

Selection Guide & Field Tips

• Selection guide: Count your planned chassis. Add 20% for growth. Pick T8312/7 if expansion is likely.
• Field tip: Always label chassis IDs clearly. Many outages come from wrong DIP switch settings.
• Spare recommendation: Keep one extra adapter for critical plants to cut downtime.
