3300 XL 11 mm Probe 330709 Bently Nevada – Premium M16 Proximity

Description

Product Description

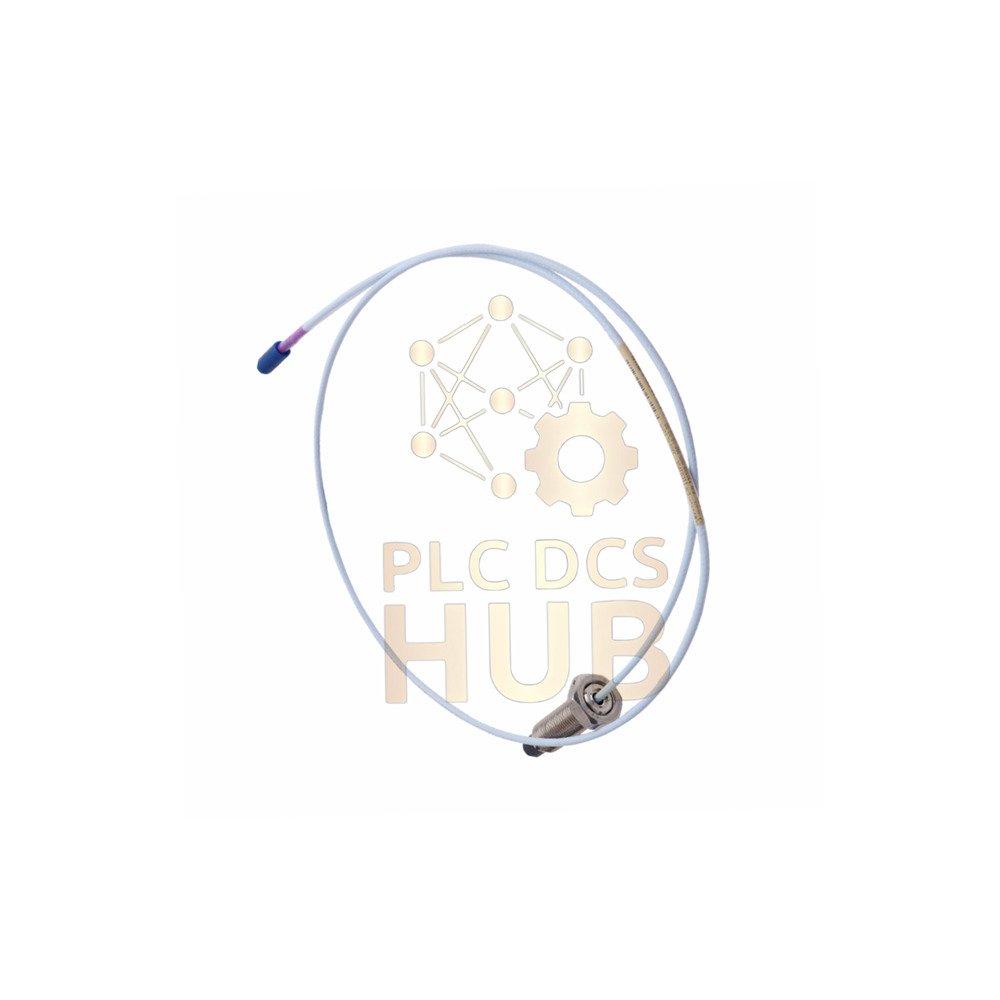

The 3300 XL 11 mm Proximity Probes from Bently Nevada monitor shaft vibration and position. Model 330709-016-240-50-02-00 uses a M16 x 1.5 thread without armor. It has a 16 mm unthreaded length and a 240 mm overall case length. Total cable length is 5.0 metres (16.4 feet). This 5 meter probe works only with the 5 meter Proximitor Sensor. The probe includes a miniature coaxial ClickLoc connector with standard cable. Each unit ships new in original factory packing with a 12-month warranty.

Ordering Code Structure

• 330709 → 3300 XL 11 mm Probe, M16x1.5 thread, no armor
• 016 → 16 mm unthreaded length
• 240 → 240 mm overall case length
• 50 → 5.0 metres total length (16.4 feet)
• 02 → Miniature coaxial ClickLoc connector, standard cable
• 00 → No agency approval required

Key Technical Data

• Brand: Bently Nevada
• Full model: 330709-016-240-50-02-00
• Series: 3300 XL 11 mm Metric
• Made in: U.S.A
• Measurement range: 0 to 4.6 mm (0 to 180 mil)
• Frequency response: 0 to 10 kHz
• Sensitivity: 7.87 mV/µm (200 mV/mil)
• Linearity: ±0.05 mm from 0.5 to 2.5 mm gap
• Resolution: 0.1 µm typical
• Probe tip: Polyphenylene sulfide (PPS)
• Probe case: AISI 304 stainless steel (SST)
• Cable: 75 Ω triaxial, FEP insulated
• DC resistance: 7.2 ± 0.8 ohms (5.0 m cable)
• Operating temp: -52°C to +177°C (-62°F to +351°F)
• Storage temp: -52°C to +105°C (-62°F to +221°F)
• Humidity: 100% condensing (non-submersible)
• Test standard: IEC 68-2-3 damp heat

Mounting & Mechanical Specs

• Thread size: M16 x 1.5
• Max thread engagement: 24 mm
• Unthreaded length: 16 mm
• Case length: 240 mm
• Recommended torque (case): 21.1 N·m (187 in·lb)
• Max torque (case): 63.3 N·m (560 in·lb)
• Connector torque (max): 0.565 N·m (5 in·lb)
• Connector torque (best): Finger tight only
• Minimum bend radius: 25.4 mm (1.0 in)

Installation Requirements

• Use only with 5 meter Proximitor Sensor (important)
• Keep probe above -34°C before and during setup
• Do not force the ClickLoc connector – finger tight is enough
• Protect connectors from direct water or submersion
• Target flat surface min diameter: 30.5 mm
• Shaft min diameter: 152 mm (to avoid cross-talk)

Magnetic Field Immunity (60 Hz, up to 300 Gauss)

• At 0.5 mm gap: 0.001 mV pp/gauss
• At 2.5 mm gap: 0.009 mV pp/gauss
• At 4.6 mm gap: 0.027 mV pp/gauss

Calibration & Care

• Factory calibrated – no user calibration needed
• Clean tip with soft dry cloth only
• Inspect cable for cuts or kinks every 6 months
• Check connector for dirt or moisture before each use

Compatibility Note

• This 5 meter probe works ONLY with 5 meter Proximitor Sensor
• Do not pair with 1m or 9m Proximitor models
• Use 75 ohm coaxial extension cables only
• Fits Bently Nevada 3300 XL monitoring systems

Certifications

• Agency approval: 00 = Not required
• Tested to IEC 68-2-3 (damp heat)
• EPL Ga, Gc, Dc capable (probe only)
• Made in U.S.A

Package Contents

• 1 x 330709 probe with 5m cable attached
• 1 x Miniature coaxial ClickLoc connector
• Factory packing with installation guide
• No tools or extra parts included

Warranty & Shipping

• Warranty: 12 months from Bently Nevada
• Condition: New & original factory packing
• FedEx – Priority available
• UPS – Express worldwide
• DHL – International freight

Typical Use Cases

• Steam turbine radial vibration monitoring
• Gas compressor shaft position measurement
• Large pump thrust position
• Generator eccentricity tracking
• Diagnoses: bearing wear, imbalance, misalignment, rub

Professional FAQ

• Why must this 5m probe pair only with a 5m Proximitor Sensor? The cable length changes resistance and capacitance. Matching lengths ensures correct calibration and linear output. Using wrong length causes measurement errors.
• What does unthreaded length 016 mean for installation? You have 16 mm of smooth case before threads start. This helps position the probe tip deeper inside a housing without threading the whole case.
• Can I use this probe in a vacuum or high pressure environment? The Viton O-ring seals differential pressure. Bently Nevada does not pre-test each probe. Contact their custom team if you need a pressure test certificate.
• The case length is 240mm – very long. Where would I need this? Long reach applications like through thick bearing housings or past oil deflectors. Measure your mounting hole depth before ordering.
• What does approval option 00 mean for my plant? No safety agency certification. Suitable for internal use where local regulations do not require Ex or other approvals. Check your local codes first.

Buying Guide – Selection Tips

• Choose unthreaded length 016 when you need deep tip positioning
• Pick case length 240 for reaching through thick walls or long holders
• Select total length 50 (5m) only if your Proximitor is also 5m version
• Use connector 02 (standard cable) for dry clean environments
• Pick approval 00 when no certificate needed (saves cost)
• Need 1 meter cable? Order total length 10 instead
• Need armor for crush protection? Look at 330704 or 330706 models
• Verify shaft diameter is 152 mm or larger before buying
• Check flat target area: must be at least 30.5 mm wide
• Store probe above -52°C and below +105°C when not in use
