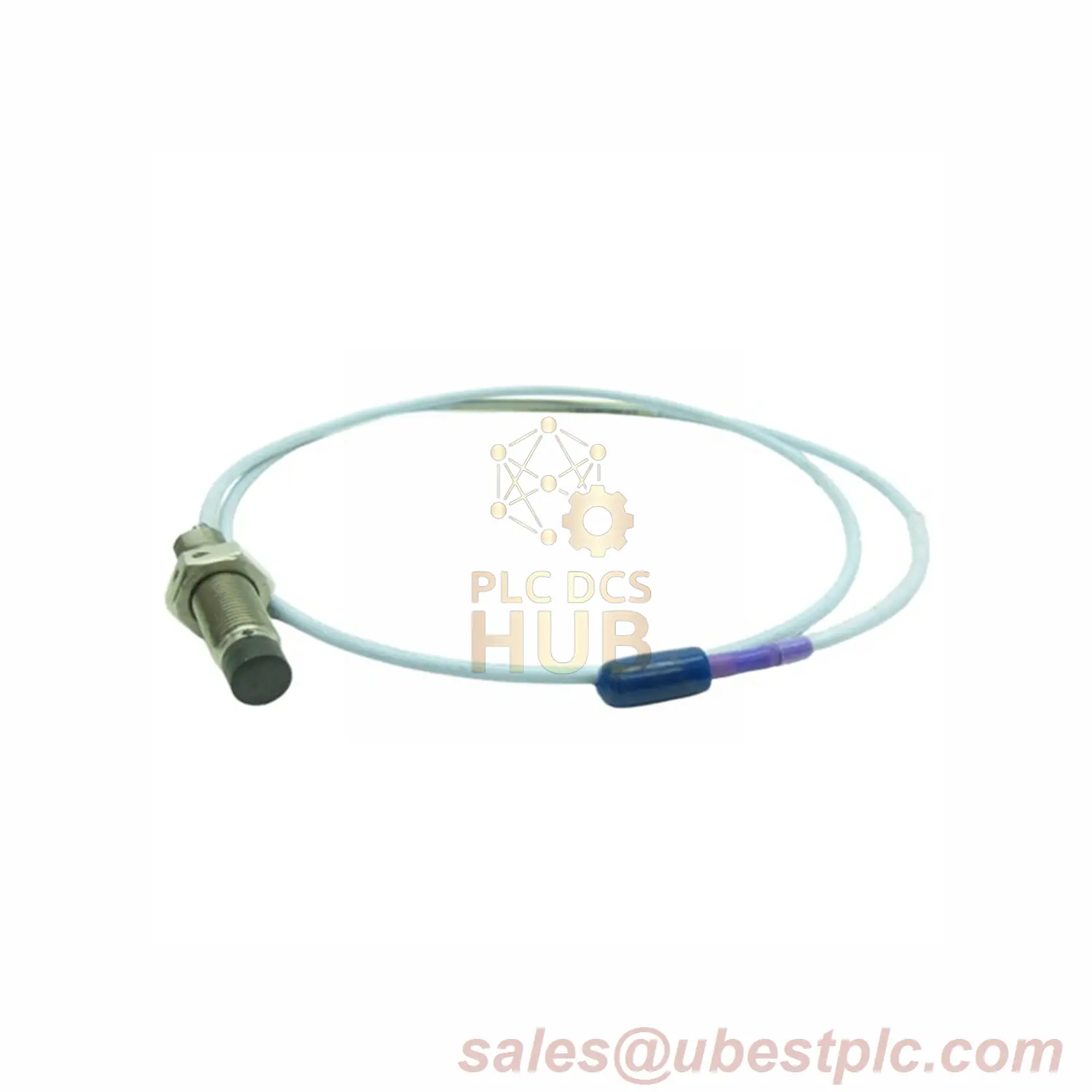

Bently Nevada 3300 XL Proximity Probe – 1 Meter (P/N: 330708-00-10-10-02-00)
Product Overview
New USA-made vibration sensor with 12-month warranty. 5/8-18 UNF thread, no armor. Ships worldwide via FedEx, UPS, DHL.
Complete Part Number Breakdown
- Base: 330708 (5/8-18 thread without armor)
- Unthreaded length: 00 = 0 inches
- Case length: 10 = 1.0 inch
- Cable length: 10 = 1.0 meter
- Connector: 02 = ClickLoc with standard cable
- Approvals: 00 = Basic certification
Technical Specifications
Electrical:
– Cable resistance: 5.9Ω ±0.5
– Output range: -1V to -13V DC
– Cable type: 75Ω triaxial FEP
Mechanical:
– Thread: 5/8-18 UNF
– Max thread depth: 0.938 inch
– Bend radius: 25.4 mm (1 inch)
– Weight: 0.17 kg
Environmental:
– Temp range: -51°C to +177°C
– Seal material: Viton O-ring
– Warning: Below -34°C may damage seal
Installation Guide
Mount with finger tight force
Max torque: 15.2 N•m (133 in-lb)
Keep wiring under 305 meters
Avoid temperatures below -34°C
Compatibility Notes
Works with standard 75Ω systems
Fits 5/8-18 UNF mounting holes
Triaxial cable for better noise protection
Made in USA with COO available
Package Includes
1 x Proximity probe
Product documentation
Warranty information
Support & Delivery
12-month factory warranty
Ships same day from USA
FedEx, UPS, DHL options
Frequently Asked Questions
Q: Cable length options?
A: 1m (this model), 5m or 9m
Q: Pressure seal testing?
A: Available through custom department
Q: Minimum operating temperature?
A: -51°C but avoid below -34°C
Q: Thread adapter available?
A: For M14/M16 threads, max 21-24mm depth
Q: Triaxial vs coaxial difference?
A: Extra shield layer for better noise protection
Q: Weight for shipping?
A: 0.17 kg per unit
