Description

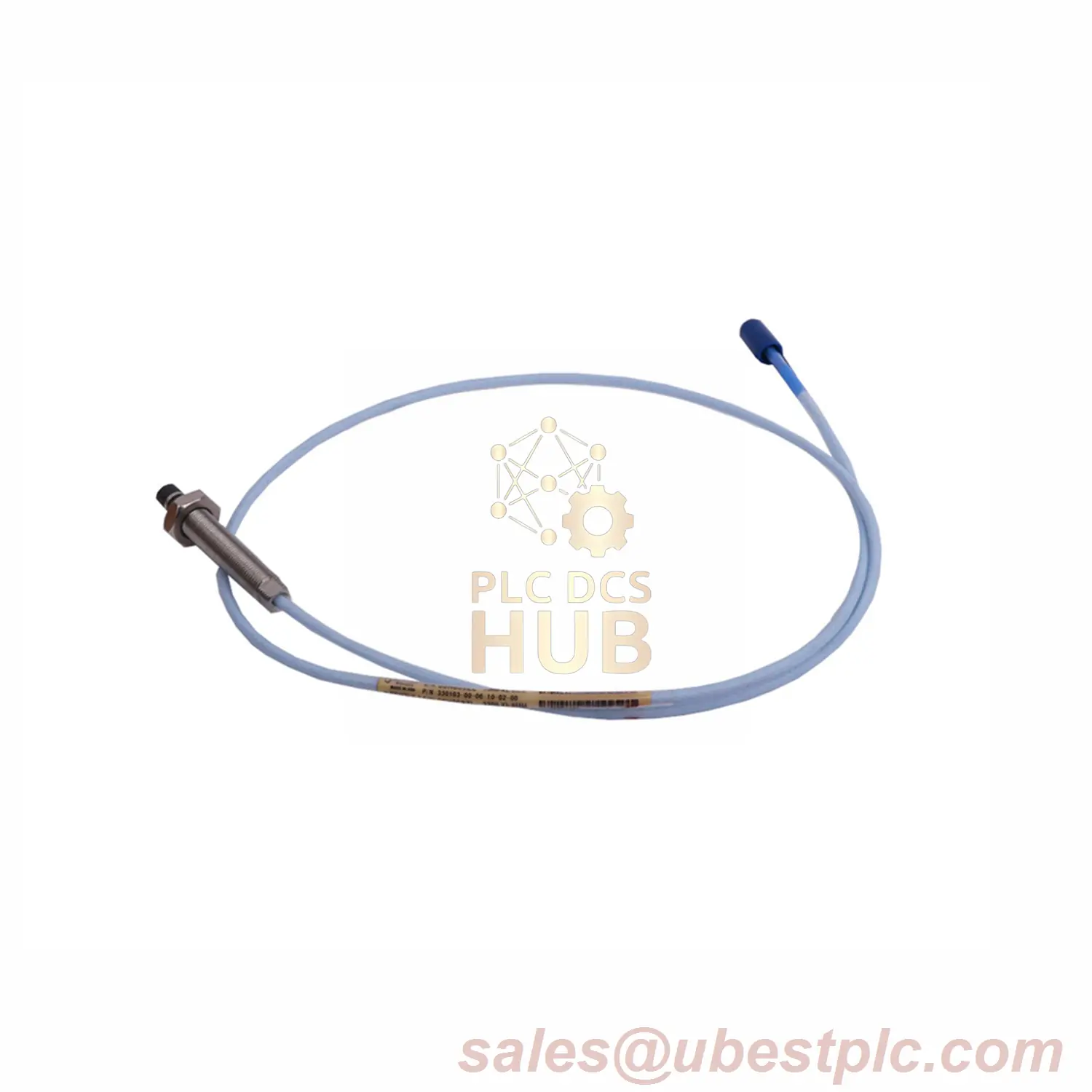

Bently Nevada XL Proximity Probe with Triaxial Cable
Product Overview
- Part Number: 330708-00-24-10-11-00
- Made in USA with optional Certificate of Origin
- Cable Length: 1.0 meter (3.3 feet) FluidLoc triaxial
- Thread Size: 5/8-18 UNF without armor
- 12-month warranty included
Model Number Breakdown
- 330708 = 11mm Probe Body
- -00- = 0 inch unthreaded length
- -24- = 2.4 inch case length
- -10- = 1.0 meter cable
- -11- = ClickLoc + FluidLoc
- -00 = No approvals needed
Key Specifications
- Resistance: 5.9Ω ±0.5Ω
- Thread Engagement: Max 0.938 inch
- Case Torque: 15.2 N•m recommended (45.2 N•m max)
- Cable Type: 75Ω triaxial FEP
- Bend Radius: 25.4 mm minimum
- Weight: 0.17 Kg
Temperature Information
- Operating Range: -51°C to +177°C
- Storage Range: -51°C to +177°C
- Warning: Below -34°C may damage pressure seal
Installation Guide
- Use 15.2 N•m torque for probe case
- Connectors: Finger tight only
- Keep cable bends gentle (>25.4mm radius)
- Do not expose to temperatures below -34°C
Shipping Details
- New in factory packaging
- Worldwide via FedEx, UPS, DHL
- Certificate of Origin available
- Full 12-month warranty
Common Questions
- Q: What does triaxial mean?
A: Three-layer cable for better signal protection - Q: Why UNF threading?
A: Standard for heavy industrial equipment - Q: Pressure rating?
A: Viton O-ring seal (ask for testing) - Q: Cable options?
A: 1m, 5m or 9m lengths available - Q: Made in USA?
A: Yes, with optional origin certificate
Special Features
Designed for extreme conditions with triaxial FluidLoc cable and wide temperature range. Perfect for demanding industrial monitoring where accuracy matters.
