Description
Heavy-Duty Vibration Expert

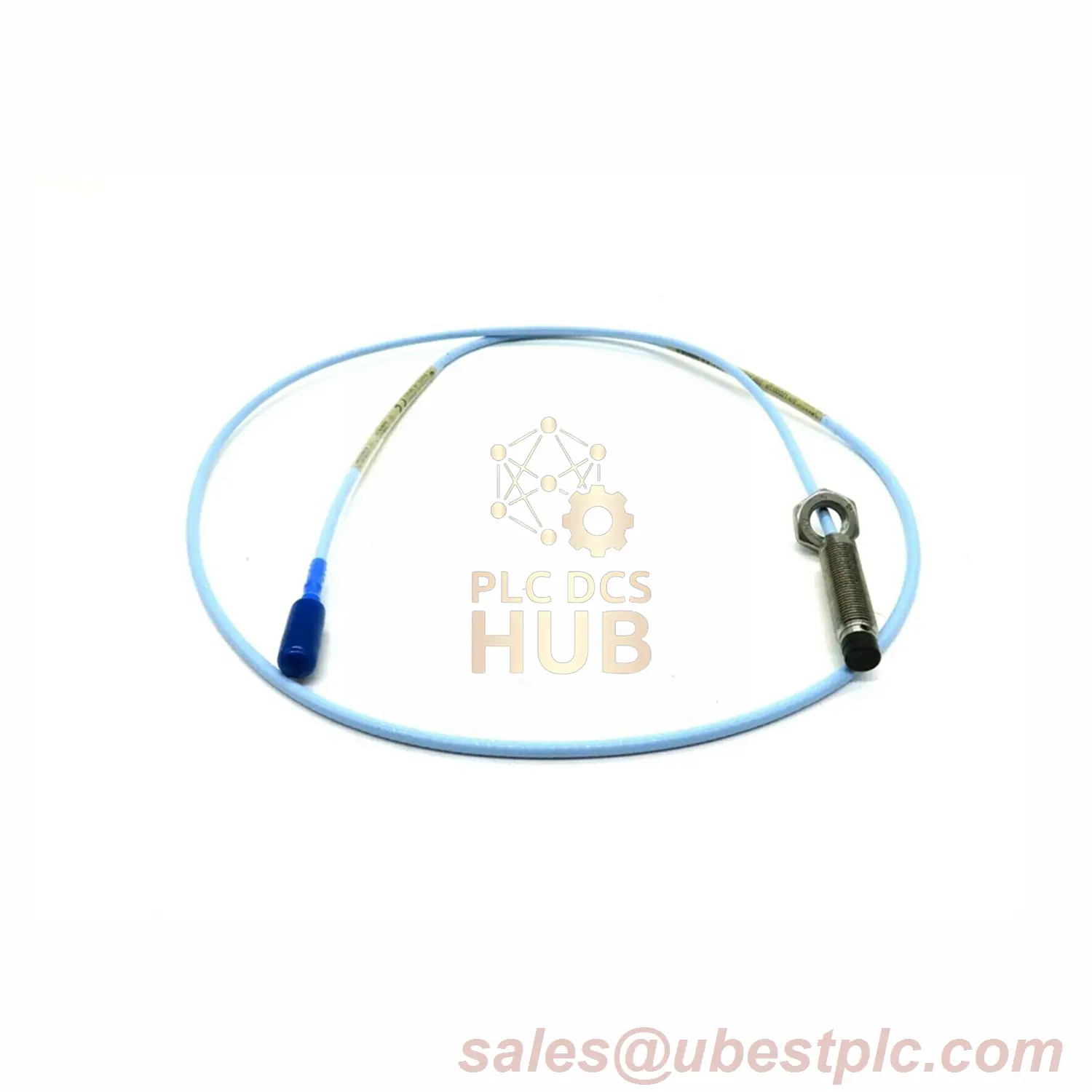

Bently Nevada 3300 XL ETR Probe (Model: 330191-00-70-20-00) delivers extreme temperature resilience with 7-inch case and 2m cable. Features gold-plated connectors and Viton® seals. Ideal for high-heat industrial monitoring. New original stock with 12-month warranty.
Complete Part Number Breakdown
| 330191-00-70-20-00 | 00 (No Certifications) | 70 (7″ Case) | 20 (2m Cable) |
Technical Edge
⚡ -17.5V to -26V DC
Power Input Range
???? 50Ω Output
Low Signal Loss
Industrial Champions
- ????️ Steel Foundries: Monitors furnace rollers at 232°C
- ???? Brewery Tanks: Withstands steam cleaning cycles
- ???? Locomotive Engines: Survives high-vibration environments
Key Specifications
- Probe Resistance: 7.88Ω ±0.50 @2m
- Max Torque: 5 in•lbf (0.565 N•m)
- Cable Type: 75Ω Triaxial FEP
- Weight: 11.4 oz/m
- Temp Range: -55°C to +232°C
Installation Guide
- Use 16-24 AWG wiring
- Apply max 5 in•lbf torque
- Keep voltage between -17.5V to -26V
Package Contents
- 8mm Probe (7″ case)
- 2m FEP Cable
- Gold-Plated Connectors
- Factory Documentation
