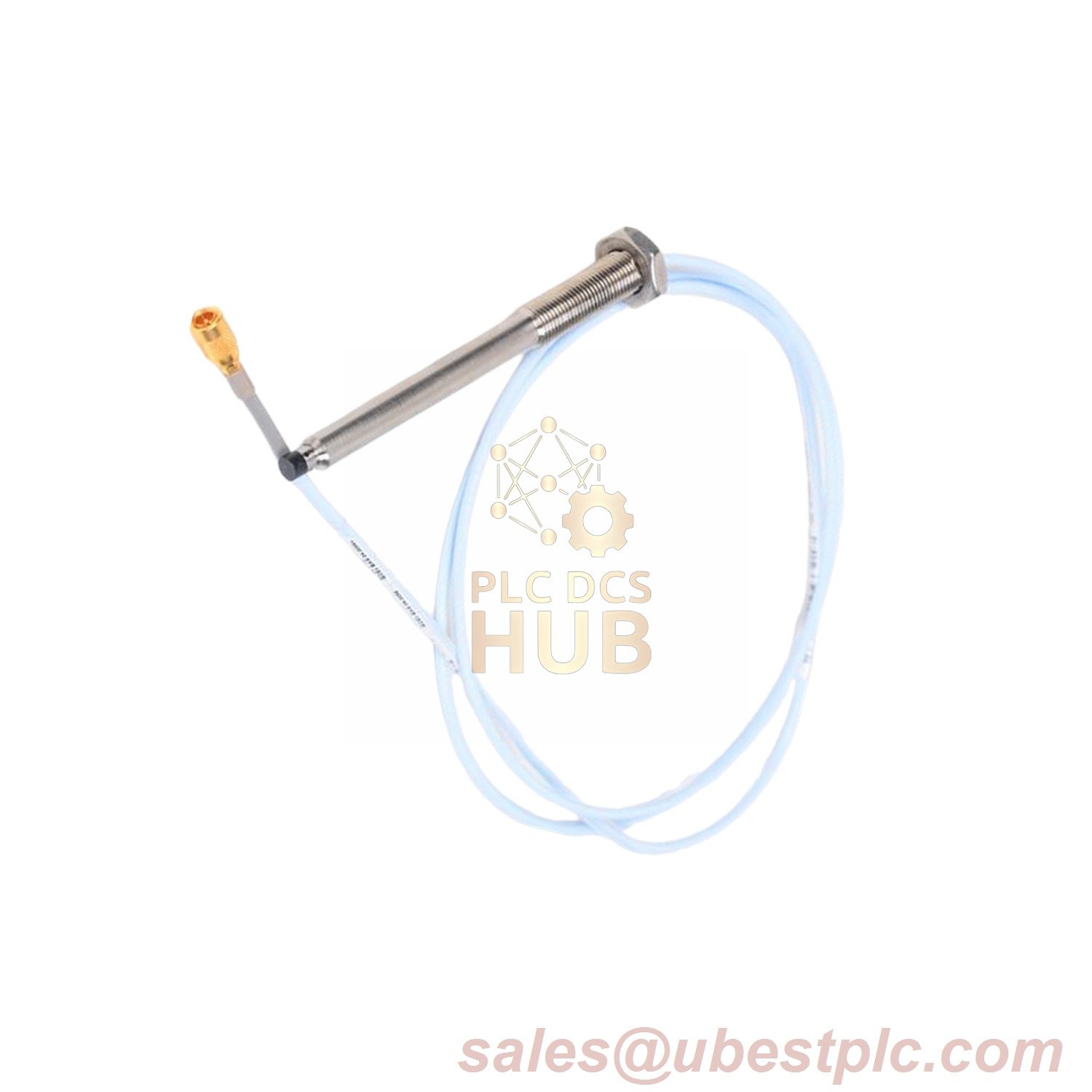

The Bently Nevada 330101-00-10-10-02-CN is a rugged 8 mm proximity probe designed for high-precision vibration and position monitoring. Featuring a 3/8-24 UNF thread, 1.0-inch case length, and Miniature ClickLoc connector, this probe integrates patented TipLoc and CableLoc technologies for exceptional durability and 330 N (75 lbf) cable pull strength. Built for reliability in harsh environments, it complies with country-specific approvals (CN) and delivers stable performance in extreme conditions.
Technical Data
| Parameter | Specification |
|---|---|
| Brand | Bently Nevada |
| Model | 330101-00-10-10-02-CN |
| Suffix Breakdown | -00 (0.0 in unthreaded),
-10 (1.0 in case), -10 (1.0 m cable), -02 (ClickLoc connector), CN (country approvals) |
| Product Type | 3300 XL 8 mm Probe, 3/8-24 UNF thread, unarmored |
| Total Length | 1.0 meter (3.3 feet) |
| DC Resistance (RPROBE) | 7.59 ± 0.50 Ω at 1.0 m |
| Insulation Resistance | ≥500 MΩ at 500 V DC |
| Cable Jacket Abrasion | 1,000 cycles (per IEC 60245-2) |
| Thermal Shock Resistance | 50 cycles (-40°C to +125°C, per IEC 60068-2-14) |
| Dielectric Strength | 2,000 V AC (1 minute, conductor to shield) |
| Burst Pressure Rating | 10 bar (145 psi) for probe tip seal |
| Cable Flex Life | 20,000 cycles (dynamic bending at 6x diameter) |
| UV Resistance | 1,000 hours (per ISO 4892-3) |
| Flame Resistance | UL 94 V-0 compliant |
| Storage Conditions | -60°C to +85°C (unpowered) |
| Phase Stability | ±1° over 0°C to +70°C |
| Transient Voltage Protection | ±50 V (per IEC 61000-4-5) |
| Probe Tip Surface Roughness | Ra ≤0.4 µm (electropolished finish) |
| Weight | 323 g/m (11.4 oz/ft) |
Contact Support
For certification documents or custom configurations:
sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
