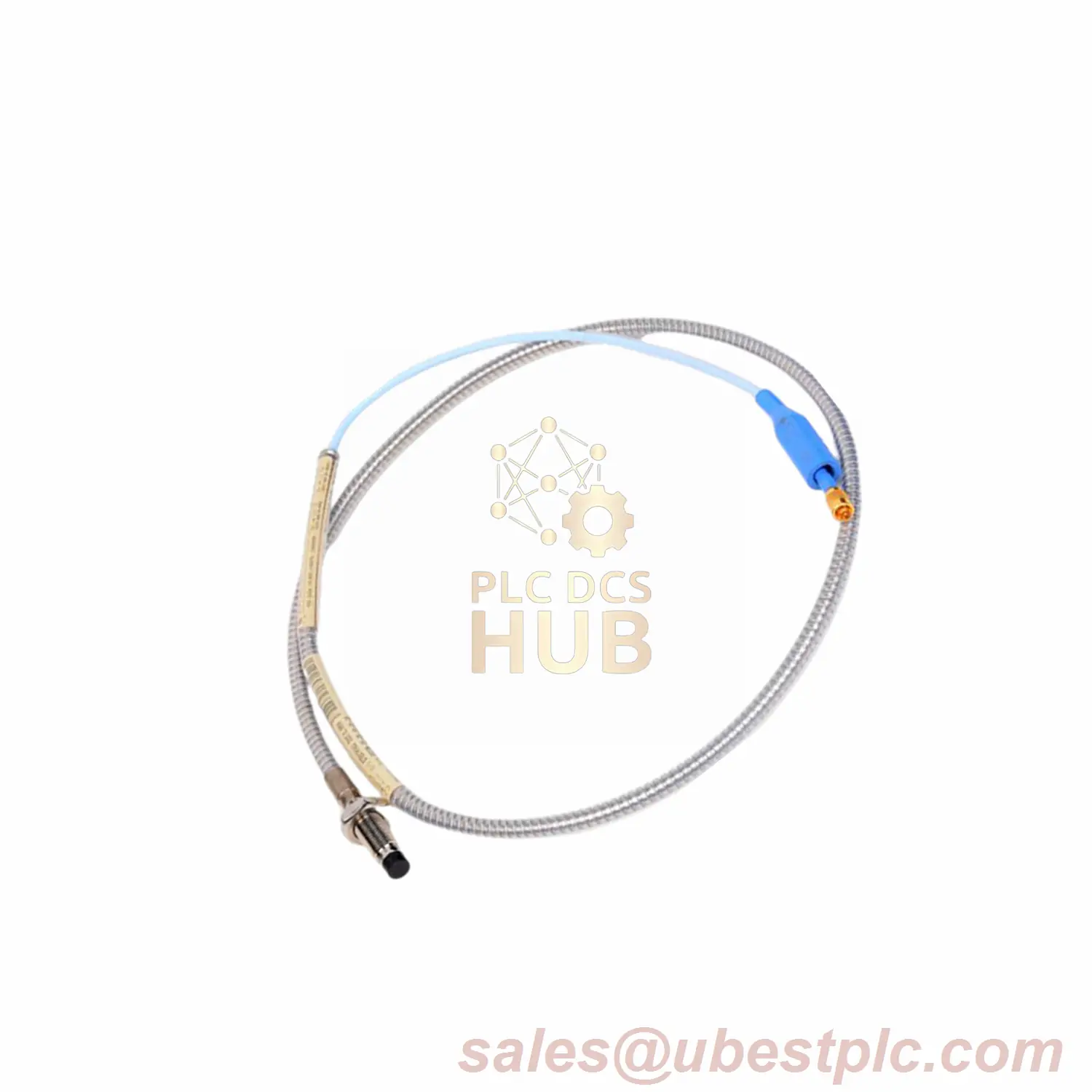

3300 XL 8 mm Proximity Probe – 330101-00-20-10-12-05 Bently Nevada

Description

Product Overview

The Bently Nevada 3300 XL 8 mm Probe (Model: 330101-00-20-10-12-05) is a heavy-duty sensor for vibration monitoring in extreme conditions. Built with a 3/8-24 UNF thread and FluidLoc cable, it prevents fluid leaks and resists physical damage.

Key Specifications

• Brand: Bently Nevada
• Model: 3300 XL 8 mm Probe (330101-00-20-10-12-05)
• Case Length: 2 in (20)
• Cable Length: 1.0 m (10)
• Connector: Miniature ClickLoc with FluidLoc (12)
• Certifications: CSA, ATEX, IECEx (05)

Technical Details

• Pressure Seal: Viton® O-ring (not pre-tested).
• Humidity Resistance: <3% ASF change at 93% humidity (56 days).
• Weight: 11.4 oz/m (323 g/m).
• Cable Pull Strength: 330 N (75 lbf).
• Field Wiring: 16-24 AWG shielded triad cable (max 305m).
• Output Signal: 7.87 V/mm (±5% for 1/5m systems).
• Linear Range: 0.25–2.3 mm (10–90 mils).

Temperature Limits

• Standard Probe: -62°F to +350°F (-52°C to +177°C).
• Extended Range (ETR): Probe tip: -62°F to +425°F (-52°C to +218°C); Cable: -60°F to +500°F (-51°C to +260°C).

Installation Tips

• Use shielded triad cable for noise reduction.
• Set radial vibration gap to 1.27 mm (50 mils/-9Vdc).
• Avoid installation below -30°F (-34°C) to protect seals.

Real-World Applications

• Mining Equipment: Monitors crusher vibrations to prevent breakdowns.
• Chemical Plants: Tracks pump health in corrosive environments.
• Power Grids: Ensures stability in high-voltage generator systems.

What’s Included

• 3300 XL 8 mm Probe
• FluidLoc Cable with ClickLoc Connector

Warranty & Support

12-month warranty. Excludes seal damage from improper installation. Custom pressure testing available on request.

Contact: sales@ubestplc.com

Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
