3300 XL 8 mm Proximity Probe 330104-01-05-50-02-02- Bently Nevada

Description

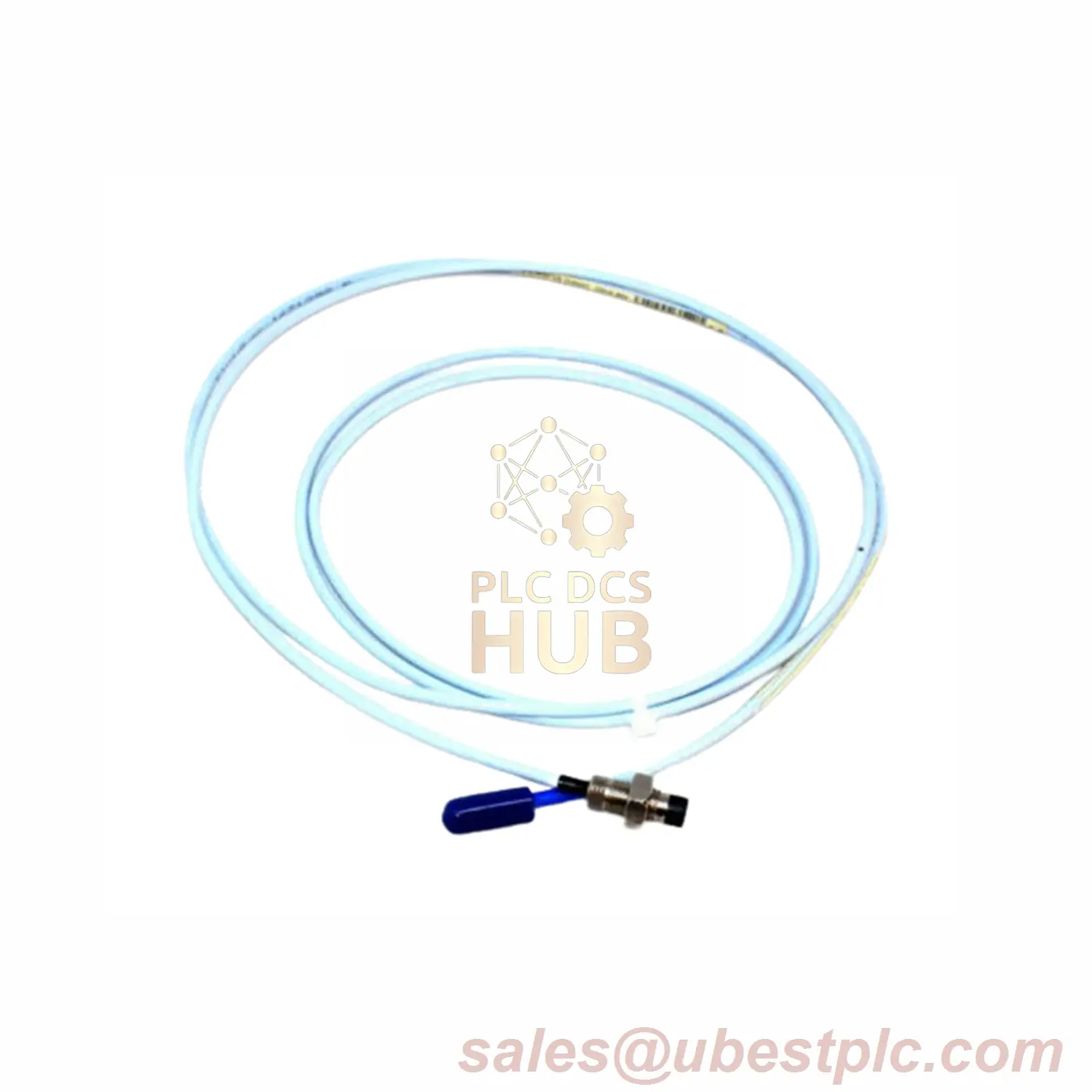

Bently Nevada 3300 XL 8 mm Proximity Probe

Engineered for high-reliability machinery monitoring, 330104-01-05-50-02-02 features an M10 x 1 threaded design with armored casing for industrial durability. Ideal for precision vibration and position measurement in extreme conditions.

Technical Specifications

• Brand: Bently Nevada
• Model: 330104-01-05-50-02-02
• Suffix Details:
  01 (Unthreaded Length: 10 mm) |
  05 (Case Length: 50 mm) |
  50 (5.0 m Cable) |
  02 (ClickLoc Connector) |
  02 (Agency: ATEX/IECEx Certified)
• DC Resistance: 8.73 Ω ±0.50 @ 5.0 m
• Output Signal: -24 Vdc, 50 Ω impedance
• Accuracy: ±1% full scale (AISI 4140 target)
• Operating Temp: -55°C to +232°C (T1 rated)
• Pressure Seal: Viton® O-ring (up to 20 bar differential)

Recommended Compatible Systems

• Proximitor® Sensor: 3300 XL 8mm 5m System (Model: 330180-50-00)
• Extension Cable: 330130-040-02-02 (4m, ClickLoc)
• Mounting Kit: 330104-01-MK (M10 threaded adapters)

Certifications & Safety

• ATEX/IECEx: Ex ia IIC T1-T5 Ga (Zone 0) | Ex ec IIC T1-T5 Gc (Zone 2)
• FM Approved for Class I Div 2 Groups A-D
• IP67 environmental protection

Package Contents

• 3300 XL 8 mm Probe with 5.0m cable
• Installation manual (Drawing 140979/141092)
• Calibration certificate (AISI 4140 compliant)

Performance Data

• Frequency Response: 0 to 12 kHz (±3 dB)
• Linearity: ±1.5% over 2 mm range
• Temperature Drift: <0.05%/°C

Why This Model?

• Compact 50mm case for tight spaces
• Certified for explosive atmospheres (Zone 0/2)
• Low-noise 50 Ω output for long-distance signal integrity

Contact: For configuration support, email sales@ubestplc.com.

Contact Information

For technical support or orders, email sales@ubestplc.com

Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
