Description
Compact Industrial Sensing Solution

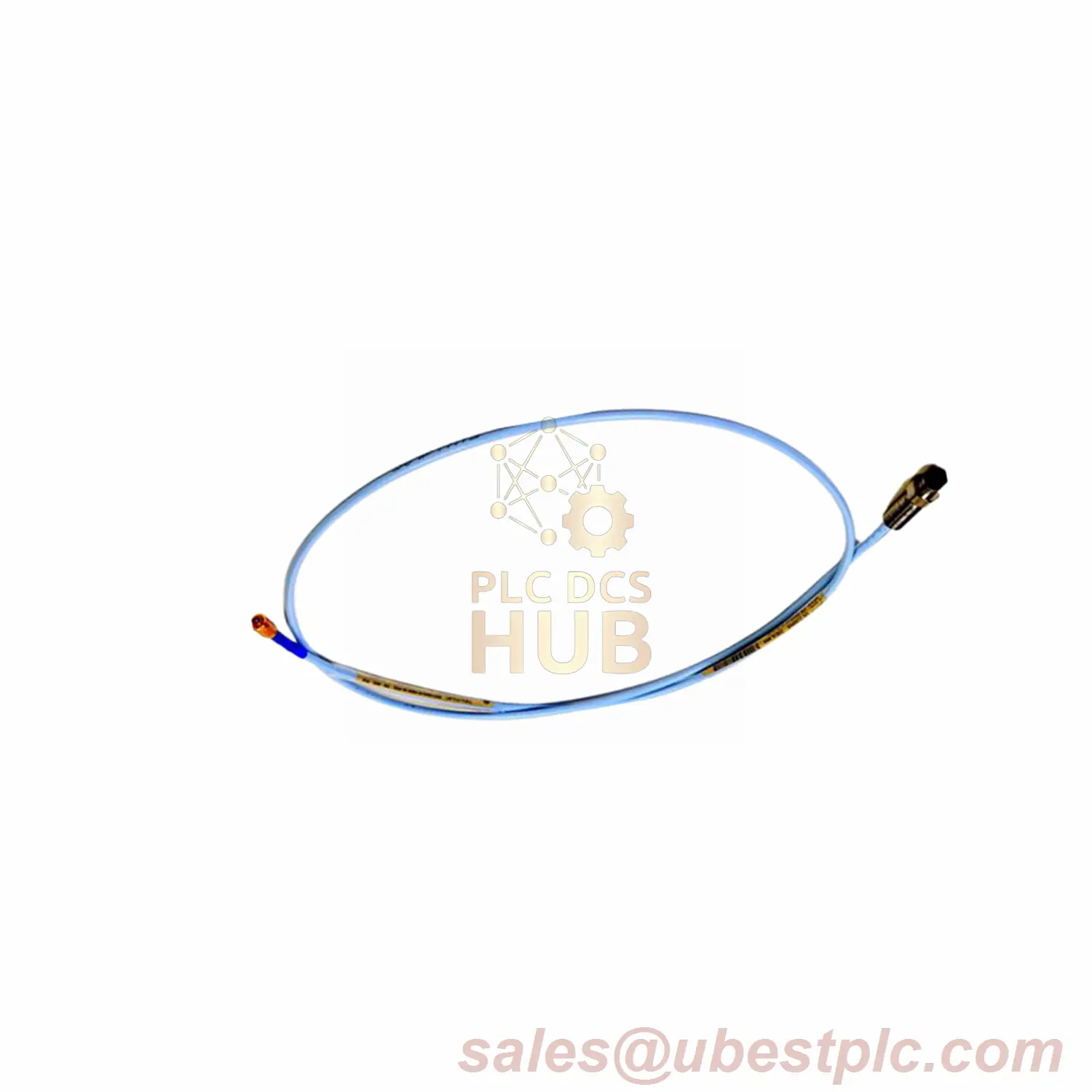

Designed for short-range monitoring, the Bently Nevada 330104-00-03-20-02-CN combines a fully threaded M10x1 body (0mm unthreaded) with a 30mm ultra-compact case. Features a 2-meter standard cable with ClickLoc connector, optimized for cabinet-mounted systems requiring country-specific certifications.
Critical Identifiers
- MFG: Bently Nevada
- Series: 3300 XL 8mm
- Full PN: 330104-00-03-20-02-CN
- (00=0mm Unthreaded, 03=30mm Case, 20=2m Cable, 02=Standard Connector, CN=Country Approval)
Key Metrics
- Resistance: 9.87Ω ±0.50Ω @2m
- Null Voltage: -10.5 Vdc ±0.25 V
- Cable Shielding: 85% coverage braid
Operational Limits
- ▶ Surge Immunity: 4kV (IEC 61000-4-5)
- ▶ EMI Threshold: 10 V/m (80MHz-1GHz)
- ▶ Dielectric Strength: 1500 VAC/1min
Mechanical Specifications
- Radial Play: ≤0.05mm at probe tip
- Axial Load Capacity: 50N continuous
- Thread Runout: <0.01mm TIR
Certification Details
CN-Specific: GB3836.1-2010 Ex ia IIC T4
Global: IECEx IEC 60079-11:2011
Installation Protocol
- Verify M10x1 thread cleanliness
- Apply anti-seize compound (nickel-based)
- Torque to 8–10 Nm using calibrated tool
Reliability Assurance
10,000-hour MTBF rating under continuous operation at +85°C.
Target Industries
- ???? Food Processing: Mixer shaft RPM verification
- ???? Automotive Robotics: Welding arm position feedback
- ???? Rail Transport: Bogie suspension monitoring
Regional Compliance: Contact sales@ubestplc.com for CN certification details.
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
