Product Description

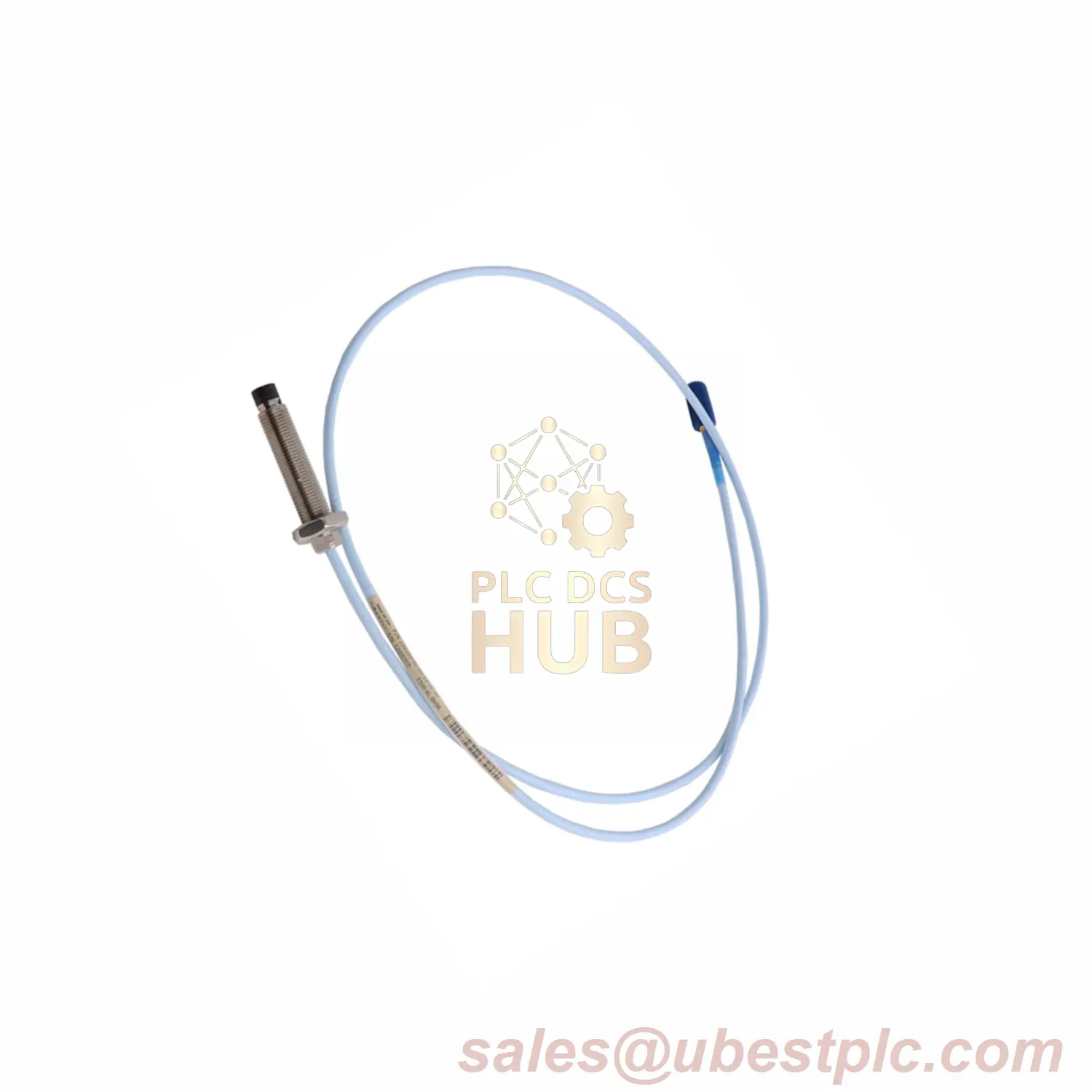

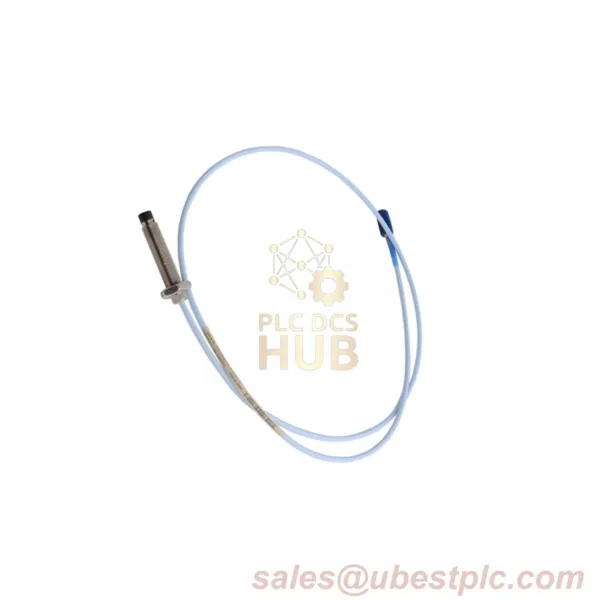

The Bently Nevada 3300 XL 8 mm Proximity Probe (Model: 330104-00-09-50-02-00) is a high-performance sensor designed for precision vibration and position monitoring in industrial machinery. Featuring an AISI 303/304 stainless steel case, PPS probe tip, and Viton® O-ring sealing, it ensures durability in harsh environments. Compatible with 5-meter Proximitor sensors, this probe includes a Miniature ClickLoc connector and meets rigorous safety certifications.
Technical Data
- Brand: Bently Nevada
- Model: 330104-00-09-50-02-00
- Suffix Breakdown:
- Unthreaded Length: 00 mm
- Case Length: 90 mm
- Total Cable Length: 5.0 meters (16.4 ft)
- Connector: Miniature coaxial ClickLoc
- Agency Approval: Not required (00)
- Probe Resistance: 8.73 Ω ±0.50 (5.0 m cable)
- Output Signal: -17.5 Vdc to -26 Vdc, 50 Ω resistance
- Accuracy: Sensitivity <2 mV/V
- Operating Temperature: -55°C to +232°C (T1 classification)
Installation Guide
Install with a 1.27 mm (50 mil) gap from the target (AISI 4140 steel). Use M10x1 thread for secure mounting. Ensure compatibility with 5-meter Proximitor sensors only. Follow intrinsic safety guidelines for hazardous areas.
Certifications
- ATEX/IECEx: AEx/Ex ia IIC T1-T5 Ga (Zone 0), AEx/Ex nA/ec IIC T1-T5 Gc (Zone 2)
- UL/CEC: Class I Div 2, Groups A-D; Class II/III
Why Choose This Probe?
- High accuracy with ±0.50 Ω tolerance
- Explosion-proof certifications for safety-critical environments
- Robust stainless steel construction
Recommended Accessories
- 3300 Proximitor Sensor (5-meter)
- 3300 XL Extension Cables
- M10x1 Mounting Hardware
