Description
Product Overview

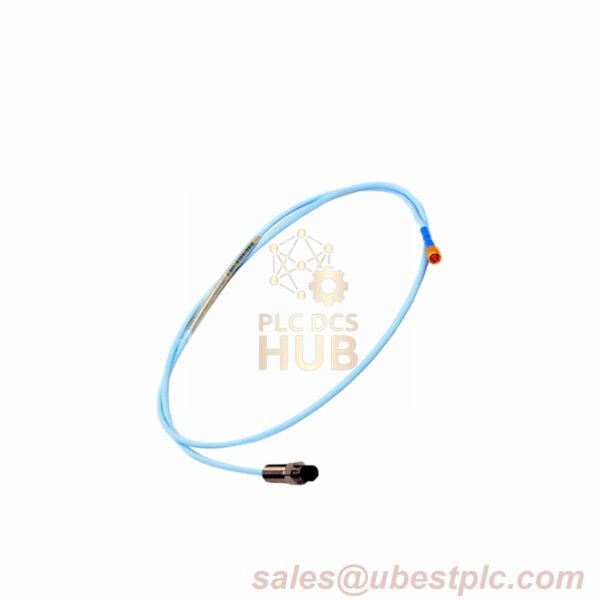

The Bently Nevada 3300 XL 8 mm Probe (Model 330140-08-50-01-00) offers extended reach and rugged performance for industrial monitoring. Designed exclusively for 5-meter Proximitor systems, this probe features a 5.0-meter standard cable with a ClickLoc connector protector, ensuring secure connections in high-vibration environments. Its patented TipLoc molding and robust 8 mm PPS plastic tip enhance durability, while the stainless steel casing resists mechanical stress. Though FluidLoc fluid resistance is optional, this model prioritizes simplicity with no mandatory certifications, making it ideal for standard industrial applications.
Technical Specifications
- Brand: Bently Nevada
- Model: 330140-08-50-01-00
- Suffix Breakdown:
- 08: 0.8-inch case length
- 50: 5.0-meter cable (16.4 feet)
- 01: ClickLoc connector with protector + standard cable
- 00: No agency certifications required
- Suffix Breakdown:
- Probe Tip: Polyphenylene sulfide (PPS)
- Case Material: AISI 303/304 stainless steel
- Temperature Range:
- Standard: -62°F to +350°F (-52°C to +177°C)
- Extended: Tip up to +425°F (+218°C); cable/connector up to +500°F (+260°C)
- DC Resistance: 8.73 Ω ±0.50 (5.0-meter length)
- Scale Factor: 7.87 V/mm ±5% (1/5m systems) or ±6.5% (9m/ETR systems)
- Linearity Deviation: <±0.025 mm (1 mil) for 1/5m; <±0.038 mm (1.5 mil) for 9m/ETR
- Humidity Resistance: <3% ASF change at 93% humidity (56 days, IEC 68-2-3)
- Cable Lifespan: 25,000+ flex cycles at 35 mm bend radius
- Vibration Resistance: 15 g peak (10–2000 Hz, ISO 10816-3)
- EMI Shielding: 90 dB attenuation up to 1 GHz
Contact Information
For inquiries or custom configurations, email sales@ubestplc.com. Our team will gladly assist with technical details or order processing.
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
