3300 XL 8 mm Proximity Probes – 330141-08-30-11-05 Bently Nevada

Description

Product Overview

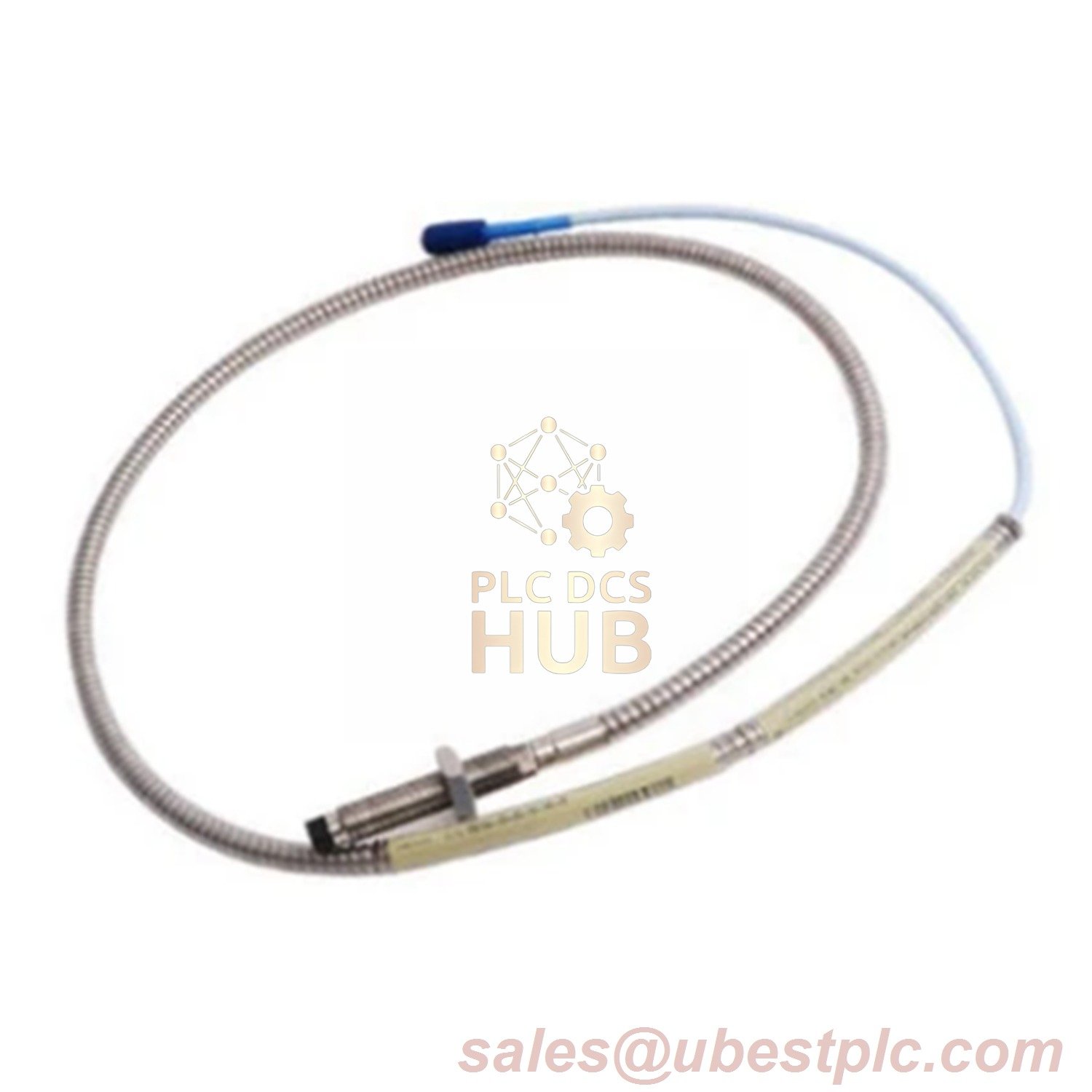

The Bently Nevada 3300 XL 8 mm Armored Probe (Model 330141-08-30-11-05) is a high-performance sensor designed for extreme industrial environments requiring hazardous-area certifications and fluid resistance. Featuring CSA, ATEX, and IECEx approvals, this probe integrates a 3.0-meter FluidLoc cable with a ClickLoc connector protector, ensuring leak-proof performance in oil, chemical, or high-moisture settings.

Technical Specifications

• Brand: Bently Nevada
• Model: 330141-08-30-11-05
  • Suffix Breakdown:
    • 08: 0.8-inch case length
    • 30: 3.0-meter cable (9.8 feet)
    • 11: ClickLoc connector with protector + FluidLoc cable
    • 05: CSA, ATEX, IECEx certifications
• Probe Tip: Polyphenylene sulfide (PPS)
• Armor Material: 316 stainless steel braid (0.5 mm thickness, 95% coverage)
• Temperature Range:
  • Operating: -62°F to +350°F (-52°C to +177°C)
  • Storage/Shipping: -76°F to +185°F (-60°C to +85°C)
• Hazardous Area Compliance: ATEX II 2G Ex ia IIC T4 Ga / IECEx Ex ia IIC T4 Ga
• Electrical Characteristics:
  • Impedance: 50 Ω nominal
  • Capacitance: 95 pF/m ±10%
  • Insertion Loss: <0.3 dB at 1 MHz
• Environmental Resistance:
  • ESD Protection: 8 kV (IEC 61000-4-2)
  • Flame Rating: UL 94 V-0 (self-extinguishing)
  • Salt Spray Resistance: 1,000 hours (ASTM B117)
  • Abrasion Resistance: 1,500 cycles (ASTM D4060)

Contact Information
For inquiries or custom configurations, email sales@ubestplc.com. Our team will gladly assist with technical details or order processing.

Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
