Description
Product Description

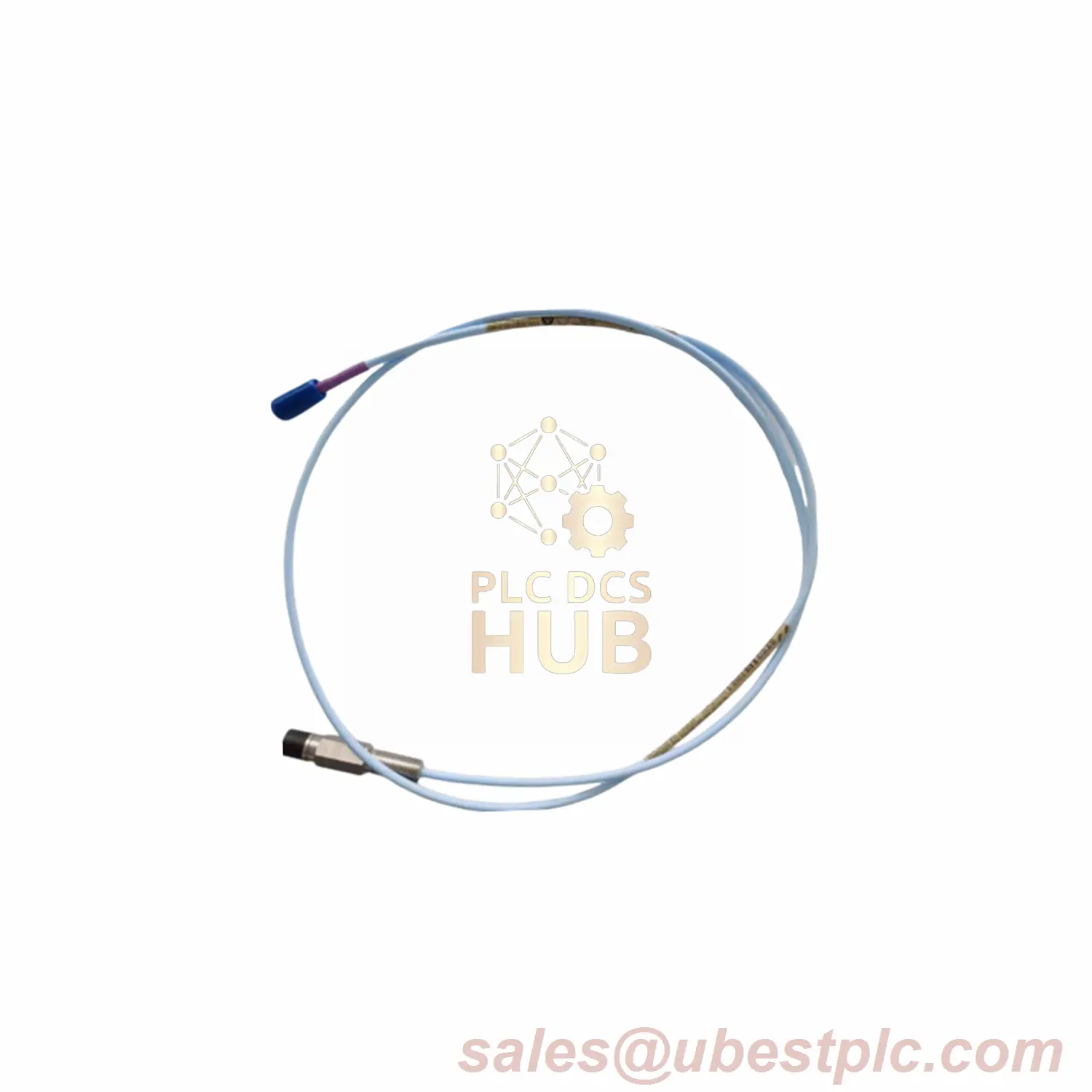

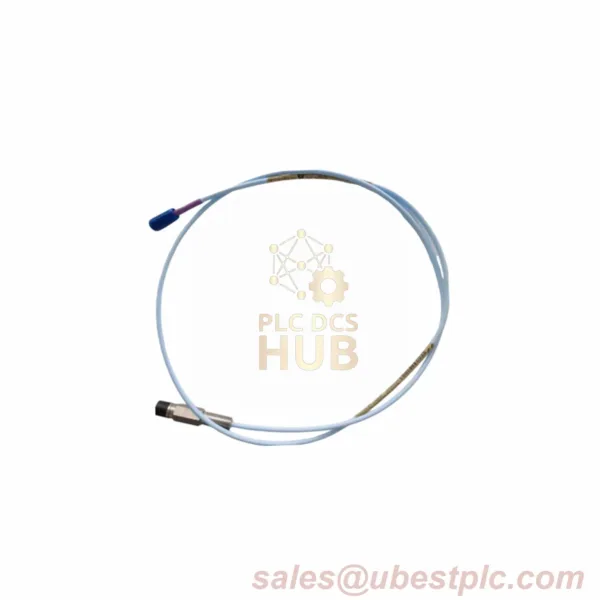

The Bently Nevada 3300 XL 8 mm Probe (Model: 330101-00-24-10-02-05) is a high-performance vibration sensor designed for industrial machinery monitoring. Featuring a rugged 3/8-24 UNF thread and PPS plastic probe tip, it ensures durability in harsh environments.
Technical Data
- Brand: Bently Nevada
- Model: 330101-00-24-10-02-05
- Suffix Details:
00 (0.0 in unthreaded length),
24 (2.4 in case length),
10 (1.0m cable),
02 (Mini ClickLoc connector),
05 (CSA/ATEX/IECEx certified) - Range: 2 mm (80 mils), linear from 0.25 mm (10 mils)
- Accuracy: ±5% (1m/5m systems), ±6.5% (9m systems)
- Output: 7.87 V/mm (200 mV/mil)
- Temp Range: -52°C to +177°C (Standard), -52°C to +260°C (Extended)
- Resistance: 7.59 Ω ±0.50 (1.0m cable)
- Cable Capacitance: 69.9 pF/m
Installation & Compatibility
Installation: Use shielded triad cable (16-24 AWG). Max field wiring: 305m (1,000 ft). Set gap to -9 Vdc (~1.27 mm) for radial vibration. Avoid temps below -34°C to prevent seal damage.
Certifications & Packaging
- Certifications: CSA, ATEX, IECEx
- Package Includes: Probe, documentation, COO (on request)
- Warranty: 12 months
- Shipping: FedEx, UPS, DHL
Real-World Application
Used in gas turbines for vibration monitoring, oil refinery pumps to prevent leaks (with FluidLoc), and power plant compressors for high-temperature resilience.
